MSI
Product Reference
Guide
287
MSI

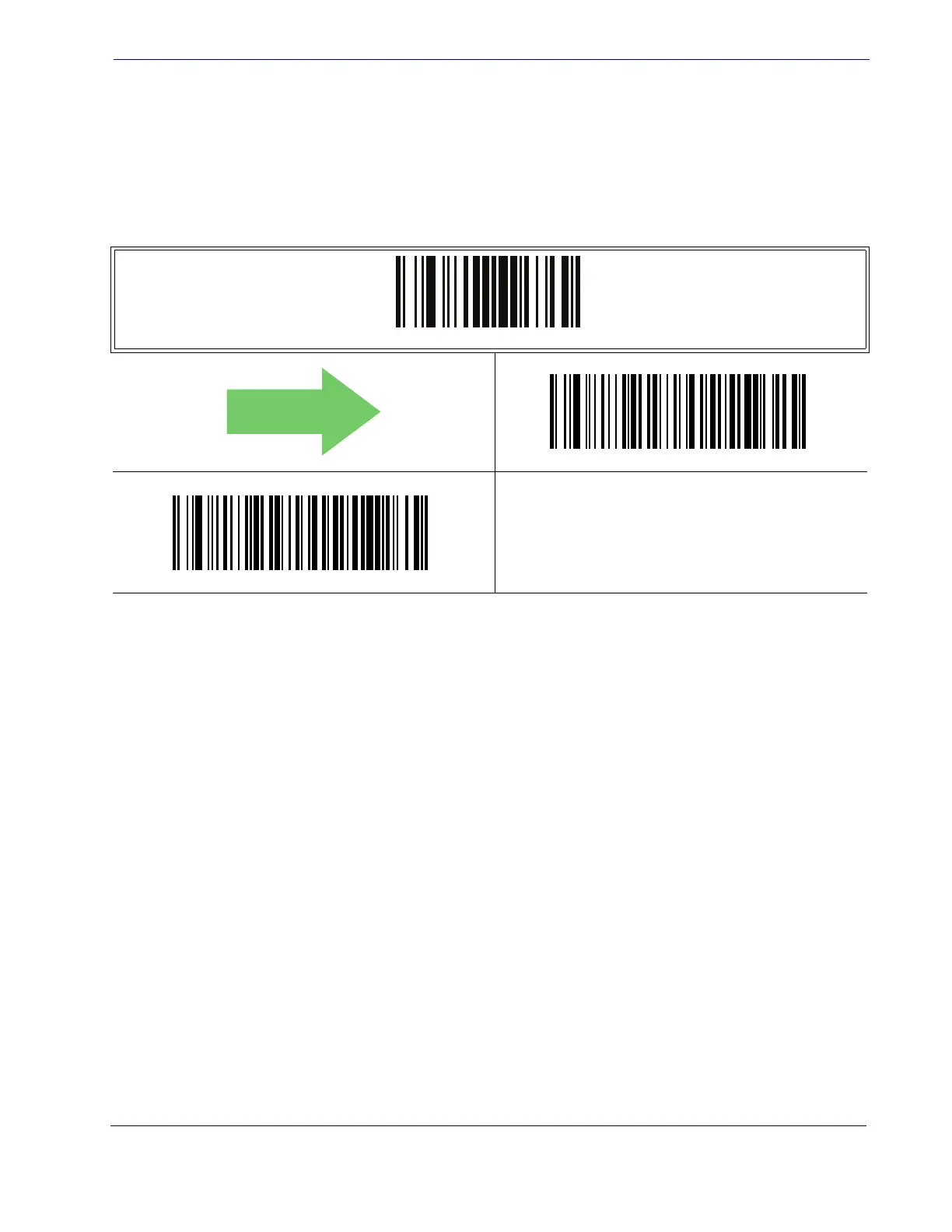

The following options apply to the MSI symbology.
MSI Enable/Disable
Enables/Disables ability of re
ader to decode MSI labels.
ENTER/EXIT PROGRAMMING MODE
MSI = Disable
MSI = Enable
DEF
A
UL
T
296
298
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1. Introduction
11
About this Guide
11
Manual Overview
11
Manual Conventions
12
References
12
Technical Support
13
Datalogic Website Support
13
Reseller Technical Support
13
Telephone Technical Support
13
Chapter 2. Getting Started
15
About the Reader
15
Unpacking
15
Setting up the Reader
16
Install the Interface Cable
16
Programming
17
Using the Programming Barcodes
18
Select the Interface Type
18
Configure Interface Settings
18
Configure Other Features
18
Software Version Transmission
19
Resetting the Product Configuration to Defaults
19
Chapter 3. Interfaces
21
Interface Selection
21
Configuring the Interface
21
Global Interface Features
25
Host Commands - Obey/Ignore
25
USB Suspend Mode
26
Chapter 4. General Features
27
Double Read Timeout
27
Label Gone Timeout
29
Sleep Mode Timeout
31
LED and Beeper Indicators
33
Power on Alert
33
Good Read: When to Indicate
34
Good Read Beep Type
35
Good Read Beep Frequency
36
Good Read Beep Length
36
Good Read Beep Volume
38
Good Read LED Duration
39
Scanning Features
41
Scan Mode
41
Stand Mode Triggered Timeout
43
Scanning Active Time
45
Flash on Time
47
Flash off Time
49
Stand Mode Sensitivity
51
Laser Pointer Control
52
Laser Pointer Period
53
Green Spot Duration
54
Chapter 5. RS-232 ONLY Interface
55
Introduction
55
RS-232 Standard Factory Settings
55
Baud Rate
55
Data Bits
57
Stop Bits
58
Parity
59
Handshaking Control
60
Chapter 6. RS-232/USB-Com Interfaces
61
Introduction
61
Standard Factory Settings
61
Intercharacter Delay
62
Beep on ASCII BEL
64
Beep on Not on File
64
ACK NAK Options
65
ACK Character
66
NAK Character
68
ACK NAK Timeout Value
70
ACK NAK Retry Count
72
ACK NAK Error Handling
74
Indicate Transmission Failure
75
Disable Character
76
Enable Character
78
Chapter 7. Keyboard Interface
81
Introduction
81
Standard Factory Settings
81
Scancode Tables
81
Country Mode
82
Caps Lock State
85
Numlock
85
Send Control Characters
86
Wedge Quiet Interval
87
Intercharacter Delay
89
Intercode Delay
91
USB Keyboard Speed
93
Chapter 8. USB-OEM Interface
95
Introduction
95
Standard Factory Settings
95
USB-OEM Device Usage
96
USB-OEM Interface Options
97
Chapter 9. IBM 46XX Interface
99
Introduction
99
IBM Standard Factory Settings
99
46Xx Number of Host Resets
100
Transmit Labels in Code 39 Format
103
IBM 46XX Interface Options
104
Chapter 10. Wand Emulation Interface
105
Introduction
105
Wand Emulation Standard Factory Settings
105
Wand Idle State
105
Wand Polarity
106
Wand Signal Speed
107
Label Symbology Conversion
108
Transmit Noise
109
Chapter 11. Data Editing
111
Data Editing Overview
111
Please Keep in Mind
112
Global Prefix/Suffix
112
Example: Setting a Prefix
112
Global AIM ID
114
Gs1-128 Aim ID
116
Label ID
117
Label ID: Pre-Loaded Sets
117
Label ID: Set Individually Per Symbology
120
Label ID Control
122
Label ID Symbology Selection
123
Case Conversion
131
Character Conversion
131
Chapter 12. Symbologies
133
Introduction
133
1D Symbologies
133
Standard Factory Settings for Symbologies
133
Disable All Symbologies
134
Coupon Control
135
Upc-A
136
UPC-A Enable/Disable
136
UPC-A Check Character Transmission
136
Expand UPC-A to EAN-13
137
UPC-A Number System Character Transmission
137
In-Store Minimum Reads
138
Upc-E
139
UPC-E Enable/Disable
139
UPC-E Check Character Transmission
139
Expand UPC-E to EAN-13
140
Expand UPC-E to UPC-A
140
UPC-E Number System Character Transmission
141
UPC-E Minimum Reads
142
GTIN Formatting
143
Ean 13
144
EAN 13 Enable/Disable
144
EAN 13 Check Character Transmission
144
EAN-13 Flag 1 Character
145
EAN-13 ISBN Conversion
146
ISSN Enable/Disable
146
EAN 13 Minimum Reads
147
Ean 8
148
EAN 8 Enable/Disable
148
EAN 8 Check Character Transmission
148
Expand EAN 8 to EAN 13
149
EAN 8 Minimum Reads
150
UPC/EAN Global Settings
151
UPC/EAN Decoding Level
151
UPC/EAN Correlation
153
UPC/EAN Reconstruction
153
UPC/EAN Price Weight Check
154
UPC-A Minimum Reads
155
Add-Ons
156
Optional Add-Ons
156
Optional Add-On Timer
158
Optional GS1-128 Add-On Timer
161
P2 Add-Ons Minimum Reads
164
P5 Add-Ons Minimum Reads
165
GS1-128 Add-Ons Minimum Reads
166
GS1 Databar TM Omnidirectional
167
GS1 Databar Omnidirectional Enable/Disable
167
GS1 Databar Omnidirectional GS1-128 Emulation
167
GS1 Databar Omnidirectional Minimum Reads
168
GS1 Databar TM Expanded
169
GS1 Databar Expanded Enable/Disable
169
GS1 Databar Expanded GS1-128 Emulation
169
GS1 Databar Expanded Minimum Reads
170
GS1 Databar Expanded Length Control
171
GS1 Databar Expanded Set Length 1
172
GS1 Databar Expanded Set Length 2
174
GS1 Databar TM Limited
176
GS1 Databar Limited Enable/Disable
176
GS1 Databar Limited GS1-128 Emulation
176
GS1 Databar Limited Minimum Reads
177
Code 39
178
Code 39 Enable/Disable
178
Code 39 Check Character Calculation
179
Code 39 Check Character Transmission
180
Code 39 Start/Stop Character Transmission
180
Code 39 Full ASCII
181
Code 39 Quiet Zones
182
Code 39 Minimum Reads
183
Code 39 Decoding Level
184
Code 39 Length Control
186
Code 39 Set Length 1
187
Code 39 Set Length 2
189
Code 39 Interdigit Ratio
191
Code 39 Character Correlation
193
Code 39 Stitching
194
Code 32 (Italian Pharmaceutical)
195
Code 32 Enable/Disable
195
Code 32 Feature Setting Exceptions
195
Code 32 Check Character Transmission
196
Code 32 Start/Stop Character Transmission
196
Code 39 CIP (French Pharmaceutical)
197
Code 39 CIP Enable/Disable
197
Code 128
197
Code 128 Enable/Disable
197
Expand Code 128 to Code 39
198
Code 128 Check Character Transmission
198
Code 128 Function Character Transmission
199
Code 128 Sub-Code Change Transmission
199
Code 128 Quiet Zones
200
Code 128 Minimum Reads
201
Code 128 Decoding Level
202
Code 128 Length Control
204
Code 128 Set Length 1
205
Code 128 Set Length 2
207
Code 128 Character Correlation
209
Code 128 Stitching
210
Gs1-128
211
GS1-128 Enable
211
Interleaved 2 of 5 (I 2 of 5)
212
I 2 of 5 Enable/Disable
212
I 2 of 5 Check Character Calculation
213
I 2 of 5 Check Character Transmission
214
I 2 of 5 Minimum Reads
215
Of 5 Decoding Level
216
I 2 of 5 Length Control
218
I 2 of 5 Set Length 1
219
I 2 of 5 Set Length 2
221
I 2 of 5 Character Correlation
223
I 2 of 5 Stitching
224
Interleaved 2 of 5 CIP HR
225
Interleaved 2 of 5 CIP HR Enable/Disable
225
Datalogic 2 of 5
225
Datalogic 2 of 5 Enable/Disable
225
Datalogic 2 of 5 Check Character Calculation
226
Datalogic 2 of 5 Minimum Reads
227
Datalogic 2 of 5 Decoding Level
227
Datalogic 2 of 5 Length Control
228
Datalogic 2 of 5 Set Length 1
229
Datalogic 2 of 5 Set Length 2
231
Datalogic 2 of 5 Interdigit Maximum Ratio
233
Datalogic 2 of 5 Character Correlation
235
Datalogic 2 of 5 Stitching
236
Codabar
237
Codabar Enable/Disable
237
Codabar Check Character Calculation
238
Codabar Check Character Transmission
239
Codabar Start/Stop Character Transmission
239
Codabar Start/Stop Character Set
240
Codabar Start/Stop Character Match
241
Codabar Quiet Zones
242
Codabar Minimum Reads
243
Codabar Decoding Level
244
Codabar Length Control
246
Codabar Set Length 1
247
Codabar Set Length 2
249
Codabar Interdigit Ratio
251
Codabar Character Correlation
253
Codabar Stitching
254
ABC Codabar
255
ABC Codabar Enable/Disable
255
ABC Codabar Concatenation Mode
255
ABC Codabar Dynamic Concatenation Timeout
256
ABC Codabar Force Concatenation
257
Code 11
258
Code 11 Enable/Disable
258
Code 11 Check Character Calculation
259
Code 11 Check Character Transmission
260
Code 11 Minimum Reads
261
Code 11 Length Control
262
Code 11 Set Length 1
263
Code 11 Set Length 2
265
Code 11 Interdigit Ratio
267
Code 11 Decoding Level
269
Code 11 Character Correlation
271
Code 11 Stitching
272
Standard 2 of 5
273
Standard 2 of 5 Enable/Disable
273
Standard 2 of 5 Check Character Calculation
274
Standard 2 of 5 Check Character Transmission
274
Standard 2 of 5 Minimum Reads
275
Standard 2 of 5 Decoding Level
275
Standard 2 of 5 Length Control
276
Standard 2 of 5 Set Length 1
277
Standard 2 of 5 Set Length 2
279
Standard 2 of 5 Character Correlation
281
Standard 2 of 5 Stitching
282
Industrial 2 of 5
283
Industrial 2 of 5 Enable/Disable
283
Industrial 2 of 5 Check Character Calculation
283
Industrial 2 of 5 Check Character Transmission
284
Industrial 2 of 5 Length Control
285
Industrial 2 of 5 Set Length 1
286
Industrial 2 of 5 Set Length 2
288
Industrial 2 of 5 Minimum Reads
290
Industrial 2 of 5 Stitching
291
Industrial 2 of 5 Character Correlation
291
Iata
292
IATA Enable/Disable
292
IATA Check Character Transmission
292
Isbt 128
293
ISBT 128 Concatenation
293
ISBT 128 Concatenation Mode
294
ISBT 128 Dynamic Concatenation Timeout
295
ISBT 128 Force Concatenation
296
ISBT 128 Advanced Concatenation Options
296
Msi
297
MSI Enable/Disable
297
MSI Check Character Calculation
298
MSI Check Character Transmission
299
MSI Length Control
299
MSI Set Length 1
300
MSI Set Length 2
302
MSI Minimum Reads
304
MSI Decoding Level
305
Plessey
307
Plessey Enable/Disable
307
Plessey Check Character Calculation
308
Plessey Check Character Transmission
309
Plessey Length Control
309
Plessey Set Length 1
310
Plessey Set Length 2
312
Plessey Minimum Reads
314
Plessey Decoding Level
315
Plessey Stitching
316
Plessey Character Correlation
317
Code 93
317
Code 93 Enable/Disable
317
Code 93 Check Character Calculation
318
Code 93 Check Character Transmission
319
Code 93 Length Control
319
Code 93 Set Length 1
320
Code 93 Set Length 2
322
Code 93 Minimum Reads
324
Code 93 Decoding Level
325
Code 93 Quiet Zones
327
Code 93 Stitching
328
Code 93 Character Correlation
328
Codablock F
329
Codablock F Enable/Disable
329
Codablock F EAN Enable/Disable
330
Codablock F AIM Check
330
Codablock F Length Control
331
Codablock F Set Length 1
332
Codablock F Set Length 2
334
Code 4
336
Code 4 Enable/Disable
336
Code 4 Check Character Transmission
337
Code 4 Hex to Decimal Conversion
337
Code 5
338
Code 5 Enable/Disable
338
Code 5 Check Character Transmission
339
Code 5 Hex to Decimal Conversion
339
Code 4 and Code 5 Common Configuration Items
340
Code 4 and 5 Decoding Level
340
Code 4 and Code 5 Minimum Reads
342
Follett 2 of 5
343
Follett 2 of 5 Enable/Disable
343
Appendix A. Technical Specifications
345
Standard Cable Pinouts
347
Appendix B. Standard Defaults
349
Default Exceptions
360
Appendix C. LED and Beeper Indications
363
LED and Beeper Indications
364
Pd7100 Corded
364
Error Codes
365
Appendix D Sample Barcodes
367
Upc-A
367
Interleaved 2 of 5
367
Codabar
368
Code 11
368
GS1 Databar (RSS)
369
GS1 Databar-14
369
Appendix E Keypad
371
Appendix F. Scancode Tables
375
Control Character Emulation
375
Interface Type PC at PS/2 or USB-Keyboard
376
Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode
378
Digital Interface
380
Ibm31Xx 102-Key
382
Ibm Xt
384
Microsoft Windows Codepage 1252
386
Index
389
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Datalogic Powerscan PD7100 and is the answer not in the manual?
Ask a question
Datalogic Powerscan PD7100 Specifications
General
Brand
Datalogic
Model
Powerscan PD7100
Category
Barcode Reader
Language
English
Related product manuals
Datalogic PowerScan PD9530
362 pages
Datalogic PowerScan PD9130
362 pages
Datalogic PowerScan PD9600
411 pages
Datalogic PowerScan PD8300
3 pages
Datalogic PowerScan PD8530
160 pages
Datalogic PowerScan PD953X
360 pages
Datalogic PowerScan PD9531-AR
362 pages
Datalogic PowerScan PD9630-SR
360 pages
Datalogic PowerScan PD9630-HP
360 pages
Datalogic PowerScan PD96 Series
360 pages
Datalogic PowerScan Series
411 pages
Datalogic PowerScan PBT9501
48 pages
Need help?
General
To Next Page
