RS-232 ONLY Interface

48 PowerScan

PD7100 Corded

Stop Bits

The stop bit(s) at the end of each transmitted character marks the end of transmission

of one character and prepares the receiving device for the next character in the serial

data stream. The number of stop bits selected (one or two) depends on the number

the receiving terminal is programmed to accommodate. Set the number of stop bits

to match host device requirements.

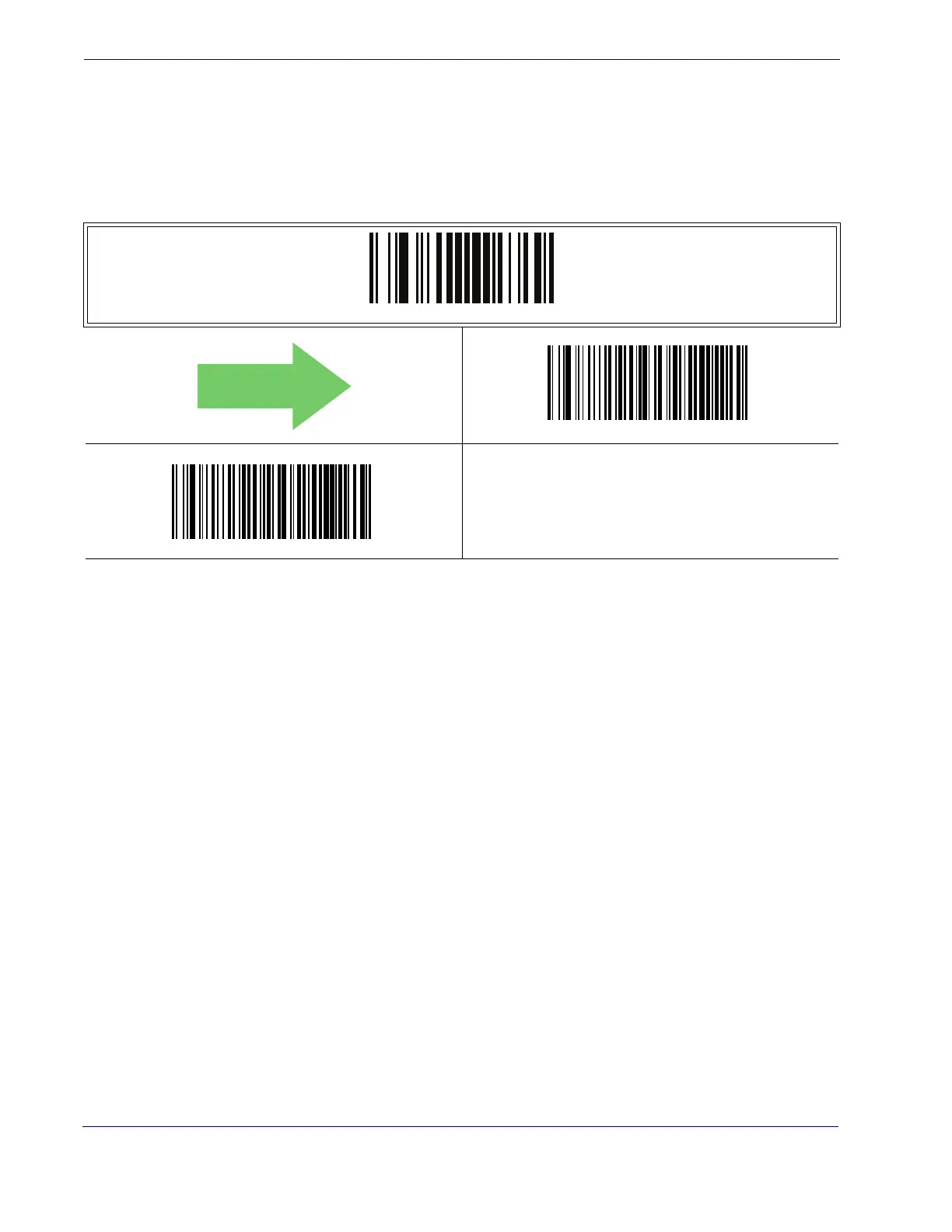

ENTER/EXIT PROGRAMMING MODE

1 Stop Bit

2 Stop Bits

DEFAULT

Default Chapter3
- Table of Contents3
