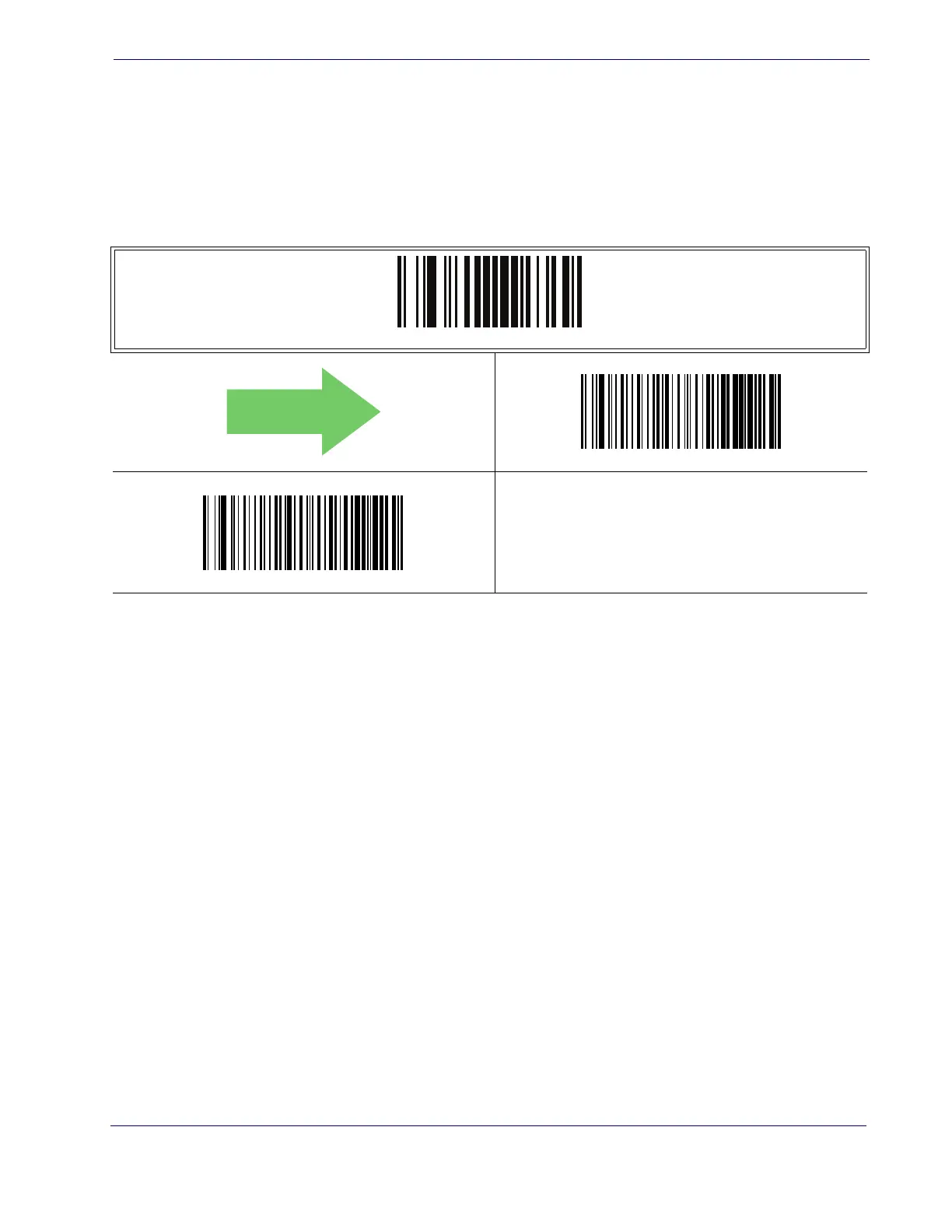

Code 39

Product Reference Guide 171

Code 39 — cont.

Code 39 Full ASCII

In Code 39 decoding, this enables/disables the translation of Code 39 characters to Code

39 full-ASCII characters.

ENTER/EXIT PROGRAMMING MODE

Code 39 Full ASCII = Disable

Code 39 Full ASCII = Enable

DEFAULT

Default Chapter3
