Symbologies
124
PowerScan
TM
PD7100 Corded

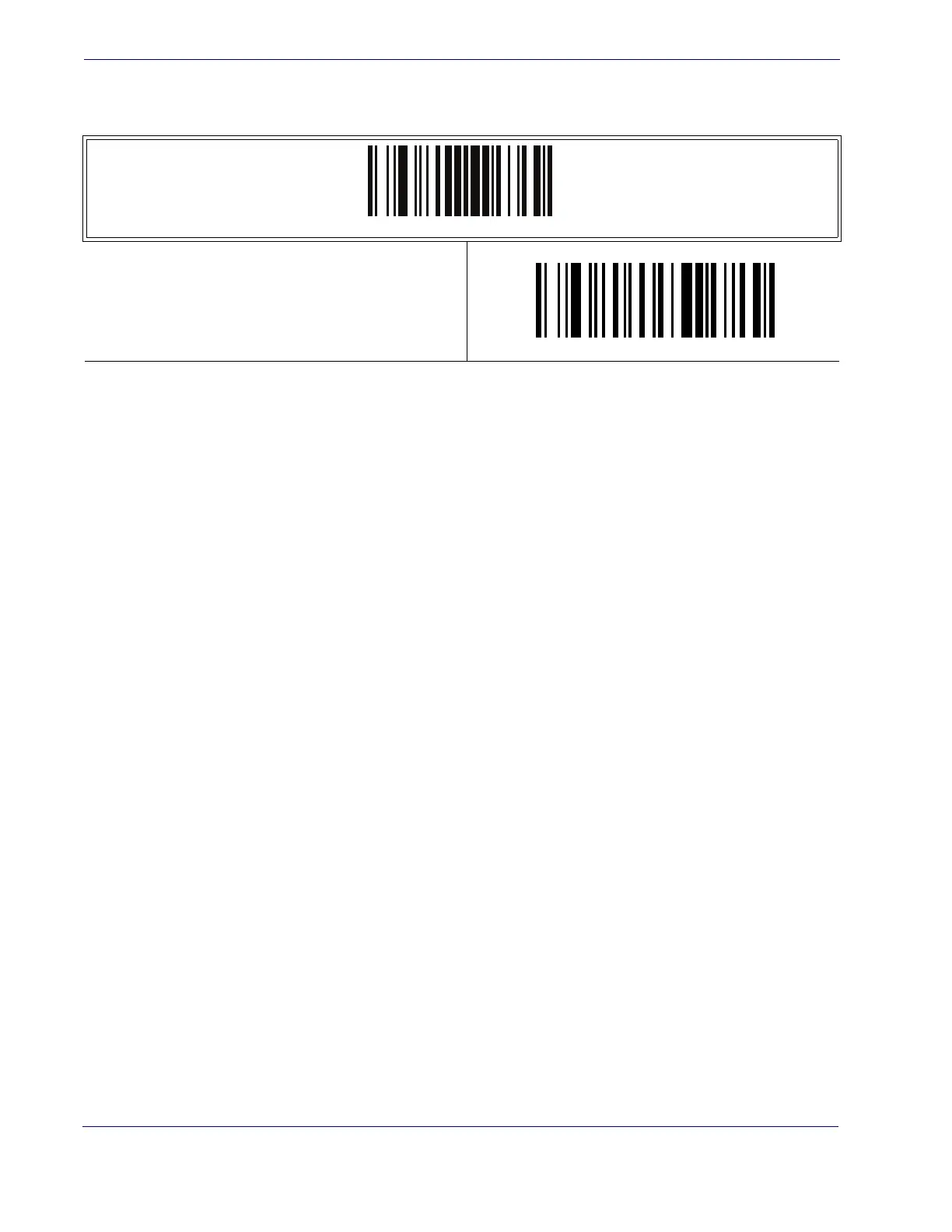

Disable All Symbologies
Scan this label to disable all symbologies.
ENTER/EXIT PROGRAMMING MODE
Disable all symbologies
133
135
