LED and Beeper Indicators

Product Reference Guide 25

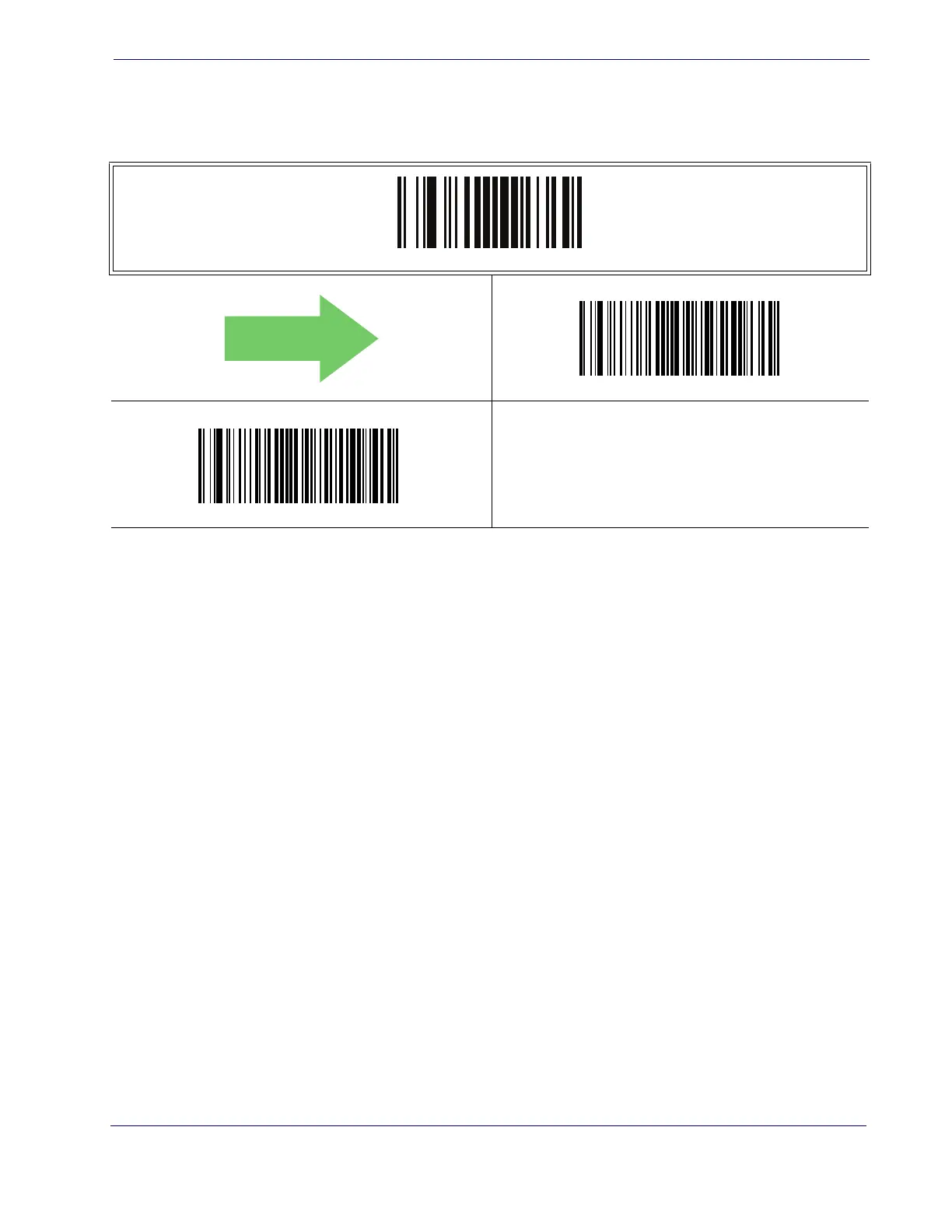

Good Read Beep Type

Specifies whether the good read beep has a mono or bitonal beep sound.

ENTER/EXIT PROGRAMMING MODE

Good Read Beep Type = Mono

Good Read Beep Type = Bitonal

DEFAULT

Default Chapter3
- Table of Contents3
Chapter 1. Introduction11
- About this Guide11
- Manual Overview11
- Manual Conventions12
- References12
- Technical Support13
Chapter 2. Getting Started15
- About the Reader15
- Unpacking15
- Setting up the Reader16
- Resetting the Product Configuration to Defaults19
Chapter 3. Interfaces21
- Interface Selection21
- Configuring the Interface21
- Global Interface Features25
  - Host Commands - Obey/Ignore25
  - USB Suspend Mode26
Chapter 4. General Features27
- Double Read Timeout27
- Label Gone Timeout29
- Sleep Mode Timeout31
- LED and Beeper Indicators33
- Scanning Features41
- Flash on Time47
- Flash off Time49
- Stand Mode Sensitivity51
- Laser Pointer Control52
- Laser Pointer Period53
- Green Spot Duration54
Chapter 5. RS-232 ONLY Interface55
- Introduction55
- RS-232 Standard Factory Settings55
- Baud Rate55
- Data Bits57
- Stop Bits58
- Parity59
- Handshaking Control60
Chapter 6. RS-232/USB-Com Interfaces61
- Introduction61
- Standard Factory Settings61
- Intercharacter Delay62
- Beep on ASCII BEL64
- Beep on Not on File64
- ACK NAK Options65
- Indicate Transmission Failure75
- Disable Character76
- Enable Character78
Chapter 7. Keyboard Interface81
- Introduction81
- Standard Factory Settings81
- Scancode Tables81
- Country Mode82
- Caps Lock State85
- Numlock85
- Send Control Characters86
- Wedge Quiet Interval87
- Intercharacter Delay89
- Intercode Delay91
- USB Keyboard Speed93
Chapter 8. USB-OEM Interface95
- Introduction95
- Standard Factory Settings95
- USB-OEM Device Usage96
- USB-OEM Interface Options97
Chapter 9. IBM 46XX Interface99
- Introduction99
- IBM Standard Factory Settings99
- 46Xx Number of Host Resets100
- Transmit Labels in Code 39 Format103
- IBM 46XX Interface Options104
Chapter 10. Wand Emulation Interface105
- Introduction105
- Wand Emulation Standard Factory Settings105
- Wand Idle State105
- Wand Polarity106
- Wand Signal Speed107
- Label Symbology Conversion108
- Transmit Noise109
Chapter 11. Data Editing111
- Data Editing Overview111
- Please Keep in Mind112
- Global Prefix/Suffix112
  - Example: Setting a Prefix112
- Global AIM ID114
- Gs1-128 Aim ID116
- Label ID117
- Case Conversion131
- Character Conversion131
Chapter 12. Symbologies133
- Introduction133
  - 1D Symbologies133
- Standard Factory Settings for Symbologies133
- Disable All Symbologies134
- Coupon Control135
- Upc-A136
  - UPC-A Enable/Disable136
  - UPC-A Check Character Transmission136
  - Expand UPC-A to EAN-13137
  - UPC-A Number System Character Transmission137
  - In-Store Minimum Reads138
- Upc-E139
  - UPC-E Enable/Disable139
  - UPC-E Check Character Transmission139
  - Expand UPC-E to EAN-13140
  - Expand UPC-E to UPC-A140
  - UPC-E Number System Character Transmission141
  - UPC-E Minimum Reads142
- GTIN Formatting143
- Ean 13144
  - EAN 13 Enable/Disable144
  - EAN 13 Check Character Transmission144
  - EAN-13 Flag 1 Character145
  - EAN-13 ISBN Conversion146
  - ISSN Enable/Disable146
  - EAN 13 Minimum Reads147
- Ean 8148
  - EAN 8 Enable/Disable148
  - EAN 8 Check Character Transmission148
  - Expand EAN 8 to EAN 13149
  - EAN 8 Minimum Reads150
- UPC/EAN Global Settings151
  - UPC/EAN Decoding Level151
  - UPC/EAN Correlation153
  - UPC/EAN Reconstruction153
  - UPC/EAN Price Weight Check154
  - UPC-A Minimum Reads155
- Add-Ons156
  - Optional Add-Ons156
- Optional Add-On Timer158
- Optional GS1-128 Add-On Timer161
- P2 Add-Ons Minimum Reads164
- P5 Add-Ons Minimum Reads165
- GS1-128 Add-Ons Minimum Reads166
- GS1 Databar TM Omnidirectional167
  - GS1 Databar Omnidirectional Enable/Disable167
  - GS1 Databar Omnidirectional GS1-128 Emulation167
  - GS1 Databar Omnidirectional Minimum Reads168
- GS1 Databar TM Expanded169
  - GS1 Databar Expanded Enable/Disable169
  - GS1 Databar Expanded GS1-128 Emulation169
  - GS1 Databar Expanded Minimum Reads170
  - GS1 Databar Expanded Length Control171
  - GS1 Databar Expanded Set Length 1172
  - GS1 Databar Expanded Set Length 2174
- GS1 Databar TM Limited176
  - GS1 Databar Limited Enable/Disable176
  - GS1 Databar Limited GS1-128 Emulation176
  - GS1 Databar Limited Minimum Reads177
- Code 39178
  - Code 39 Enable/Disable178
  - Code 39 Check Character Calculation179
  - Code 39 Check Character Transmission180
  - Code 39 Start/Stop Character Transmission180
  - Code 39 Full ASCII181
  - Code 39 Quiet Zones182
  - Code 39 Minimum Reads183
  - Code 39 Decoding Level184
  - Code 39 Length Control186
  - Code 39 Set Length 1187
  - Code 39 Set Length 2189
  - Code 39 Interdigit Ratio191
  - Code 39 Character Correlation193
  - Code 39 Stitching194
- Code 32 (Italian Pharmaceutical)195
  - Code 32 Enable/Disable195
  - Code 32 Feature Setting Exceptions195
  - Code 32 Check Character Transmission196
  - Code 32 Start/Stop Character Transmission196
- Code 39 CIP (French Pharmaceutical)197
  - Code 39 CIP Enable/Disable197
- Code 128197
  - Code 128 Enable/Disable197
  - Expand Code 128 to Code 39198
  - Code 128 Check Character Transmission198
  - Code 128 Function Character Transmission199
  - Code 128 Sub-Code Change Transmission199
  - Code 128 Quiet Zones200
  - Code 128 Minimum Reads201
  - Code 128 Decoding Level202
  - Code 128 Length Control204
  - Code 128 Set Length 1205
  - Code 128 Set Length 2207
  - Code 128 Character Correlation209
  - Code 128 Stitching210
- Gs1-128211
  - GS1-128 Enable211
- Interleaved 2 of 5 (I 2 of 5)212
  - I 2 of 5 Enable/Disable212
  - Interleaved 2 of 5 CIP HR225
    - Interleaved 2 of 5 CIP HR Enable/Disable225
  - Datalogic 2 of 5225
  - Codabar237
  - ABC Codabar255
  - Code 11258
  - Standard 2 of 5273
  - Standard 2 of 5 Decoding Level275
  - Standard 2 of 5 Length Control276
  - Standard 2 of 5 Set Length 1277
  - Standard 2 of 5 Set Length 2279
  - Standard 2 of 5 Character Correlation281
  - Standard 2 of 5 Stitching282
- Industrial 2 of 5283
  - Industrial 2 of 5 Enable/Disable283
  - Industrial 2 of 5 Check Character Calculation283
  - Industrial 2 of 5 Check Character Transmission284
  - Industrial 2 of 5 Length Control285
  - Industrial 2 of 5 Set Length 1286
  - Industrial 2 of 5 Set Length 2288
  - Industrial 2 of 5 Minimum Reads290
  - Industrial 2 of 5 Stitching291
  - Industrial 2 of 5 Character Correlation291
- Iata292
  - IATA Enable/Disable292
  - IATA Check Character Transmission292
- Isbt 128293
  - ISBT 128 Concatenation293
  - ISBT 128 Concatenation Mode294
  - ISBT 128 Dynamic Concatenation Timeout295
  - ISBT 128 Force Concatenation296
  - ISBT 128 Advanced Concatenation Options296
- Msi297
  - MSI Enable/Disable297
  - MSI Check Character Calculation298
  - MSI Check Character Transmission299
  - MSI Length Control299
  - MSI Set Length 1300
  - MSI Set Length 2302
  - MSI Minimum Reads304
  - MSI Decoding Level305
- Plessey307
  - Plessey Enable/Disable307
  - Plessey Check Character Calculation308
  - Plessey Check Character Transmission309
  - Plessey Length Control309
  - Plessey Set Length 1310
  - Plessey Set Length 2312
  - Plessey Minimum Reads314
  - Plessey Decoding Level315
  - Plessey Stitching316
  - Plessey Character Correlation317
- Code 93317
  - Code 93 Enable/Disable317
  - Code 93 Check Character Calculation318
  - Code 93 Check Character Transmission319
  - Code 93 Length Control319
  - Code 93 Set Length 1320
  - Code 93 Set Length 2322
  - Code 93 Minimum Reads324
  - Code 93 Decoding Level325
  - Code 93 Quiet Zones327
  - Code 93 Stitching328
  - Code 93 Character Correlation328
- Codablock F329
  - Codablock F Enable/Disable329
  - Codablock F EAN Enable/Disable330
  - Code 4336
  - Code 5338
  - Code 4 and Code 5 Common Configuration Items340
    - Code 4 and 5 Decoding Level340
    - Code 4 and Code 5 Minimum Reads342
  - Follett 2 of 5343
    - Follett 2 of 5 Enable/Disable343
Appendix A. Technical Specifications345
- Standard Cable Pinouts347
Appendix B. Standard Defaults349
- Default Exceptions360
Appendix C. LED and Beeper Indications363
- LED and Beeper Indications364
  - Pd7100 Corded364
- Error Codes365
Appendix D Sample Barcodes367
- Upc-A367
- Interleaved 2 of 5367
- Codabar368
- Code 11368
- GS1 Databar (RSS)369
  - GS1 Databar-14369
Appendix E Keypad371
Appendix F. Scancode Tables375
- Control Character Emulation375
- Interface Type PC at PS/2 or USB-Keyboard376
- Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode378
- Digital Interface380
- Ibm31Xx 102-Key382
- Ibm Xt384
- Microsoft Windows Codepage 1252386
Index389
