Installing the Toner Cartridges and Imaging

Drum

Installing the Toner Cartridge

Installing the Imaging Drum

CAUTION: Before performing any of the following procedures, read and follow the safety

instructions in your Owner's Manual.

Installing the Toner Cartridge

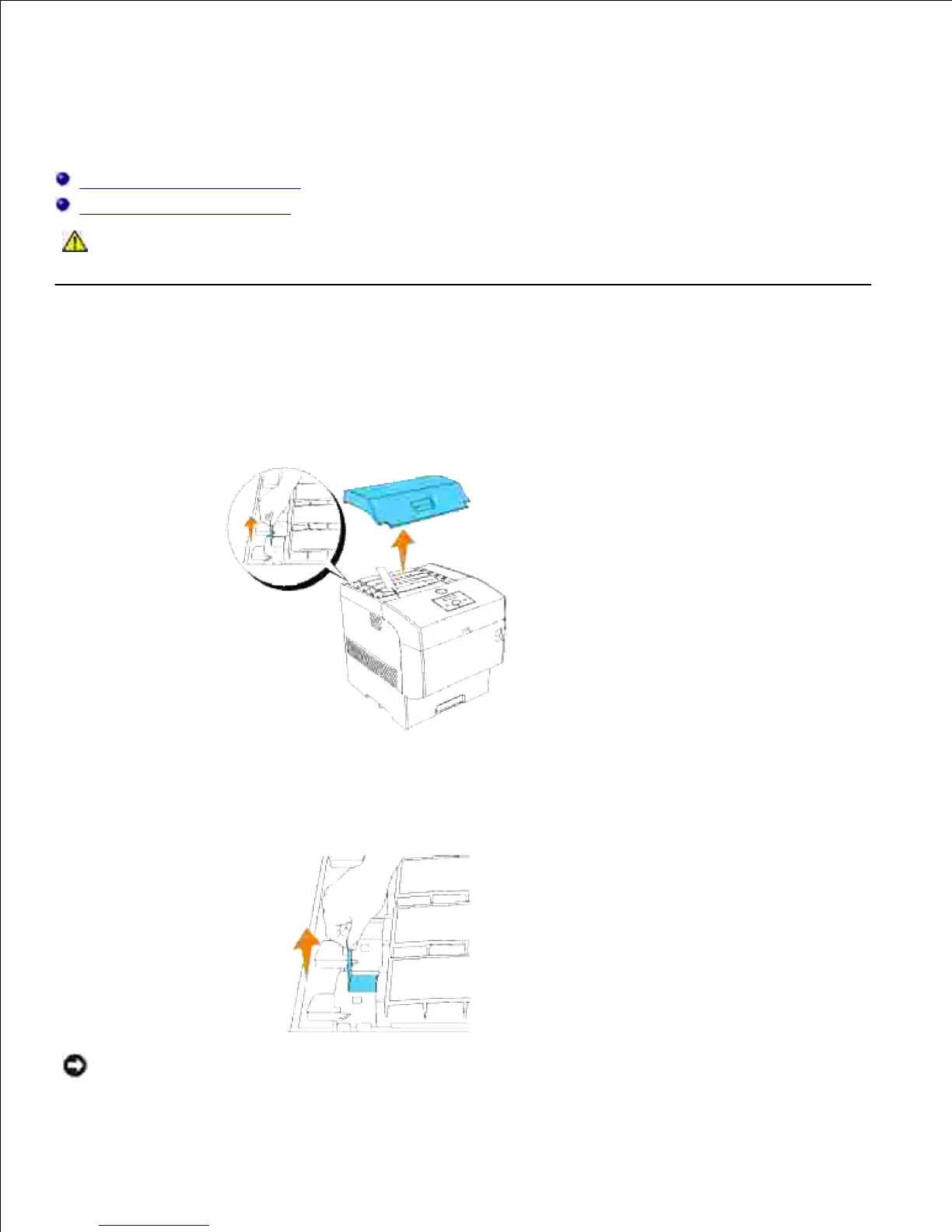

Remove the top cover.1.

Pull the toner seal for each toner cartridge straight up to remove it.2.

NOTICE: Pull the toner seal straight up. Pulling the toner seal diagonally may tear the seal.
