Dell D03T Service Manual

Steps

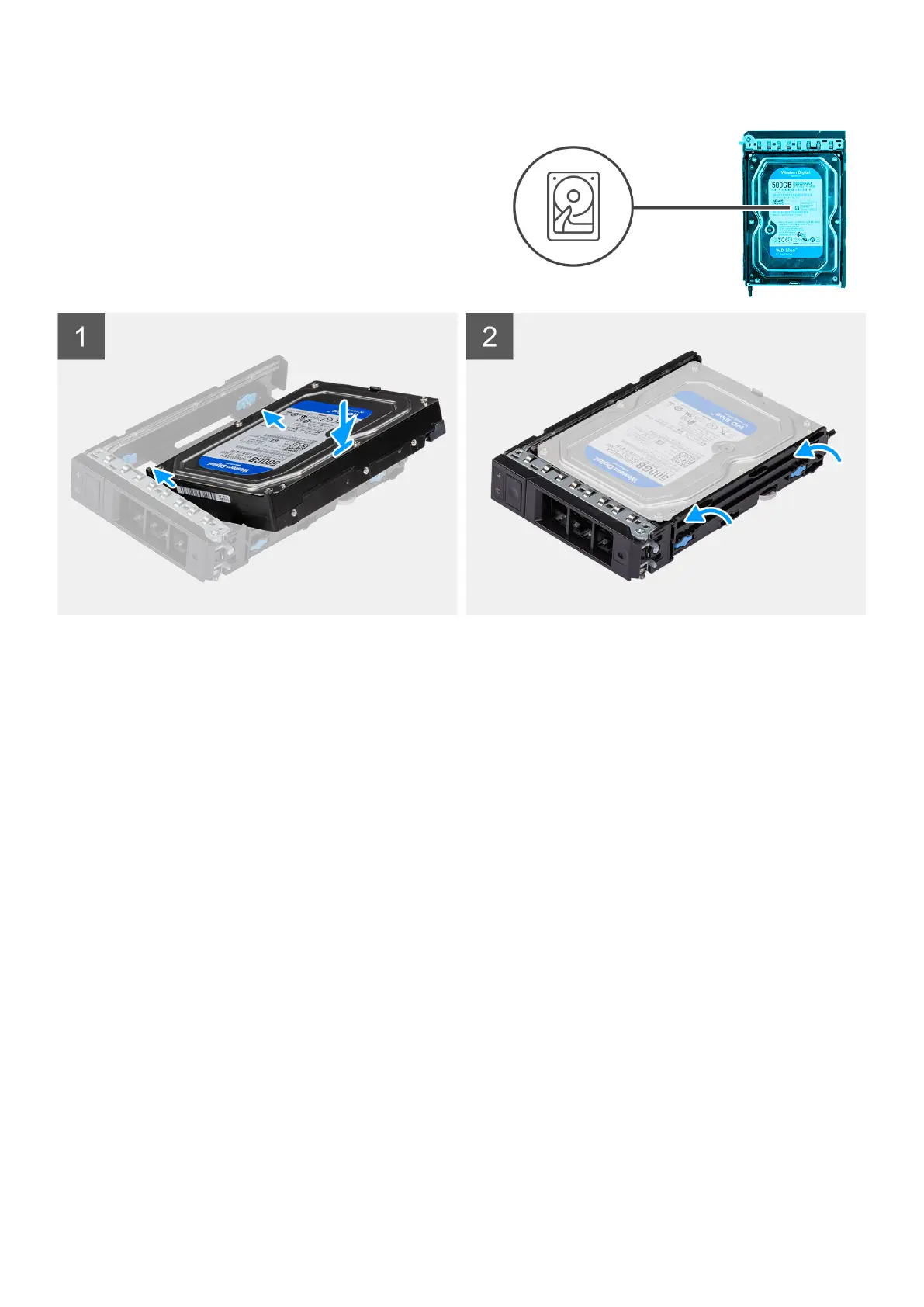

1. Place the hard drive into the external hard-drive bracket and align the pins on the bracket with the slots on the hard drive.
2. Snap the hard-drive into the external hard-drive bracket.
Next steps
1. Install the hard-drive assembly.
2. Follow the procedure in After working inside your computer.
Removing a 2.5-inch hard-disk drive from a hard-drive assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the hard-drive assembly
About this task
The following images indicate the location of a 2.5-inch hard-drive in a hard-drive assembly and provide a visual representation
of the removal procedure.
Removing and installing components
23
