Steps
1. Locate the position of rubber grommets.
2. Gently pull the rubber grommets to release the fan from the fan cage.
3. Remove the fan from the fan cage.
Installing the front fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

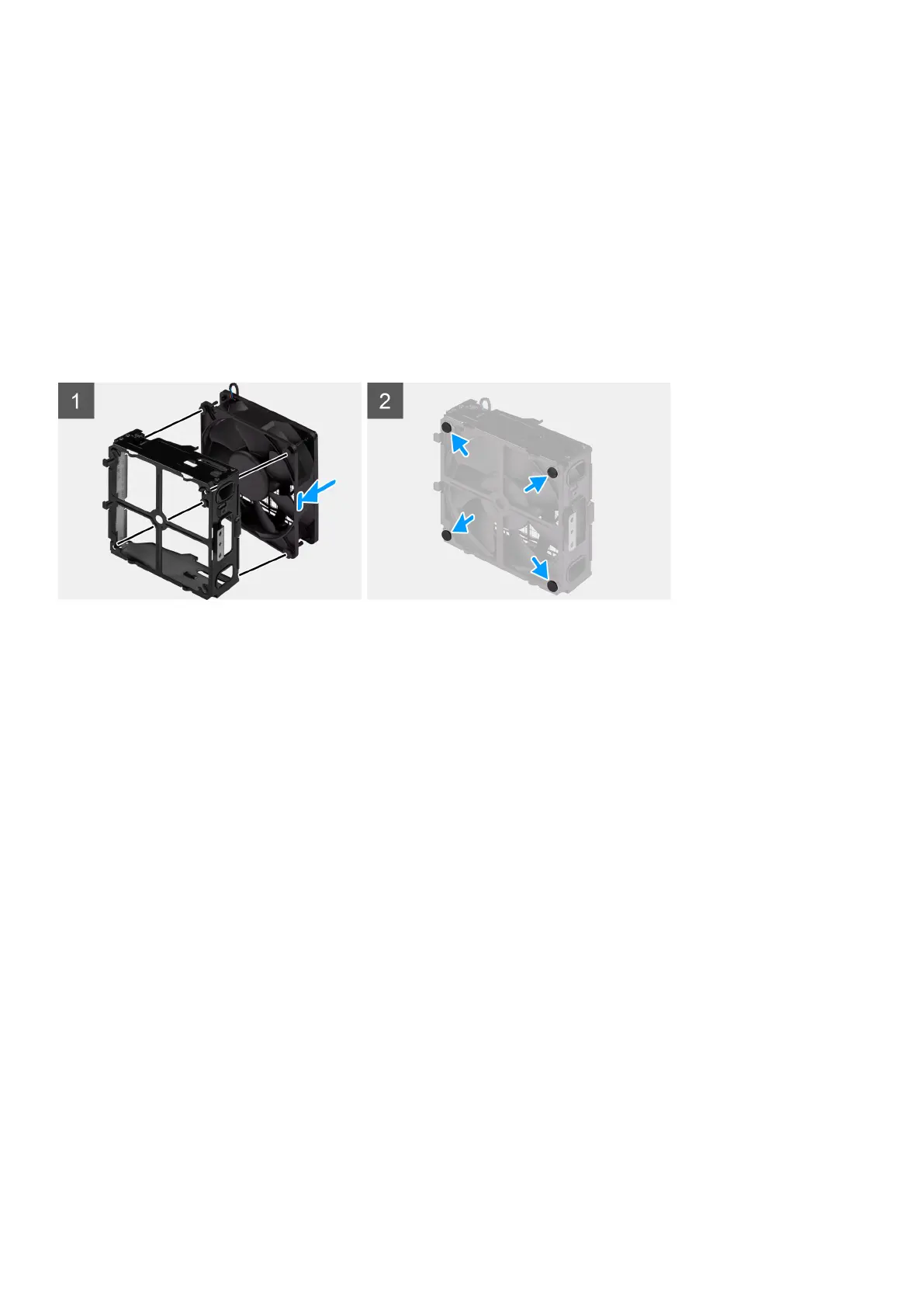

The following images indicate the location of the front fan and provide a visual representation of the installation procedure.
Steps
1. Insert the rubber grommets on the fan cage.
2. Align the slots on the fan with the rubber grommets on the fan cage.
3. Route the rubber grommets through the slots on the fan and pull the rubber grommets until the fan snaps into position.
Next steps
1. Install the front-fan assembly.
2. Follow the procedure in After working inside your computer.
Installing the front-fan assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the front-fan assembly and provide a visual representation of the installation
procedure.
Removing and installing components
39
