Dell D03T Service Manual

Steps

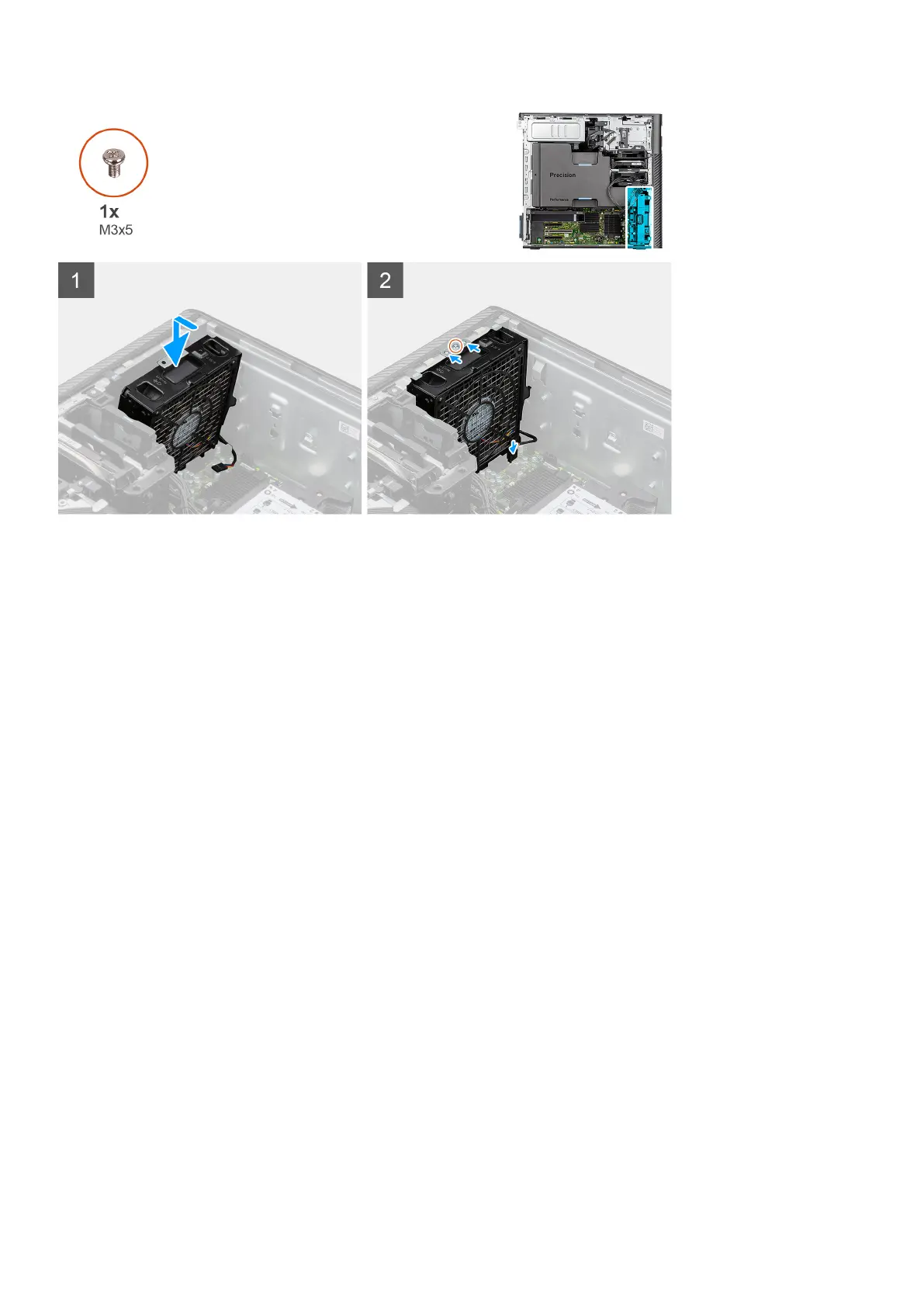

1. Align the tabs on the fan assembly with the slots on the chassis.
2. Insert the fan assembly at an angle into the slot in the chassis.
3. Install the single (M3x5) screw to secure the fan assembly to the chassis.
4. Connect the fan cable to the connector on the system board.
Next steps
1. Install the PCIe holder.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
3.5-inch hard-drive assembly
Removing the 3.5-inch hard-drive assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
About this task
The following images indicate the location of the 3.5-inch hard-drive assembly and provide a visual representation of the
removal procedure.
40
Removing and installing components
