Dell D03T Service Manual

Steps

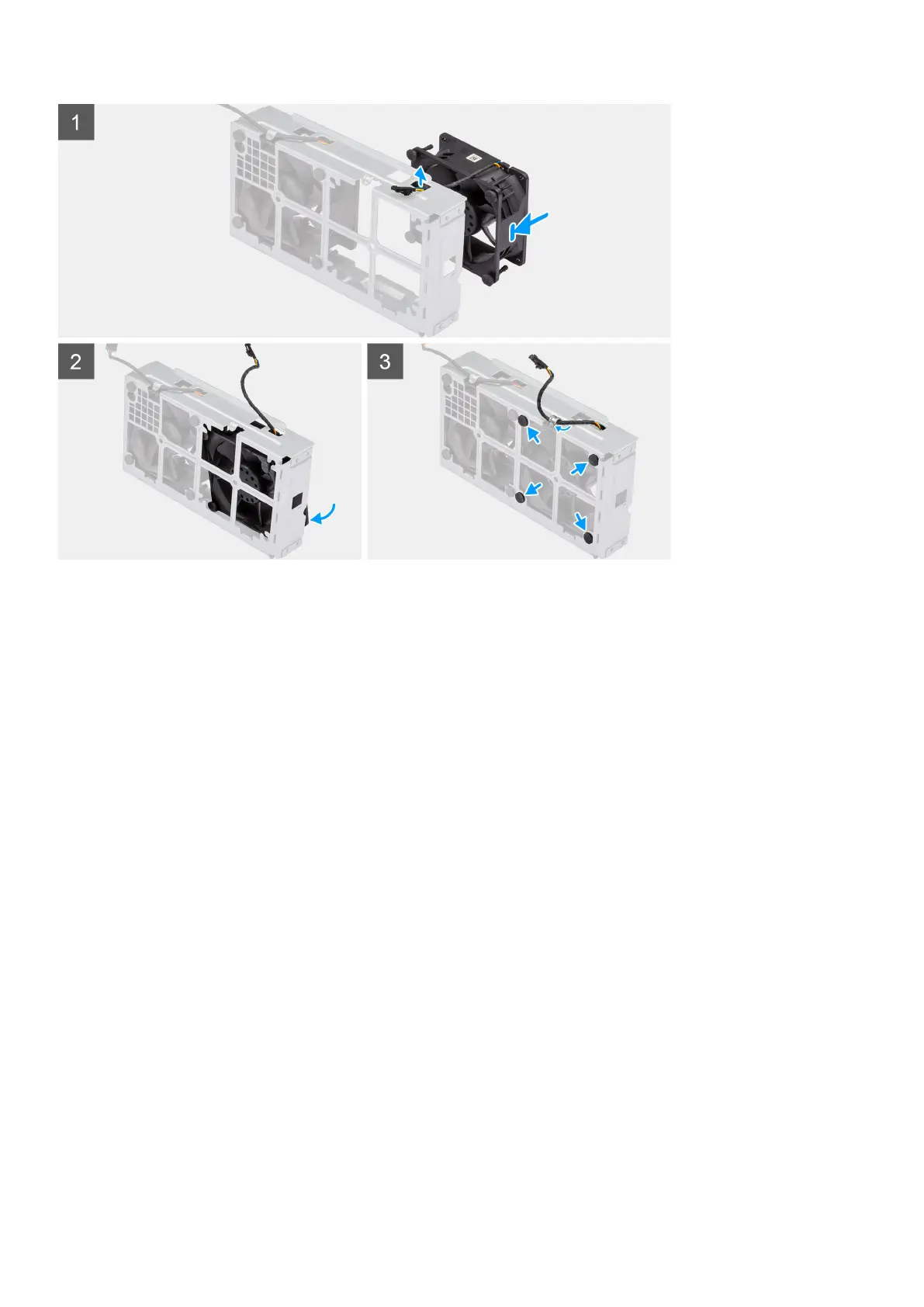

1. Route the fan cable through the slot on the fan cage.
2. Place the fan inside the fan cage.
3. Insert the rubber grommets on the fan cage.
4. Align the slots on the fan with the rubber grommets on the fan cage.
5. Route the rubber grommets through the slots on the fan and pull the rubber grommets until the fan snaps into position.
Next steps
1. Install the rear-fan assembly.
2. Follow the procedure in After working inside your computer.
Installing the rear-fan assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the rear-fan assembly and provide a visual representation of the installation
procedure.
Removing and installing components
57
