Steps

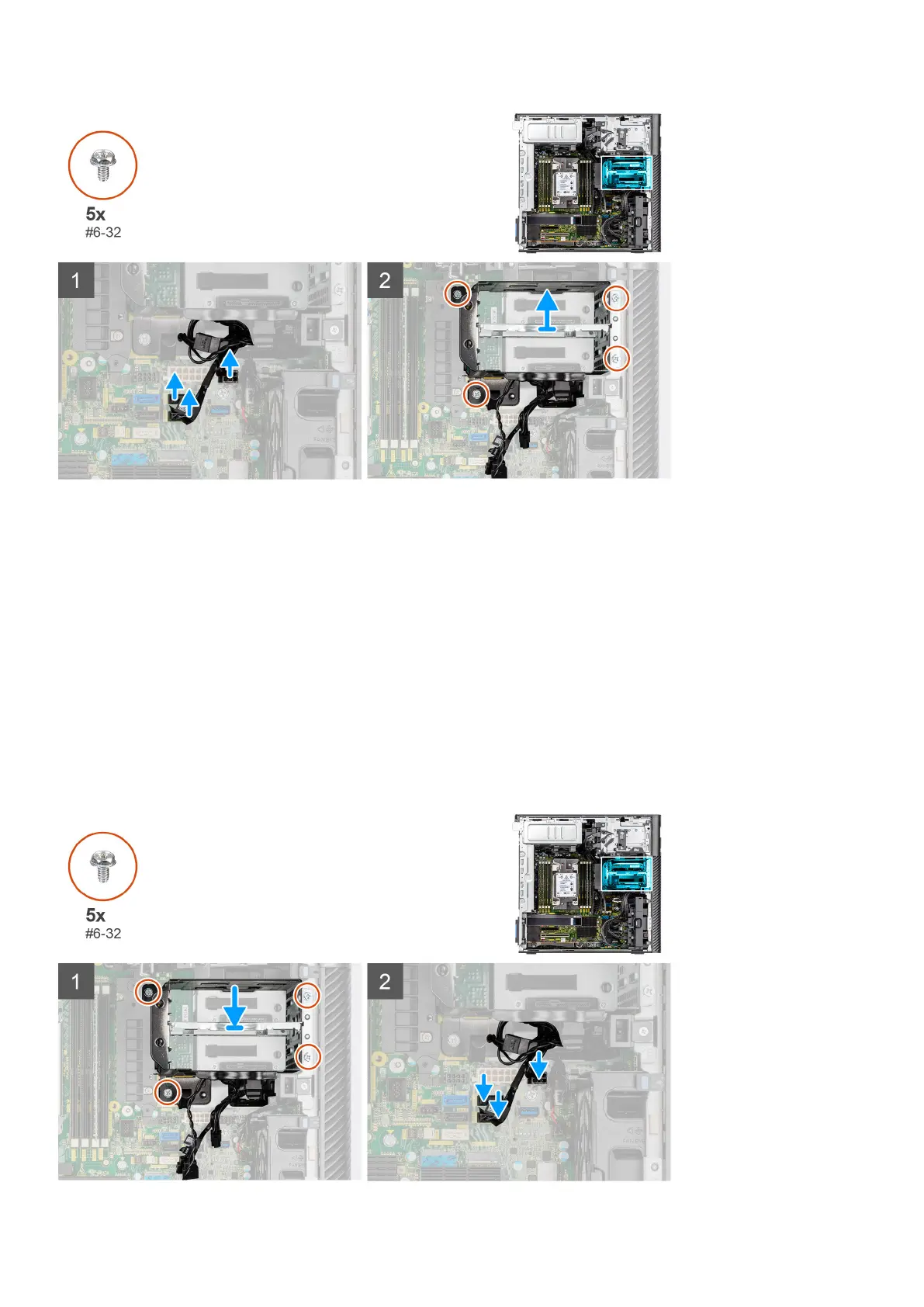

1. Disconnect the SATA power-cables and SATA data-cables from the connectors on the system board.
2. Remove the five (#6-32) screws from the hard-drive cage.
3. Slide and remove the hard-drive cage out of the computer.
Installing the internal hard-drive cage
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the internal hard-drive cage and provide a visual representation of the installation
procedure.
Removing and installing components
53
