Steps
1. Insert the intrusion switch into its slot in the chassis and secure it into place with the single (M3) screw.
2. Route the intruder cable through the routing guides on the system board.
3. Connect the intrusion-switch cable to the connector on the system board.
Next steps
1. Install the air shroud.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
Voltage-regulator heat sink
Removing the voltage-regulator heat sink - Location 1
Prerequisites
1. Follow the procedure in Before working inside your computer.
WARNING: The heat sink may become hot during normal operation. Allow sufficient time for the heat sink to
cool before you touch it.
CAUTION: For maximum cooling of the processor, do not touch the heat transfer areas on the heat sink. The
oils in your skin can reduce the heat transfer capability of the thermal grease.
2. Remove the side cover.
3. remove the air shroud.
About this task

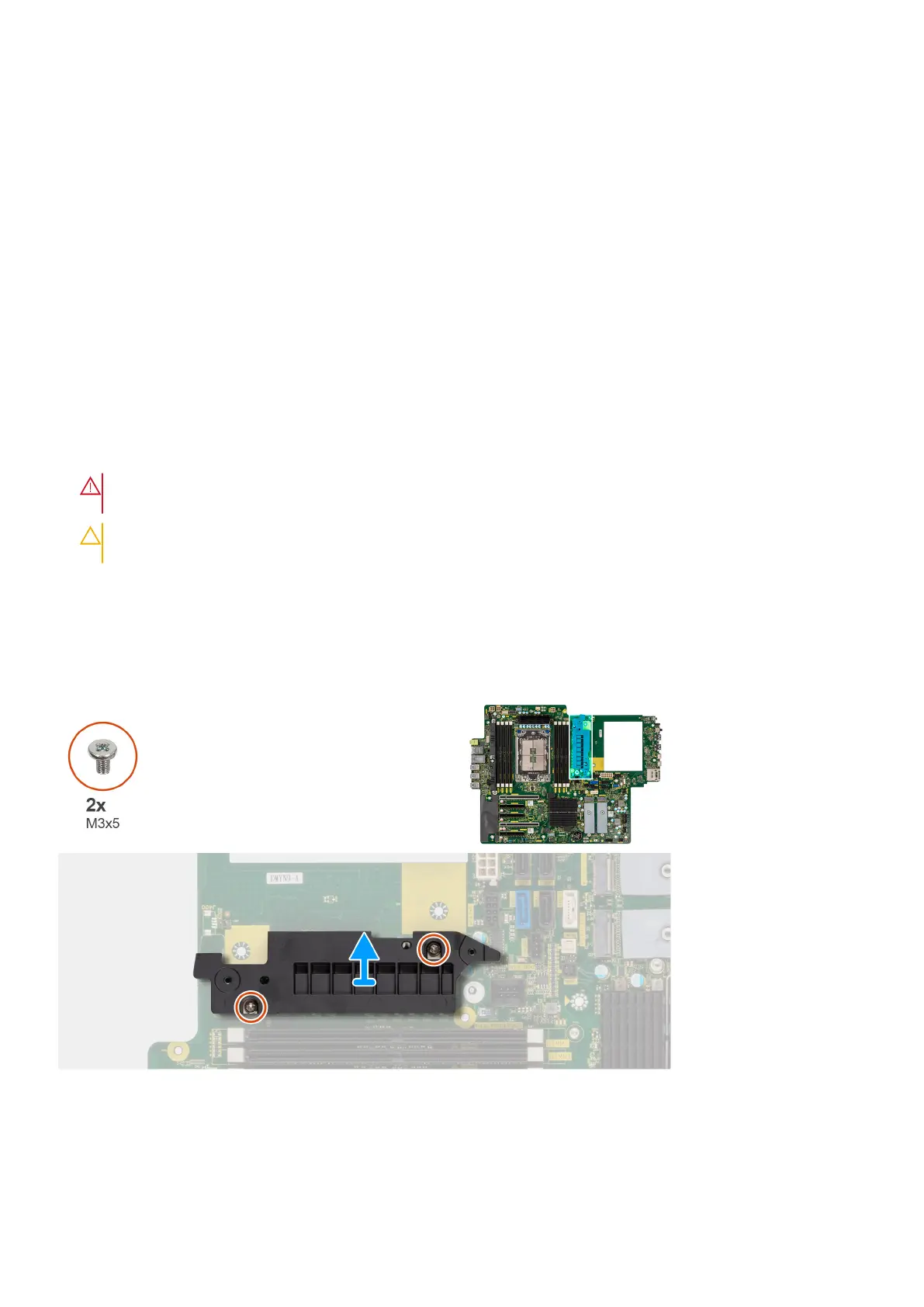

The following image indicates the location of the voltage-regulator heat sink and provides a visual representation of the removal
procedure.
Steps
1. Remove the two (M3x5) screws that secure the voltage-regulator heat sink to the system board.
2. Lift the heat sink off the system board.
Removing and installing components
85
