Steps

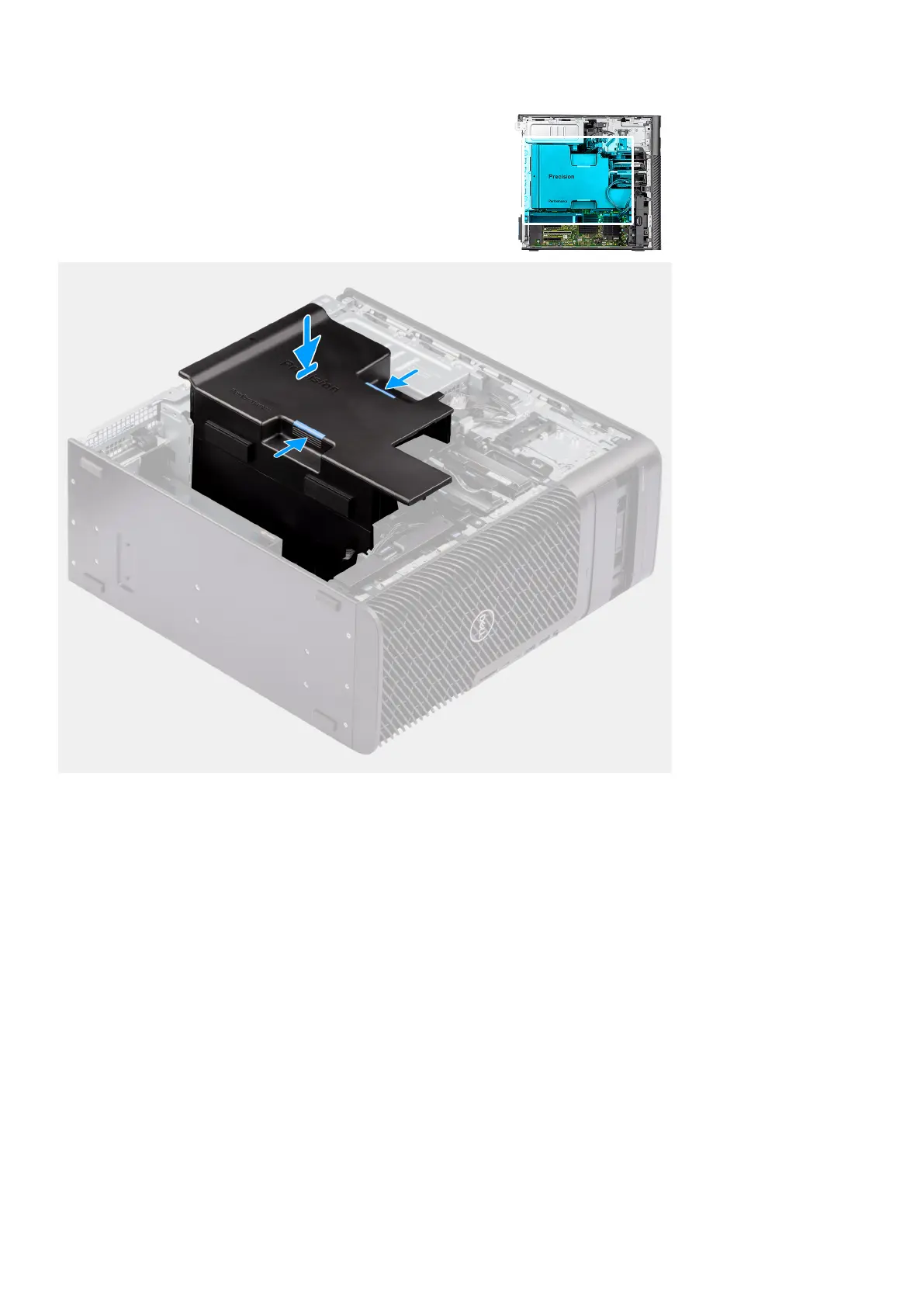

1. Align the air shroud over the heat-sink and system board holding and seat it in the slot.
2. Press the air shroud down until the tabs click into place.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
PCIe holder
Removing the PCIe holder
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the air shroud.
Removing and installing components
35
