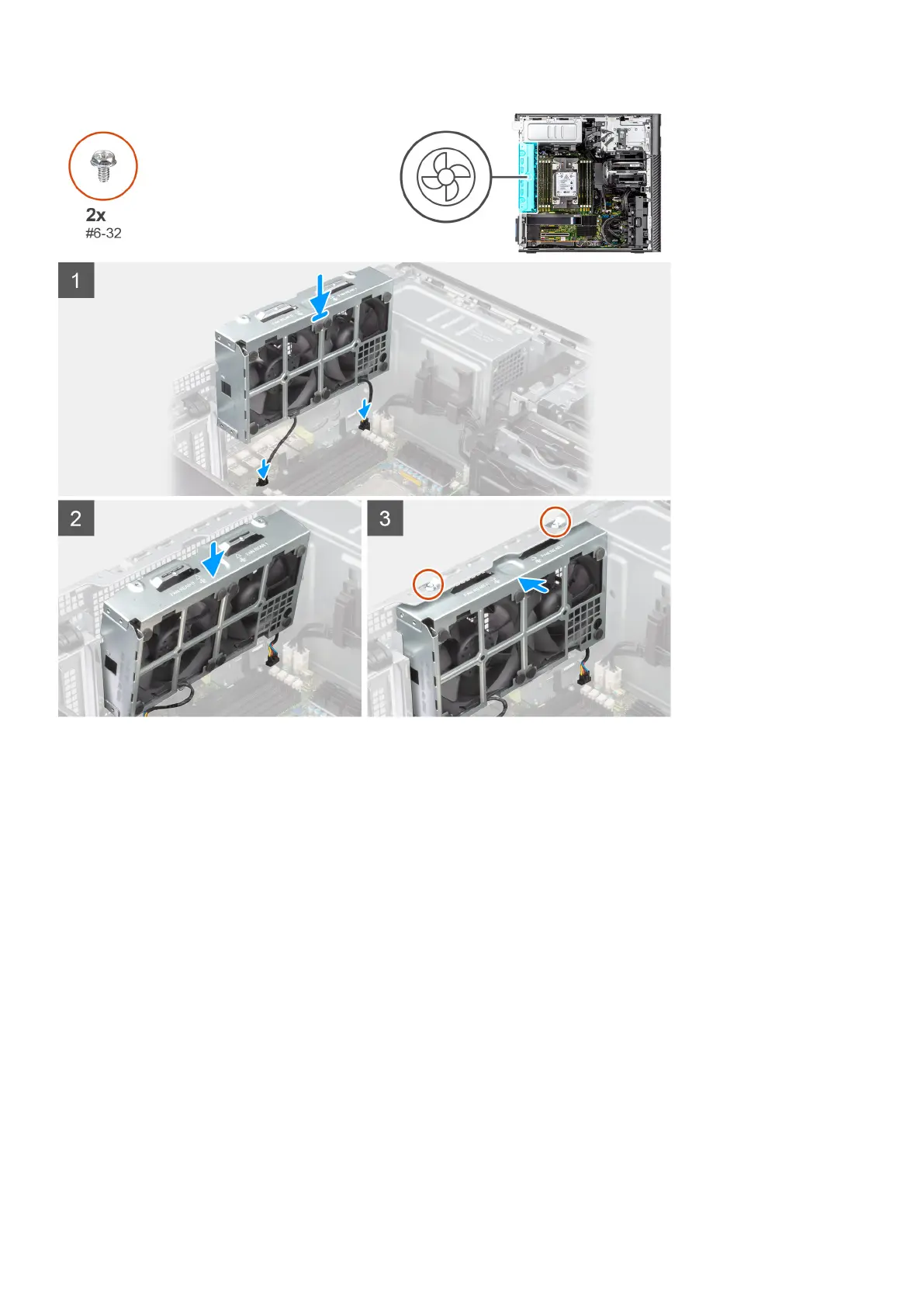

Steps
1. Align the tabs on the fan assembly with the slots on the chassis.
2. Insert the fan assembly at an angle into the slot in the chassis.
3. Install the two (#6-32) screws to secure the fan assembly to the chassis.
4. Connect the fan cable to the connector on the system board.
Next steps
1. Install the air shroud.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
Memory modules
Removing the memory module
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the air shroud.
58
Removing and installing components
