Steps

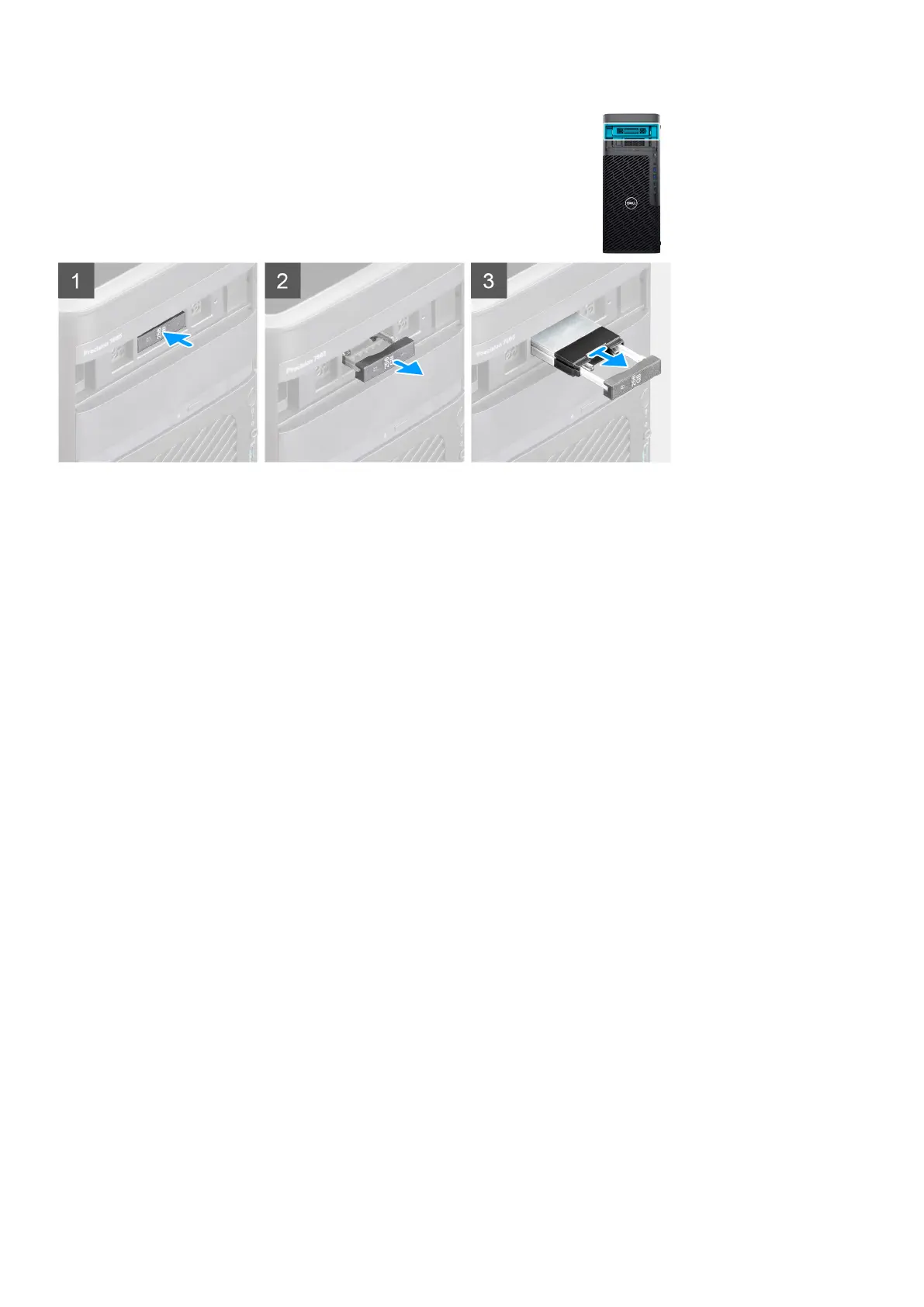

1. Push the release button on the external-flexbay bracket to open the release latch.
2. Hold the release latch and slide the solid-state drive assembly out of the external flexbay slot.
Removing the external M.2 2230 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
About this task
The following images indicate the location of the external M.2 2230 solid-state drive and provide a visual representation of the
removal procedure.
26
Removing and installing components
