Steps
1. Disconnect the Thunderbolt PCIe cable from the connector on the system.
2. Remove the Thunderbolt PCIe cable from the routing guide on the chassis.
3. Push the PCIe latch to open the PCIe door.
4. Lift and remove the Thunderbolt PCIe card away from the expansion-card slot.
Installing the Thunderbolt PCIe card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

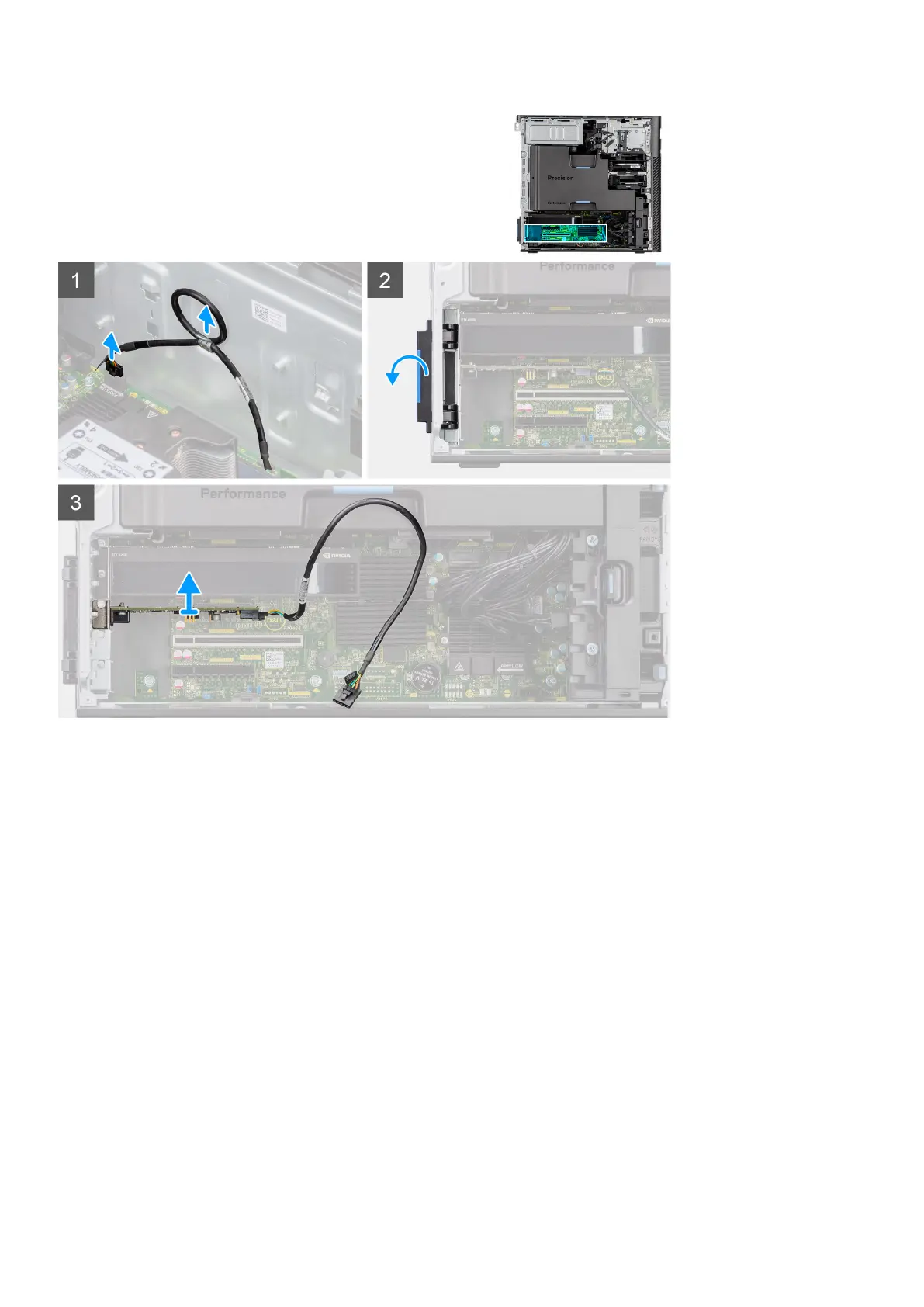

The following images indicate the location of the Thunderbolt PCIe card and provide a visual representation of the installation
procedure.
