Steps
1.
NOTE:
2.5 inch hard-drives are to be installed in hard-drive assemblies with an adapter installed to fit 2.5 inch hard-
drives.

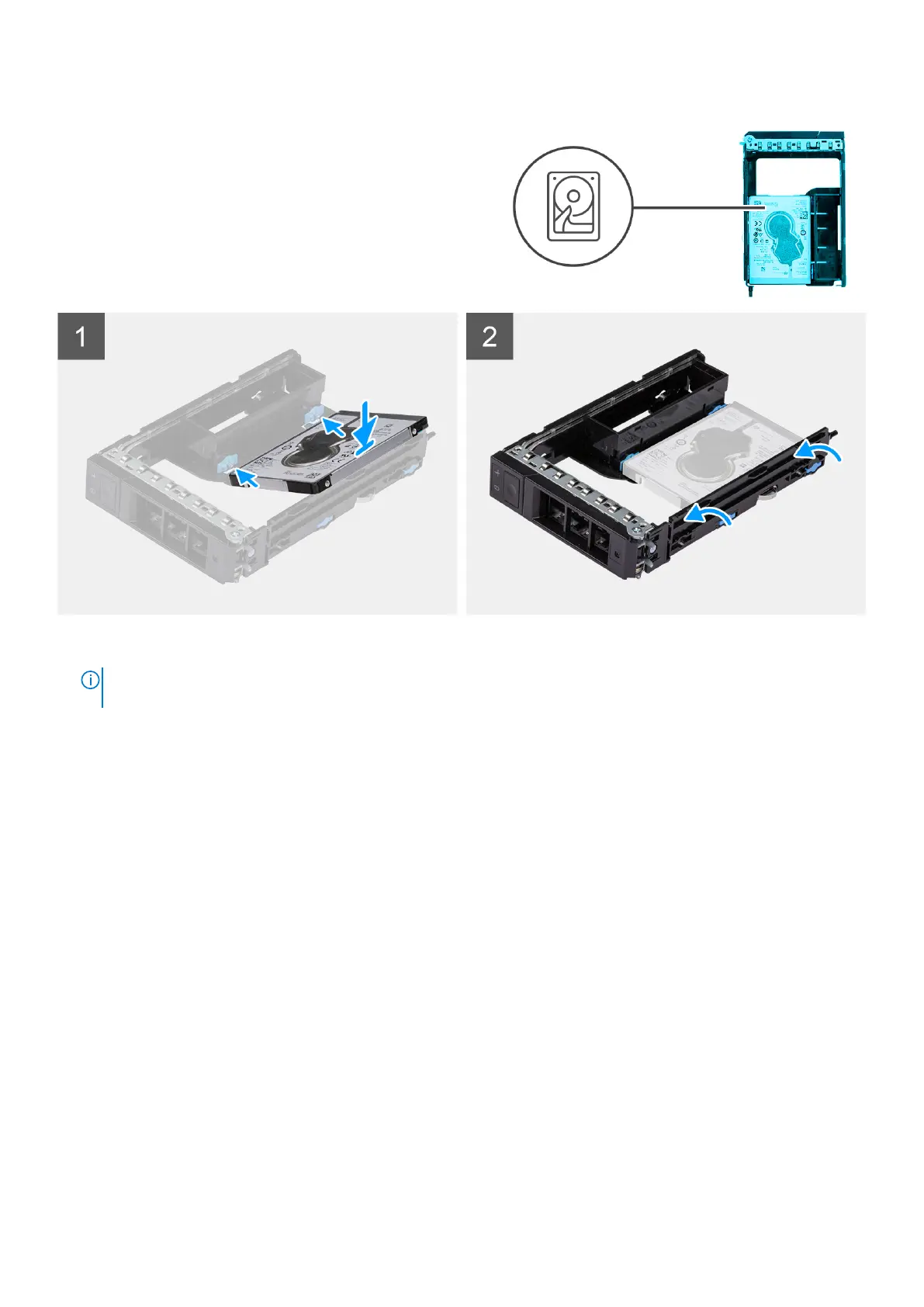

Place the hard drive into the external hard-drive bracket and align the pins on the bracket with the slots on the hard drive.
2. Snap the hard-drive into the external hard-drive bracket.
Next steps
1. Install the hard-drive assembly.
2. Follow the procedure in After working inside your computer.
External storage flexbay (Solid-state drive)
Removing the external solid-state drive assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
About this task
The following images indicate the location of the external solid-state drive assembly and provide a visual representation of the
removal procedure.
Removing and installing components
25
