Dell D03T Service Manual

Steps

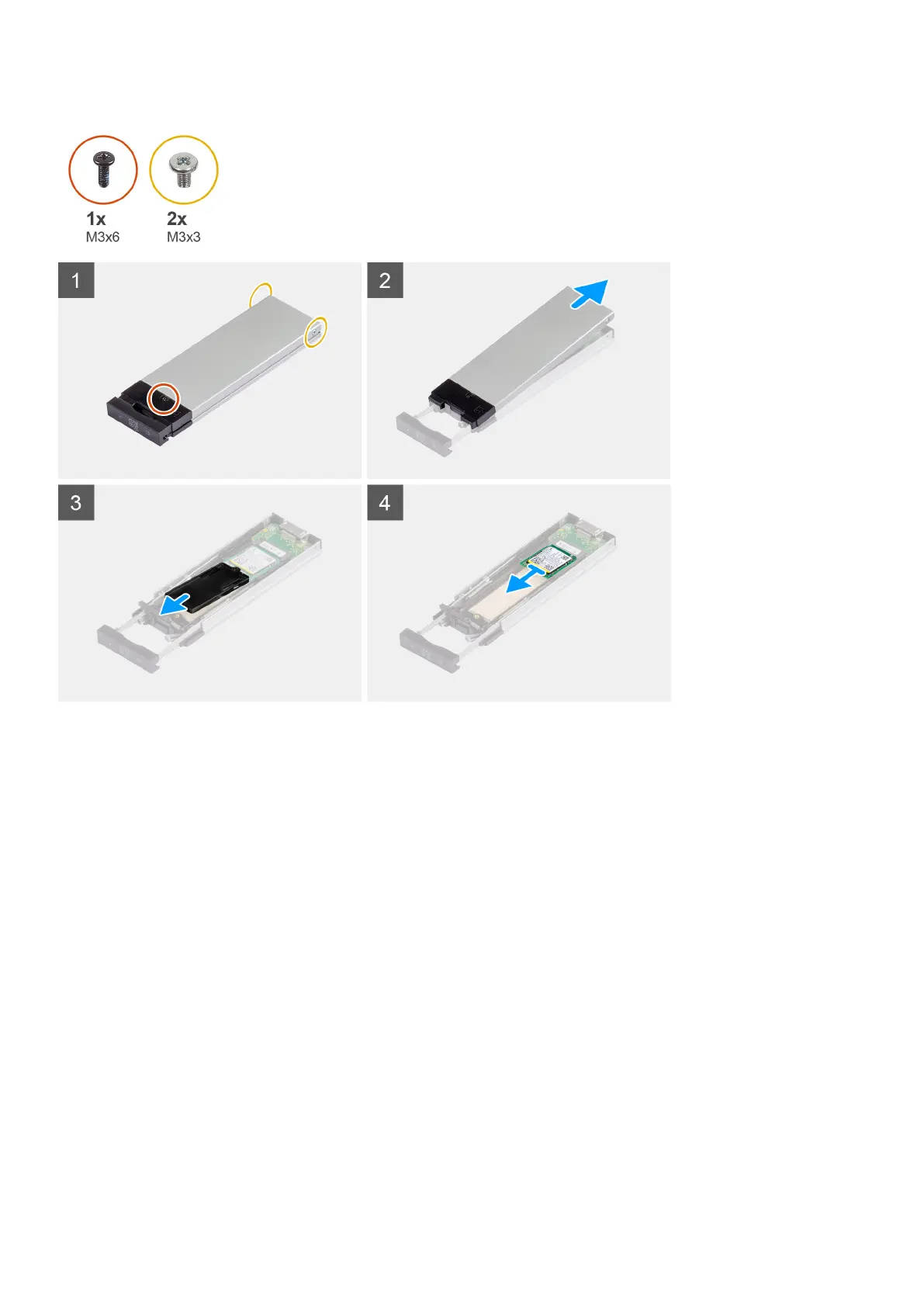

1. Remove the single (M3x6) screw and the two (M3x3) screws from the solid-state drive assembly.
2. Lift and remove the cover from the solid-state drive assembly.
3. Slide and remove the solid-state drive holder from the solid-state drive assembly.
4. Slide and remove the solid-state drive from the solid-state drive assembly.
Installing the external M.2 2230 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the external M.2 2230 solid-state drive and provide a visual representation of the
installation procedure.
Removing and installing components
27
