Dell D03T Service Manual

Steps
1. Align the UltraSpeed Duo card with the expansion-card slot on the system board.
2. Using the alignment post, connect the UltraSpeed Duo card to the connector and press down firmly. Ensure that the
UltraSpeed Duo card is firmly seated.
3. Close the PCIe door, locking it into position.
Next steps
1. Install the air shroud.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
Removing the UltraSpeed Quad card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the air shroud.
About this task

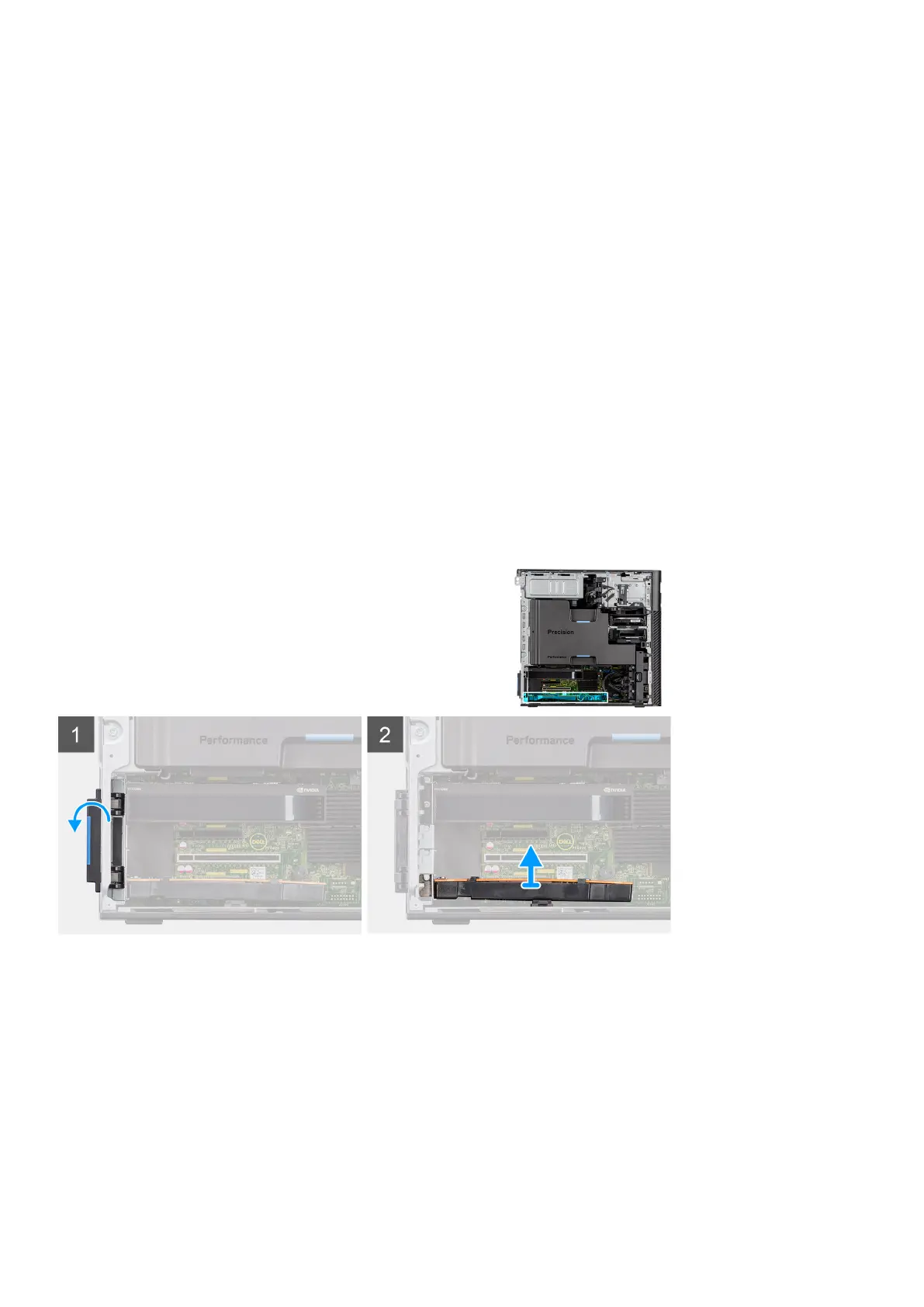

The following images indicate the location of the UltraSpeed Quad card and provide a visual representation of the removal
procedure.
Steps
1. Push the PCIe latch to open the PCIe door.
2. Lift and remove the UltraSpeed Quad card away from the expansion-card slot.
Installing the UltraSpeed Quad card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
74
Removing and installing components
