Table 8. I/O module port mapping—half-width compute sleds (quad port NDC/network output)
Compute sled IO Module A1 (Top) IO Module A2 (Bottom)
1 1, 2 1, 2
2 3, 4 3, 4
3 5, 6 5, 6
4 7, 8 7, 8
I/O module port mapping—eight-bay chassis
In the eight-bay chassis that supports up to eight quarter-width compute sleds, a compute sled is mapped to a single port on
each I/O module.

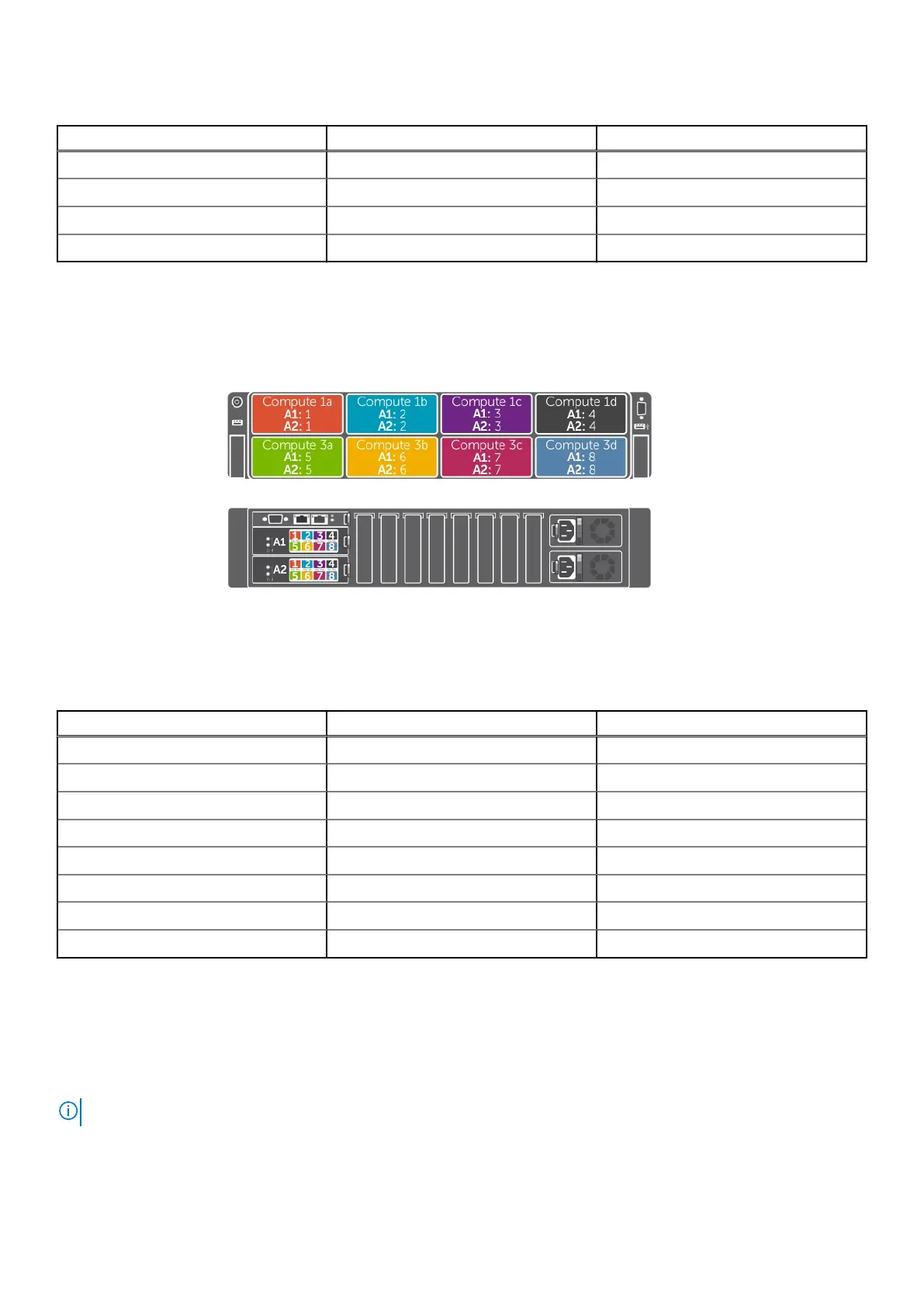

Figure 18. I/O module port mapping—eight-bay chassis
The following table lists the compute sleds and the ports to which they are mapped.
Table 9. I/O module port mapping in eight-bay chassis
Compute sled IO Module A1 (Top) IO Module A2 (Bottom)
1a 1 1
1b 2 2
1c 3 3
1d 4 4
3a 5 5
3b 6 6
3c 7 7
3d 8 8
I/O module port mapping—six-bay chassis
The six-bay chassis supports a combination of up to four quarter-width compute sleds and up to two half-width compute sleds.
In the six-bay chassis, a quarter-width compute sled is mapped to one port on each I/O module. A half-width compute sled with
quad-port NDC is mapped to two ports on each I/O module.
NOTE: A half-width compute sled with dual-port NDC is mapped to a single port on each I/O module.
24 PowerEdge FX2/FX2s mapping configurations
