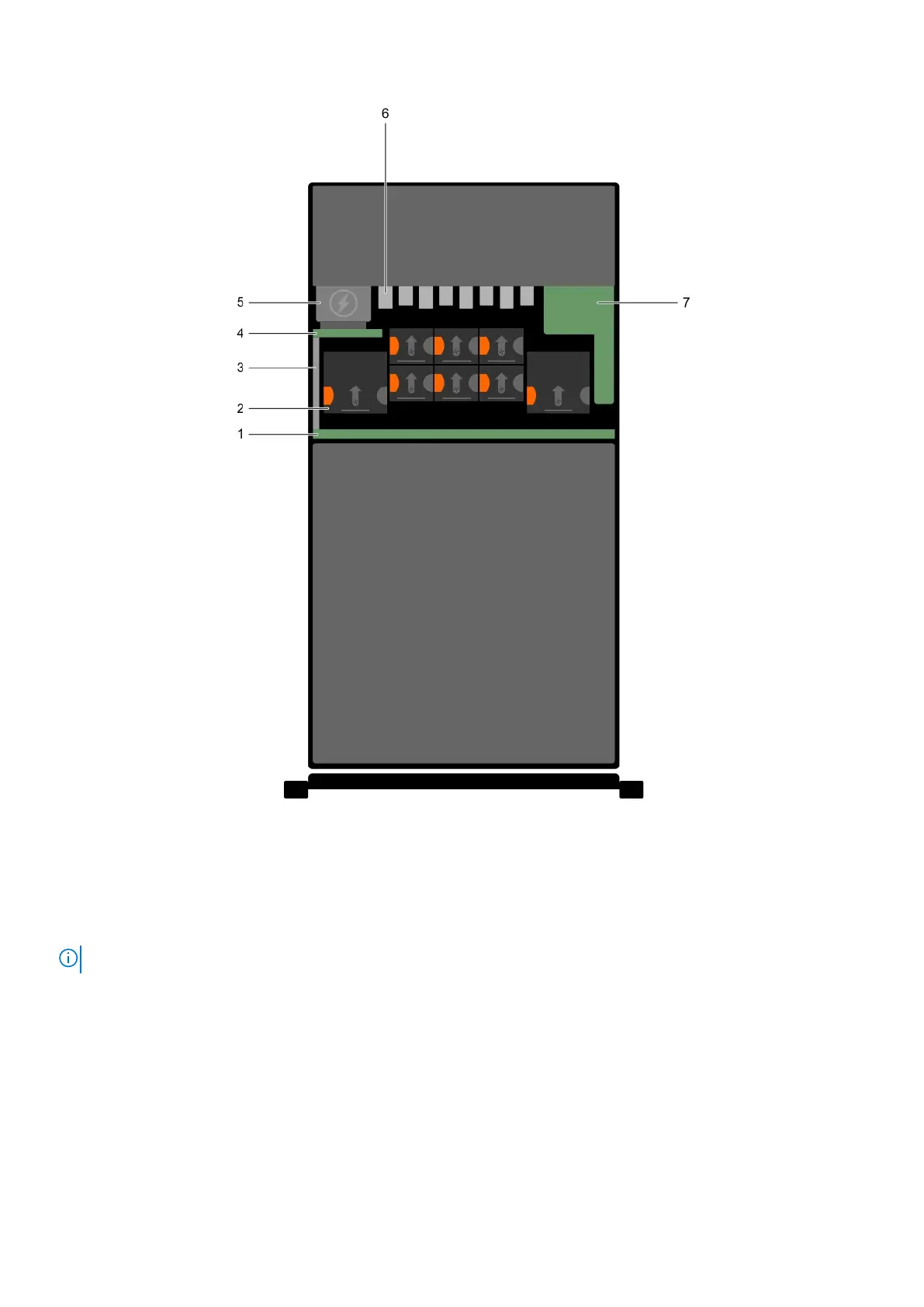

Figure 36. Inside the system—PowerEdge FX2s
1.
midplane 2. fan (8)
3. power bus bar 4. power interposer board
5. Power Supply Unit (2) 6. PCIe module (8)
7. CMC module
NOTE: PowerEdge FX2 does not support PCIe modules.
CMC module
Your system supports a hot-swappable CMC module that provides multiple systems management functions.
Installing and removing PowerEdge FX2/FX2s enclosure components
41
