The following table lists the compute sleds and the ports to which they are mapped.
Table 11. I/O module port mapping—full-width compute sleds
Compute sled I/O Module A1 (Top) I/O Module A2 (Bottom)
1 1, 2, 3, 4 1, 2, 3, 4
3 5, 6, 7, 8 5, 6, 7, 8
I/O module port mapping—three-bay chassis
The three-bay chassis supports a combination of one full-width compute sled and up to two half-width compute sleds.
In the three-bay chassis, a full-width compute sled is mapped to four ports on each I/O module. A half-width compute sled with
quad port NDC is mapped to two ports on each I/O module.
NOTE: A half-width compute sled with dual-port NDC is mapped to a single port on each I/O module.
NOTE: In the three-bay PowerEdge FX2s configuration that supports storage sled(s) mapped to a full-width compute sled,
only the compute sled is mapped to the I/O module ports. If storage sleds are installed, the corresponding ports on the I/O
modules mapped to these slots are not active.

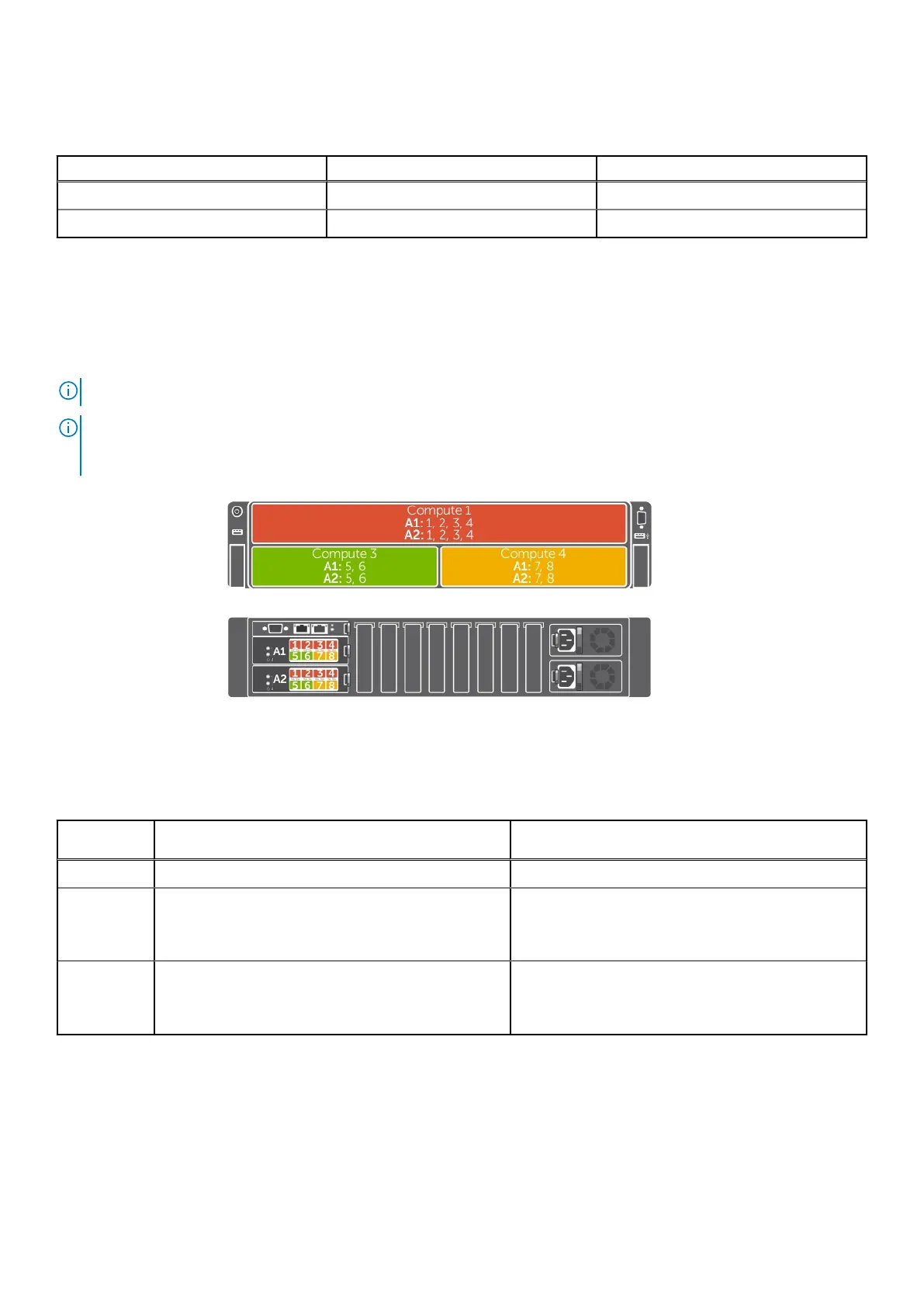

Figure 21. I/O module port mapping—three-bay chassis
The following table lists the compute sleds and the ports to which they are mapped.
Table 12. I/O module port mapping in three-bay chassis
Compute
sled
IO Module A1 (Top) IO Module A2 (Bottom)
1 1, 2, 3, 4 1, 2, 3, 4
3 5, 6 (for half-width compute sled with quad-port
NDC)
5 (for half-width compute sled with dual-port NDC)
5, 6 (for half-width compute sled with quad-port
NDC)
5 (for half-width compute sled with dual-port NDC)
4 7, 8 (for half-width compute sled with quad-port
NDC)
7 (for half-width compute sled with dual-port NDC)
7, 8 (for half-width compute sled with quad-port
NDC)
7 (for half-width compute sled with dual-port NDC)
I/O module and PCIe mezzanine card configuration
guidelines
● LOM network supports two Ethernet pass-through or switch modules.
26
PowerEdge FX2/FX2s mapping configurations
