● Three-bay chassis—The full-width compute sled is mapped to four PCIe slots. Each half-width compute sled is mapped to
two PCIe slots.

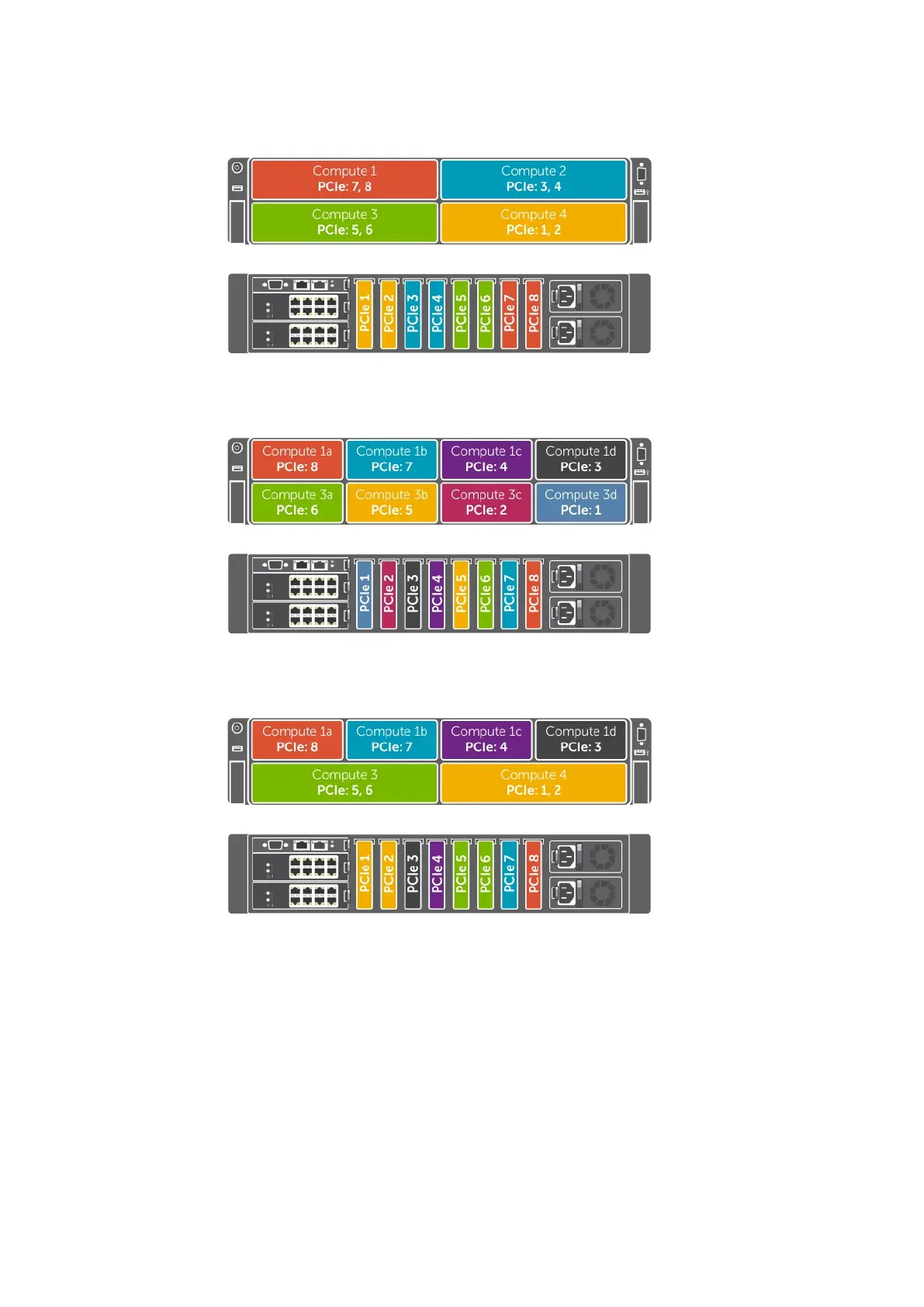

Figure 22. Compute sled to PCIe slot mapping—four-bay chassis
Figure 23. Compute sled to PCIe slot mapping—eight-bay chassis
Figure 24. Compute sled to PCIe slot mapping—six-bay chassis
28
PowerEdge FX2/FX2s mapping configurations

Dell E24S Specifications
