NOTE: In the six-bay PowerEdge FX2s configuration that supports storage sleds mapped to quarter-width compute sleds,
the I/O module ports are mapped only to the compute sleds. If storage sleds are installed, the corresponding ports on the
I/O modules mapped to these slots are not active.

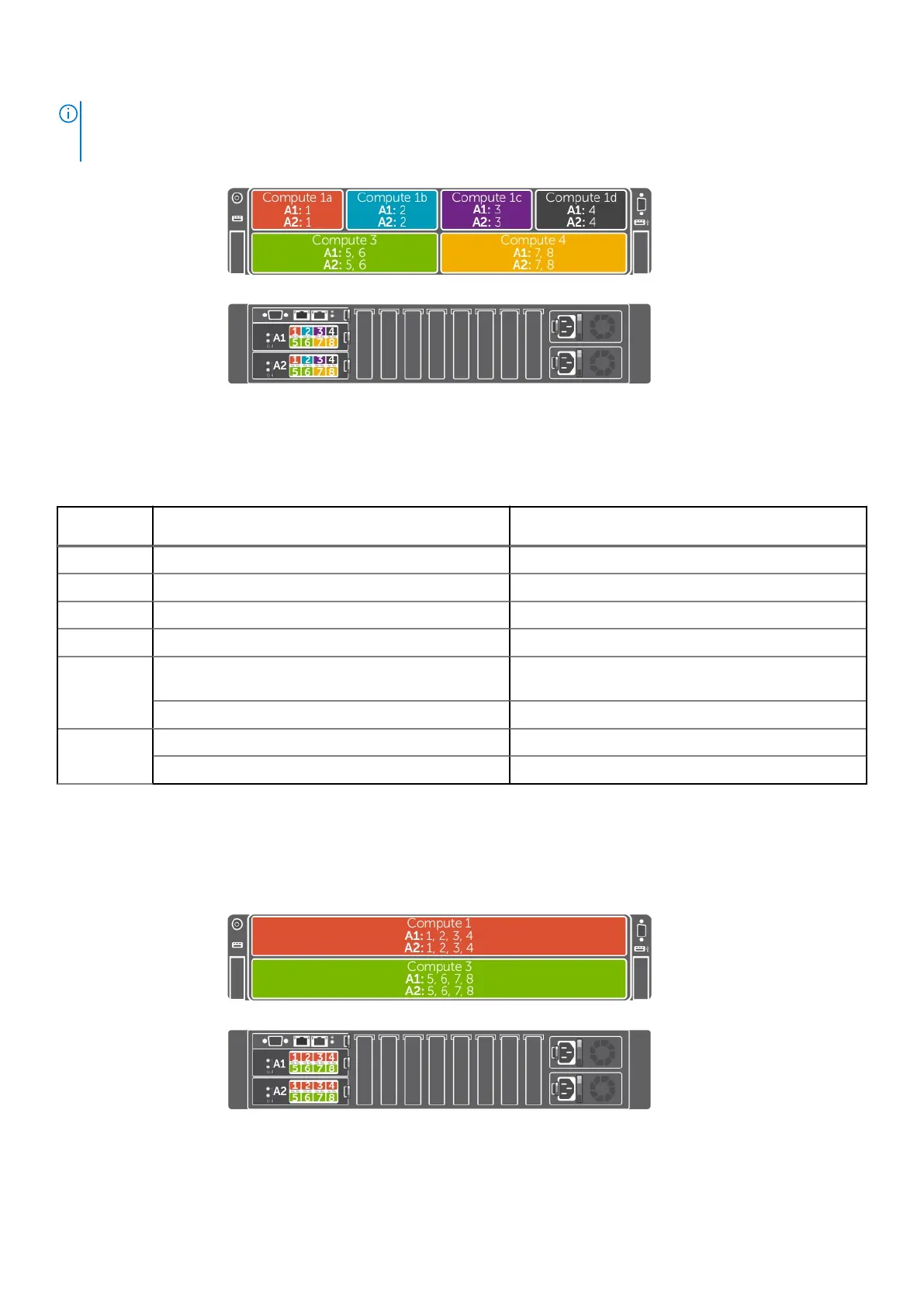

Figure 19. I/O module port mappingsix-bay chassis
The following table lists the compute sleds and the ports to which they are mapped.
Table 10. I/O module port mapping in a six-bay chassis
Compute
sled
IO Module A1 (Top) IO Module A2 (Bottom)
1a 1 1
1b 2 2
1c 3 3
1d 4 4
3 5, 6 (for half-width compute sled with quad-port
NDC)
5, 6 (for half-width compute sled with quad-port
NDC)
5 (for half-width compute sled with dual-port NDC) 5 (for half-width compute sled with dual-port NDC)
4 7, 8 (for half-width compute sled with quad-port NDC) 7, 8 (for half-width compute sled with quad-port NDC)
7 (for half-width compute sled with dual-port NDC) 7 (for half-width compute sled with dual-port NDC)
I/O module port mappingtwo-bay chassis
In the two-bay chassis configuration that supports up to two full-width compute sleds, a compute sled is mapped to four ports
on each I/O module.
Figure 20. I/O module port mappingfull-width compute sleds
PowerEdge FX2/FX2s mapping configurations
25
