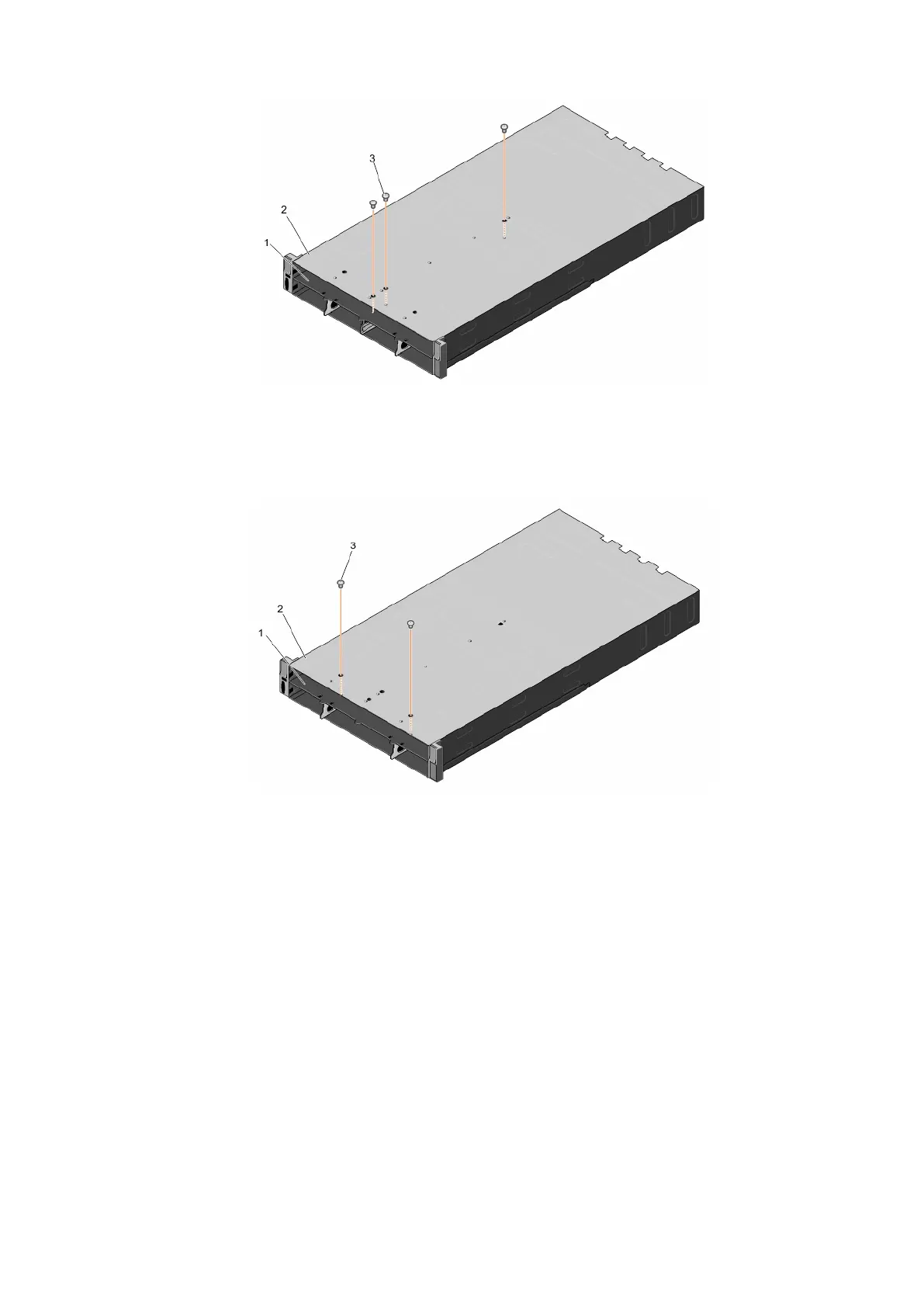

Figure 53. Removing and installing screws securing the top partition to the middle plate
i. middle plate
ii. bottom of the system
iii. screw (3)
b. Remove the two screws that secure the top interposer module to the middle plate.
Figure 54. Removing and installing screws securing the top interposer module to the middle plate
i. middle plate
ii. bottom of the system
iii. screw (2)
3. Turn the system over with the top side of the system facing up.
4. Remove the three screws that secure the top partition to the top of the system.
5. Slide the top partition out of the system.
66
Installing and removing PowerEdge FX2/FX2s enclosure components
