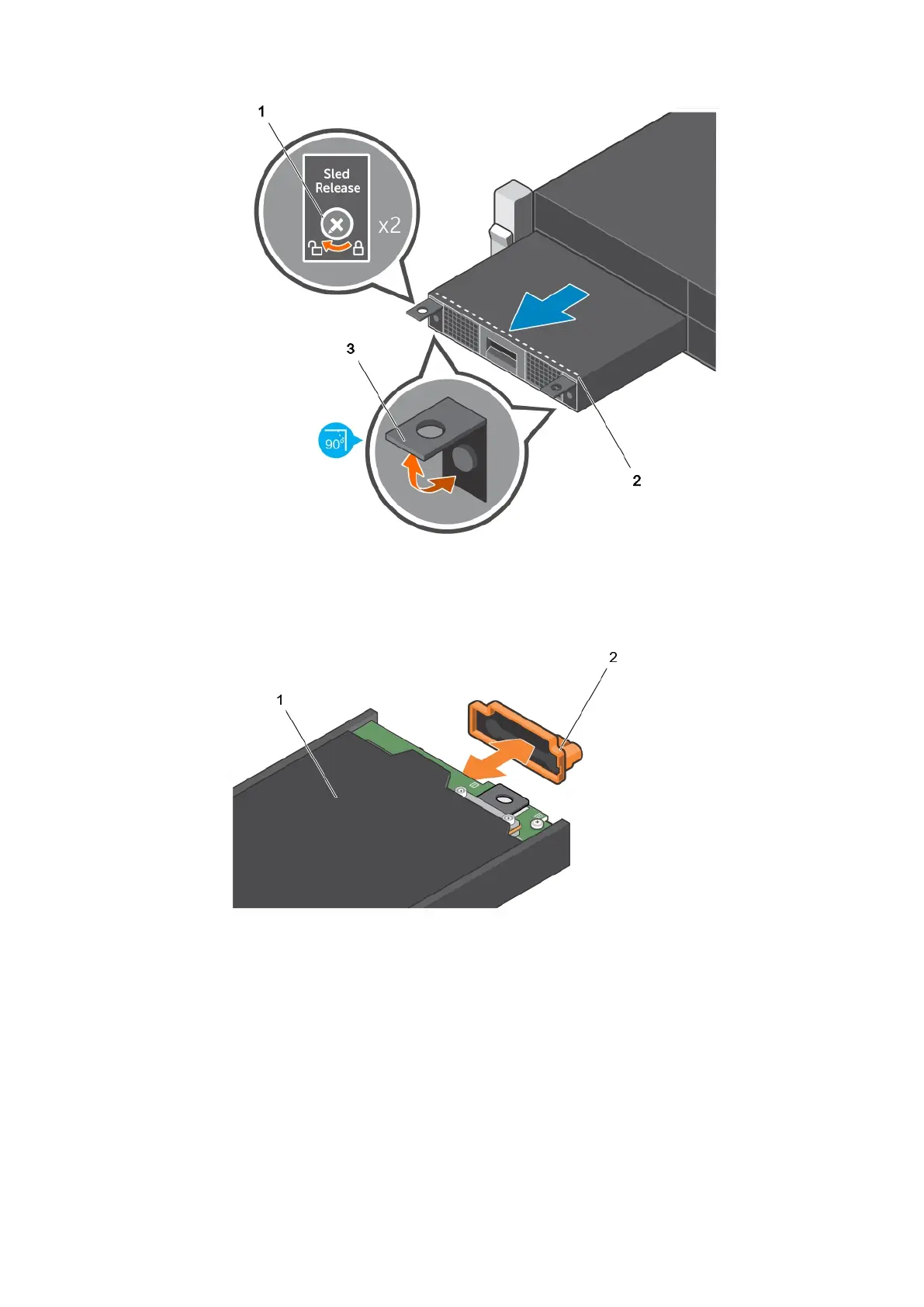

Figure 33. Removing a storage sled
a. sled lock (2)
b. dotted line on storage sled
c. sled release latch (2)
Figure 34. Removing and installing the I/O connector cover
a. storage sled
b. I/O connector cover
Next steps
Install the storage sled or sled blank.
Related references
Safety instructions on page 33
Related tasks
Installing a storage sled on page 39
38
Installing and removing PowerEdge FX2/FX2s enclosure components
