Processors and heat sinks
Removing processor and heat sink module
Steps
1. Using Torx #T30 screwdriver, loosen the screws.
NOTE: Ensure that the screw is completely loosened before moving on to the next screw.
2. Pushing both retention clips simultaneously, lift the processor heat sink module out of the system
3. Set the module aside with processor side facing up.

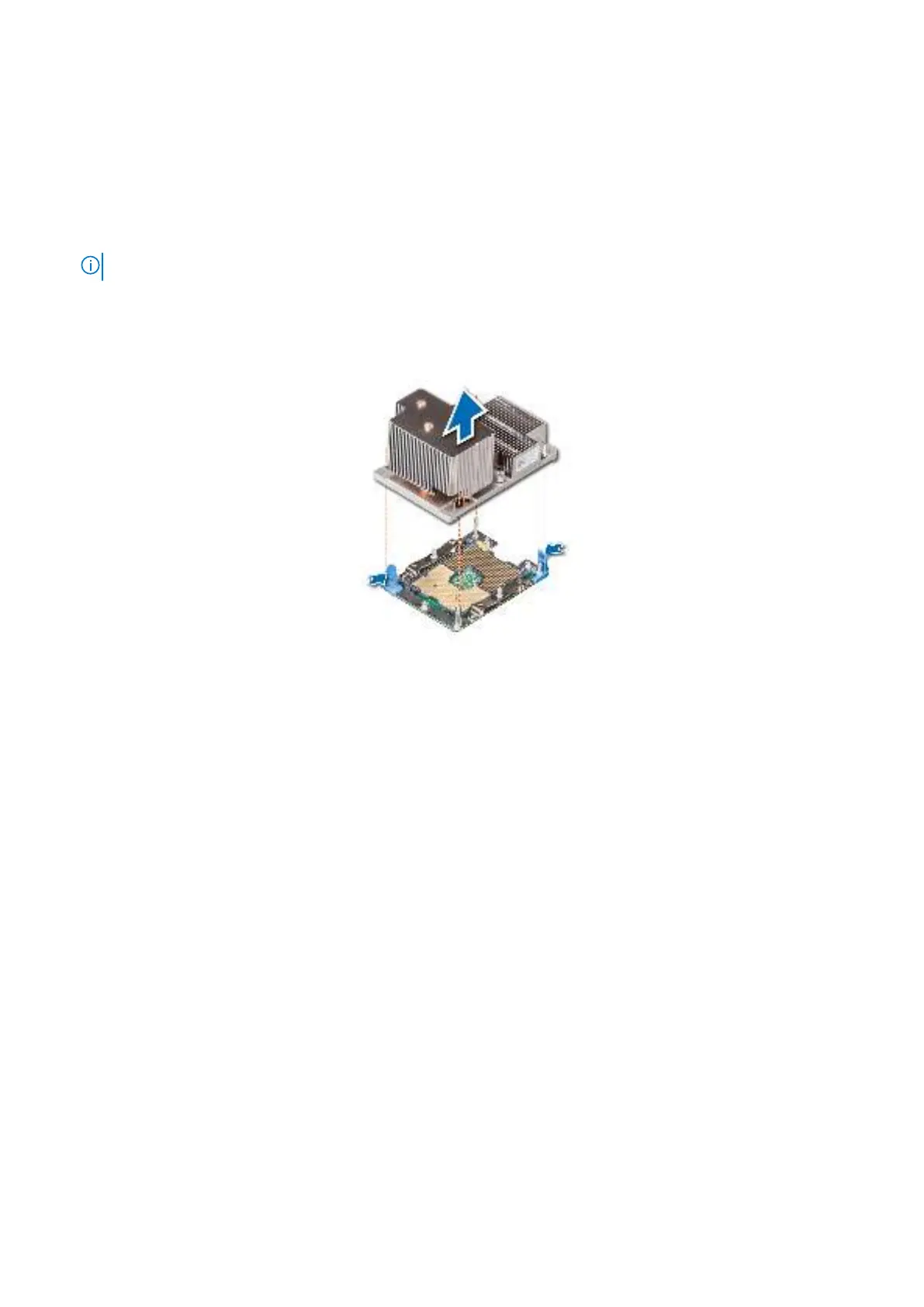

Figure 15. Removing heat sink (2U)
Removing processor from processor heat sink module
Steps
1. Place the heat sink with the processor side facing up.
2. Insert a flat blade screwdriver into the release slot marked with a yellow label. Twist (do not pry) the screwdriver to break
the thermal paste seal.
3. Push the retaining clips on the processor bracket to unlock the bracket from the heat sink.
Disassembly and reassembly 45
