Next steps
1. If removed, install expansion cards into the riser and connect any cable disconnected.
2. If applicable, install the air shroud.
NOTE: If applicable, open the PCIe card holder latch on the air shroud to install the full length card.
3. Install any device drivers required for the card as described in the documentation for the card.
vFlash card – optional
Removing vFlash card
Prerequisites
1. If applicable, remove the full height PCIe card in expansion card riser 2.
Steps
1. Locate the vFlash connector on the system board. To locate vFlash connector, see System board jumpers and connectors
section.

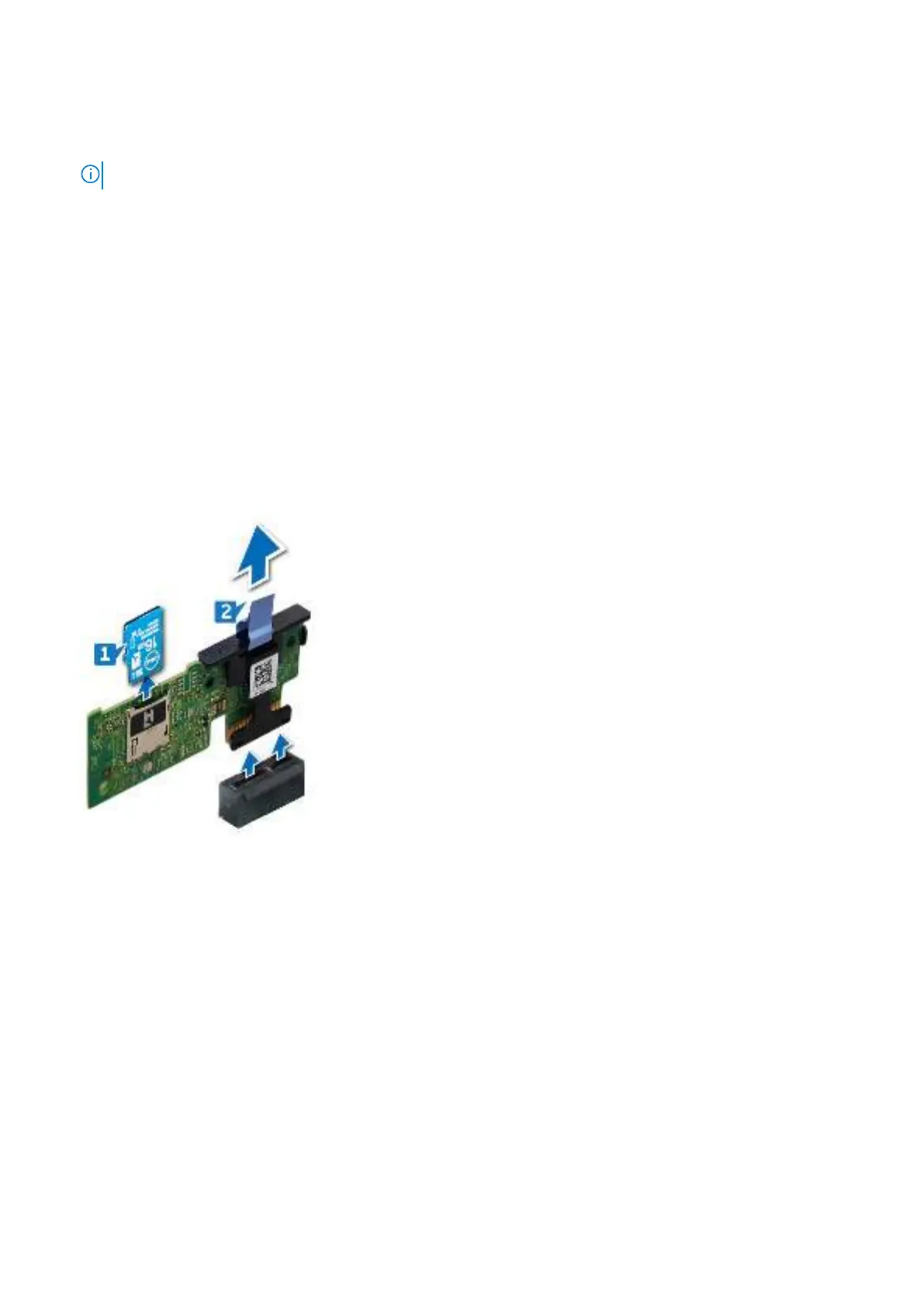

2. Remove the vFlash card from its slot [1].
3. Holding the pull tab, lift the vFlash expansion card out of the system [2].
Installing vFlash card
Steps
1. Locate the vFlash connector on the system board. To locate vFlash connector, see System board jumpers and connectors
section.
2. Align the vFlash expansion card with the connector on the system board and push until it is firmly seated on the system
board.
3. Insert the vFlash card into the slot on the vFLash expansion card.
Next steps
1. If applicable, install the full height PCIe card in expansion card riser 2.
56 Disassembly and reassembly
