Teradici Tera2220 Host Cards Installation
This section describes the installation of Teradici host cards into the system. The host cards should have the low-profile PCI
card brackets installed to fit into riser 1 on the Dell Precision Rack 7910.
To install the host card, complete the following steps:

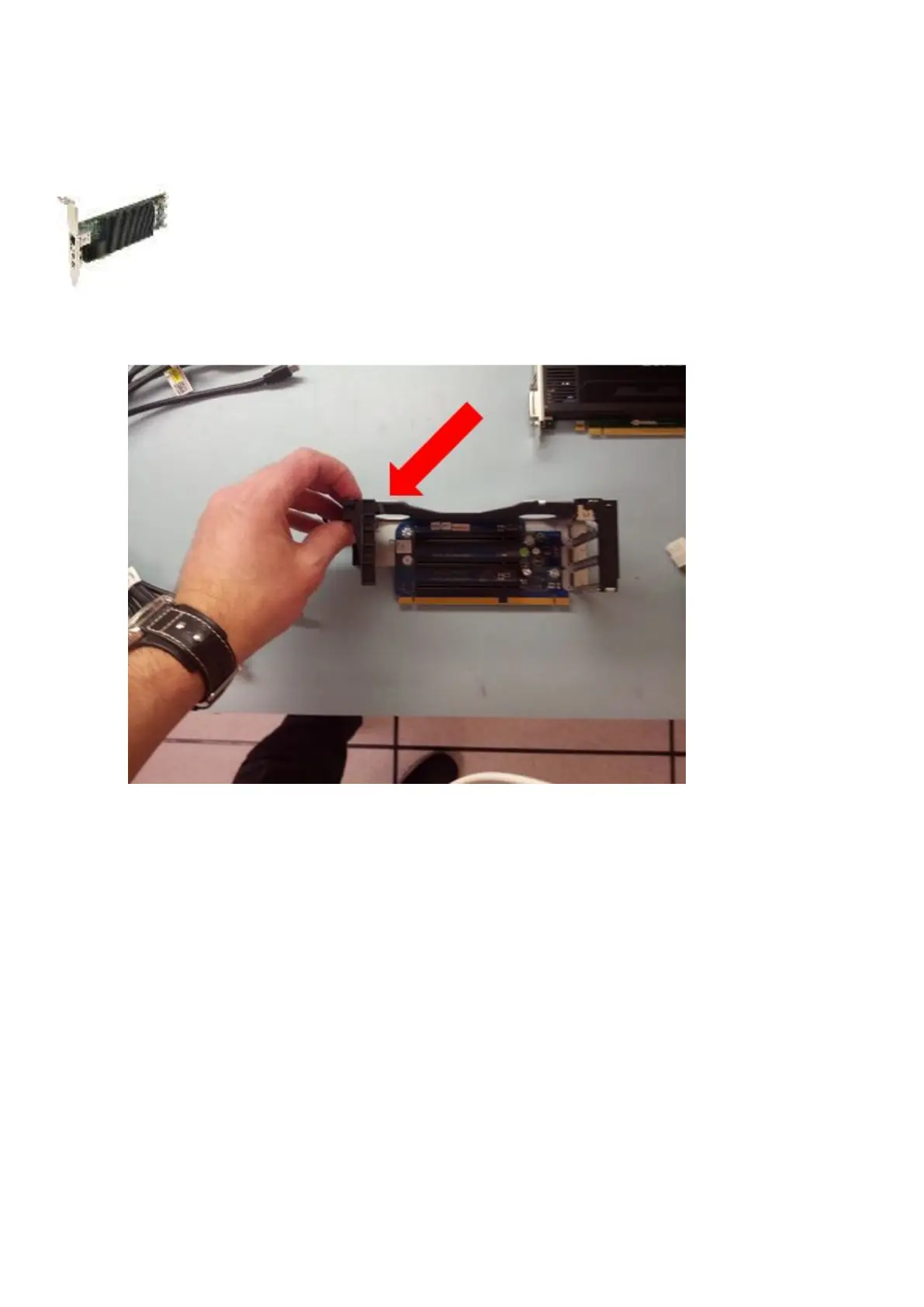

1. Remove the low-profile module that contains riser 1 from the chassis.
2. Open the PCI card support bracket on the back of the
module.
68 Disassembly and reassembly
