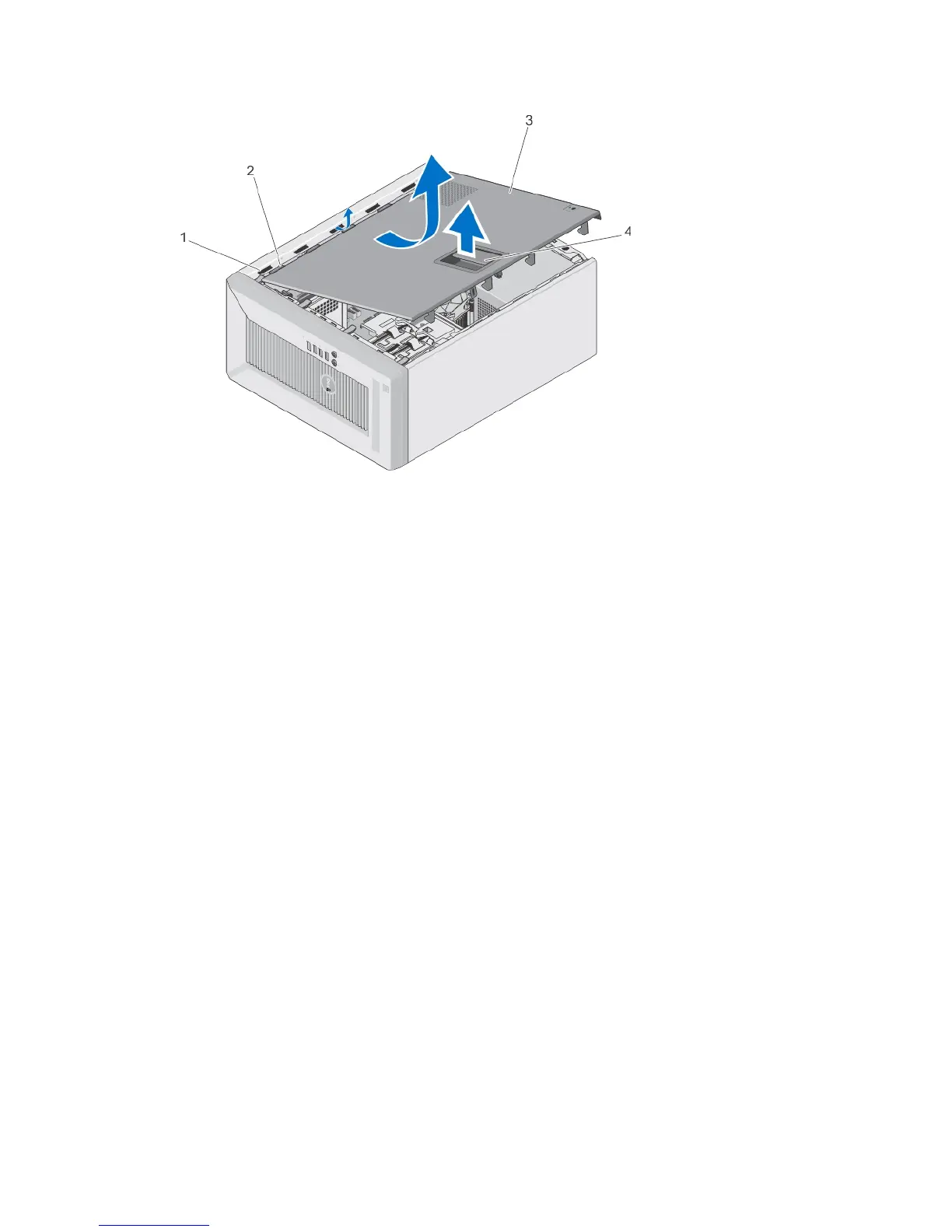

Figure 5. Opening and Closing the System
1. slots
2. tabs
3. system cover
4. cover release latch
Closing The System
1. Ensure that all internal cables are connected and placed out of the way and that no tools or extra parts are left
inside the system.
2. Align the tabs on the system cover with the corresponding slots on the system chassis.
3. Lower the system cover onto the chassis until it clicks into place.
4. Place the system upright on a flat, stable surface.
5. Reconnect the system to its electrical outlet and turn the system on, including any attached peripherals.
Bezel
Removing The Bezel
1. Turn off the system, including any attached peripherals, and disconnect the system from the electrical outlet and
peripherals.
2. Lay the system on its side, on a flat and stable surface.
3. Open the system.
4. Lift the retention clips located at the edge of the bezel.
5. Rotate the bezel away from the system to release the tabs on the bottom of the bezel.
28

Dell PowerEdge T20 Specifications

General

Chipset	Intel C226
Storage Capacity	Up to 12TB
Power Supply	290W
Form Factor	Tower
Processor	Intel Xeon E3-1225 v3
Memory	Up to 32GB DDR3
Storage Options	4 x 3.5-inch SATA
RAID Support	RAID 0, 1, 5, 10
Expansion Slots	1 x PCIe x16
Network	Gigabit Ethernet
USB Ports	4 x USB 3.0
Weight	11 kg
Operating System Support	Windows Server, Red Hat Enterprise Linux
CPU Options	Intel Xeon E3-1200 v3 series, Intel Core i3, Intel Pentium
