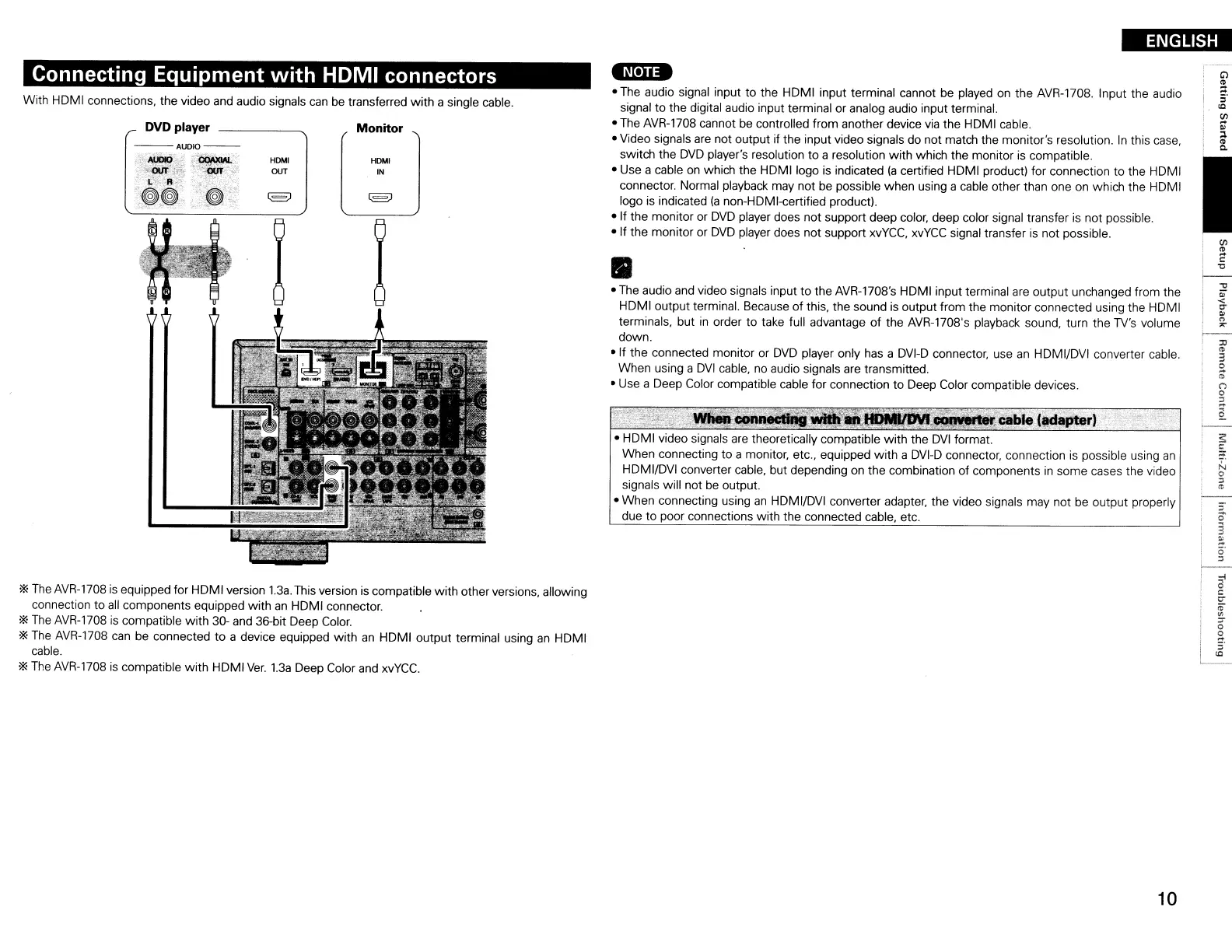

Connecting Equipment with HDMI connectors
With HOMI connections, the video and audio signals can be transferred
with
a single cable.
DVD player
~
---AUOIO--
"
HOMI
HOMI
OUT
IN
~
~
~ ~
*
The
AVR-1708
is
equipped for HOMI version
1.3a.
This version is compatible
with
other versions, allowing
connection to
all
components equipped with
an
HOMI connector.
*
The
AVR-170S
is
compatible
with
30- and
36-M
Deep Color.
*The
AVR-170S
can be connected
to
a device equipped
with
an
HOMI output terminal using
an
HOMI
cable.
*
The
AVR-170S
is
compatible
with
HOMI
Ver.
1.3a
Deep Color and
xvYCC.
-N·n*
• The audio signal input
to
the HOMI input terminal cannot be played on the AVR-1708. Input the audio
signal to the digital audio input terminal or analog audio input terminal.
• The AVR-170S cannot be controlled from another device
via
the HOMI cable.
• Video signals
are
not output if the input video signals do not match the monitor's resolution.
In
this case,
switch the
OVO
player's resolution to a resolution
with
which the monitor
is
compatible.
• Use a cable on which the
HOMIIogo
is
indicated
(a
certified HOMI product) for connection to the HOMI
connector. Normal playback may not be possible when using a cable other than one on which the HOMI
logo
is
indicated
(a
non-HOMl-certified product).
• If the monitor or
OVO
player does not support deep color, deep color signal transfer
is
not possible.
• If the monitor or
OVO
player does not support
xvYCC,
xvYCC
signal transfer is not possible.
•
• The audio and video signals input
to
the AVR-170S's HOMI input terminal are output unchanged from the
HOMI output terminal. Because
of
this, the sound
is
output from the monitor connected using the HOMI
terminals, but
in
order
to
take full advantage
of
the AVR-170S's playback sound, turn the TV's volume
down.
• If the connected monitor or
OVO
player only has a
OVI-O
connector, use
an
HOMI/OVI converter cable.
When using a
OVI
cable,
no
audio signals are transmitted.
• Use a Deep Color compatible cable for connection to Deep Color compatible devices.
• HOMI video signals
are
theoretically compatible
with
the
OVI
format.
When connecting to a monitor, etc., equipped
with
a
OVI-O
connector, connection is possible using
an
HOMI/OVI converter cable, but depending on the combination
of
components
in
some cases the video
signals will not be output.
• When connecting using
an
HOMI/OVI converter adapter, the video signals may not be output properly
due to poor connections with the connected cable, etc.
