Denon AVR-1708 Owner's Manual

ENGLISH
IN
L R
ee
OUT
L R
ee
--AUDIO--
AUlltO
---. --. ------1;::::::::::::::===
---- VIDEO ----
.~

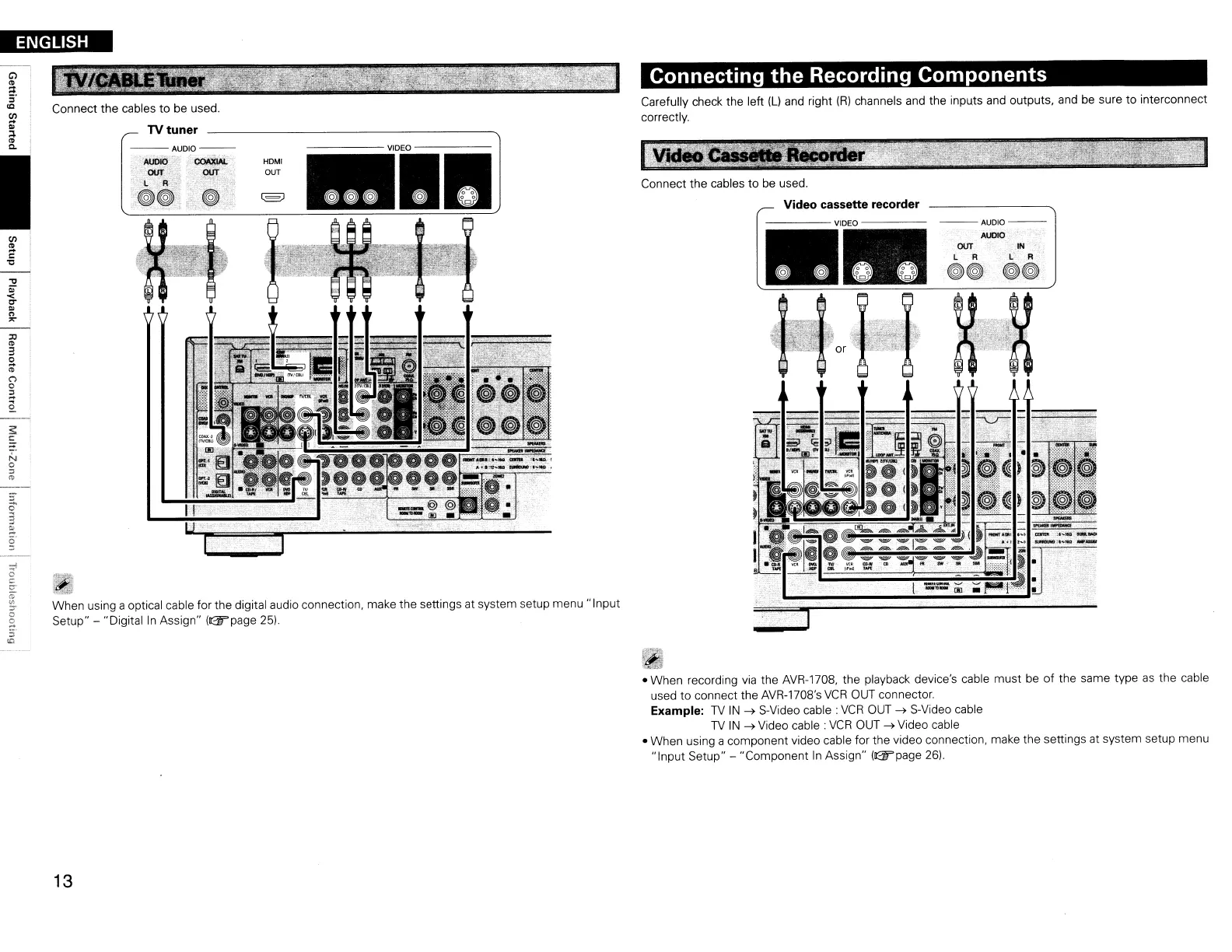

Connecting the Recording Components
Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect
correctly.
Connect the cables to be used.
Video cassette recorder
----- VIDEO -----
.111
HOM I
OUT
--AUDIO--
AUDIO ~
OUT OUT
L ·R. "
e~, e
Connect the cables to be used.
TV tuner ~
When using a optical cable for the digital audio connection, make the settings at system setup menu "Input
Setup" - "Digitalin Assign" (Grpage 25).
s:
::
N
o
::l
to
'~
• When recording via the AVR-170S, the playback device's cable must be of the same type as the cable
used to connect the AVR-170S's VCR OUT connector.
Example: TV IN ~ S-Video cable: VCR OUT ~ S-Video cable
TV IN ~ Video cable: VCR OUT ~ Video cable
• When using a component video cable for the video connection, make the settings at system setup menu
"Input Setup" - "Component In Assign" (Gr"page 26).
13

Denon AVR-1708 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
Equalizer	Yes
HDMI version	1.3a
Product color	Black
Audio decoders	DTS, DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx
Apple docking compatibility	iPod
Optical drive included	No
HDMI in	2
Composite video in	4
S-Video inputs quantity	3
Headphone connectivity	6.3 mm
Number of HDMI outputs	1

Weight and Dimensions

Depth	383 mm
Width	434 mm
Height	171 mm
Weight	11100 g
