Denon AVR-3312 Service Manual

168
SEMICONDUCTORS
Only major semiconductors are shown. General semiconductors etc. are omitted from list.
The semiconductors which have a detailed drawing in a schematic diagram are omitted from list.
1. IC's

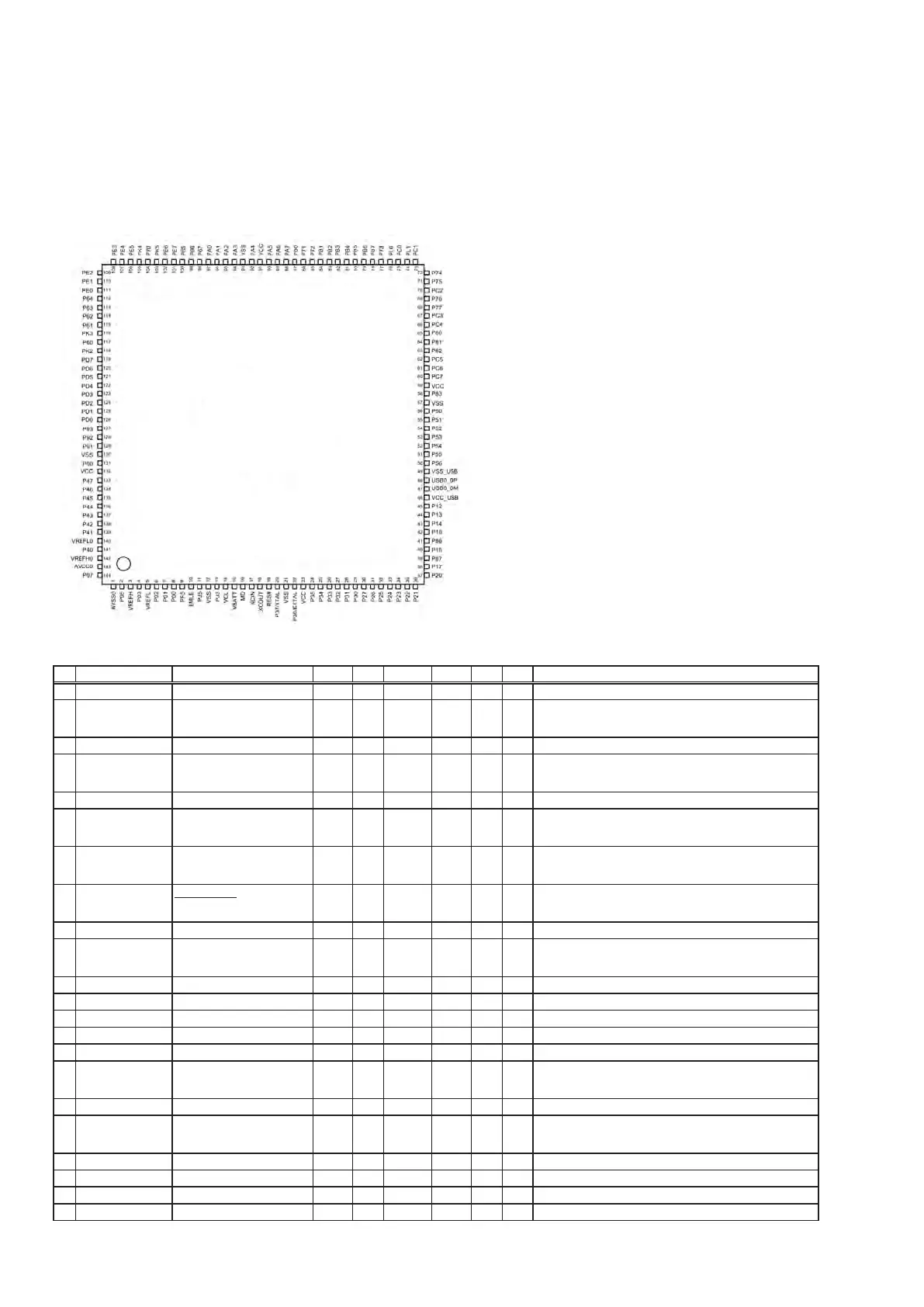

R5F5630ECDFB(DIGITAL:IC201)
R5F5630ECDFBTerminalFunctions
Pin Pin Name Synbol Tolerant I/O Pu/Pd LvCnv STBY stop Function
1 AVSS0 AVSS0 - - - GND
2 P05/IRQ13-B VSEL A I SW3VPu I I
Master Volume rotation detection input(ENCODOR)
b
operate
as VSEL B
3 VREFH VREFH - - - Connect the power supply pin
4 P03/IRQ11-C VSEL B I SW3VPu I I
Master Volume rotation detection input(ENCODOR)
b
operate
as VSEL A
5 VREFL VREFL - - - GND
6
P02/IRQ10-B/
AN020/SCK6-B
ADV8002 INT0(OSD CORE) I O/L O/L ADV8002 INT output
7
P01/RXD6-B/
IRQ9-C/AN019
RDS DATA(E2) I 5->3 I I RDS control(E2 model)
8
P00/TXD6-B/
IRQ8-C/AN018
RDS CLK(E2) I 5->3 I I RDS control(E2 model)(Interrupt detection))
9 PF5/IRQ4-E BDOWN I I I Power failure detection
10 EMLE EMLE I Pd - -
E20 Emulator control signal (H:OK,L:NG(CPU unit only : the
pull-down is necessary))
11 PJ5 ISEL A I SW3VPu I I Input Selector rotation detection input(ENCODOR)
12 VSS VSS - - - GND
13 PJ3 ISEL B I SW3VPu I I Input Selector rotation detection input(ENCODOR)
14 VCL VCL - - - Connect to VSS through C of 0.1μF
15 VBATT VBATT - - - Connect the power supply pin
16 MD/FINED MD I M3VPu - -
Usual(SingleChip mode):MD="H"/ MITSUBISHI writer
rewrite:"L"(from external jig)
17 XCIN XCIN - - - GND
18
XCOUT/PH6(input
only)
XCOUT - - - Open
19 RES# RESET I M3VPu - -
20 XTAL/P37 XTAL - - - Crystal departure pendulum connection pin
21 VSS VSS - - - GND
22 EXTAL/P36 EXTAL - - - Crystal departure pendulum connection pin
RX630 Group
PLQP0144KA-A
(144pin LQFP)
(Top)

Denon AVR-3312 Specifications

General

Impedance	8 Ω
Receiver type	Surround
Frequency range	10 - 100000 Hz
Speaker selector	A+B
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.8 %
Power output per channel (1KHz@8 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	125 W
HDMI in	7
Audio (L/R) in	8
Composite video in	5
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
Composite video out	3
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Internet radio services supported	Last.fm, Napster
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Display	VFL
HDMI version	1.4a
Product color	Black
Audio decoders	Dolby Pro Logic IIz, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	iPad, iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W
Card reader integrated	-
Cables included	AC

Weight and Dimensions

Depth	382 mm
Width	434 mm
Height	167 mm
Weight	11800 g
