Denon AVR-3312 Service Manual

67
WHEN THE MICROPROCESSOR IS REPLACED WITH A NEW ONE
When the U-PRO (Microprocessor) or the Flash ROM is replaced, conrm the following.
PWB Name Ref. No. Description
After
replaced
Remark
HDMI IC201 R5F5630ECDFB B SOFTWARE: Main
HDMI IC231 R5F3650KNFB B SOFTWARE: Sub
HDMI IC410 MX29LV160DBTI-70G B SOFTWARE: DSP ROM
HDMI IC406 EPM240T100C5N B SOFTWARE: Audio PLD
HDMI IC155 MX25L6406EM2I-12G B SOFTWARE: Video OSD ROM
After replacing
A
: Mask ROM (With software). No need for write-in of software to the microprocessor.
B : Flash ROM (With software). Usually, no need for write-in of software. But, when the software was updated, you should
write the new software on the microprocessor or ash ROM. Please check the software version.
C
: Empty Flash ROM (Without software). You should write the software on the microprocessor or ash ROM.
Refer to "Update procedure" or "writing procedure", when you write the software.
PROCEDURE FOR UPGRADING THE VERSION OF THE FIRMWARE
d
You can update the rmware by downloading the latest version from the Internet.

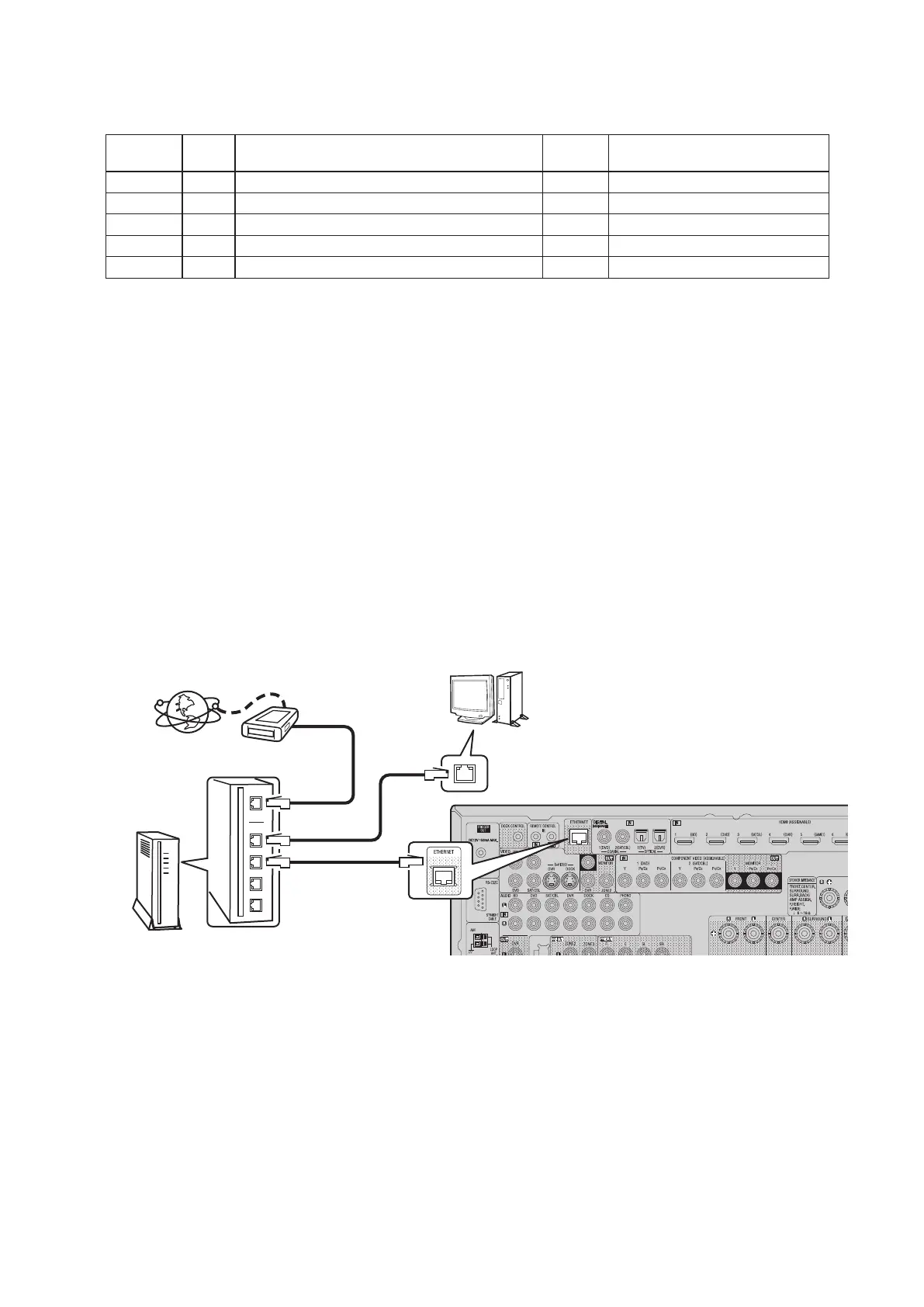

1.1. Connecting to the Network
(1) System requirements
• Internet Connection by Broadband Circuit
• Modem
• Router
• Ethernet cable (CAT-5 or greater recommended)
(2) Setting
1.2. Checkingandupdatingthermware
Check if the latest rmware exists. You can also check approximately time required to complete an update.
(1) Press the MENU button on the remote control to display the GUI menu.
(2) Use the cursor buttons to select "System Setup" → "Option Setup" → "Firmware Update" → "Check For Update".
(3) Press the ENTER button.
• The latest version of the rmware on the website is displayed.
• If the rmware on the website is latest, proceed to (4).
• If the latest rmware has been already installed, press the MENU button to close the menu.
(4) Use the cursor buttons to select "Update", then press the ENTER button.
• During update, the power indicator lights in red and the GUI screen disappears. And an approximately remaining
time is indicated on the display.
• When updating is complete the power indicator lights in green and normal status is resumed.
(5) Press the MENU button to close the menu.

Denon AVR-3312 Specifications

General

Impedance	8 Ω
Receiver type	Surround
Frequency range	10 - 100000 Hz
Speaker selector	A+B
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.8 %
Power output per channel (1KHz@8 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	125 W
HDMI in	7
Audio (L/R) in	8
Composite video in	5
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
Composite video out	3
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Internet radio services supported	Last.fm, Napster
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Display	VFL
HDMI version	1.4a
Product color	Black
Audio decoders	Dolby Pro Logic IIz, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	iPad, iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W
Card reader integrated	-
Cables included	AC

Weight and Dimensions

Depth	382 mm
Width	434 mm
Height	167 mm
Weight	11800 g
