Denon AVR-3312 Service Manual

74
ADJUSTMENT
Audio Section
Adjusting Idling Current
Required measurement equipment: DC Voltmeter
1. Preparation
(1) Avoid direct blow from an air conditioner or an electric fan, and adjust the unit at normal room temperature
15 °C ~ 30 °C (59 °F ~ 86 °F).
(2) Presetting
• POWER (Power source switch) STANDBY
• SPEAKER (Speaker terminal) No load
(Do not connect speaker, dummy resistor, etc.)
2. Adjustment
(1) Remove top cover and set VR714,VR724,VR734,VR744,VR754,VR764,VR774 on 7CH AMP UNIT at fully
counterclockwise (c) position.
(2) Connect DC Voltmeter to test points (FRONT-Lch: CN715, FRONT-Rch: CN725, CENTER ch: CN735, SURROUND-
Lch: CN745, SURROUND-Rch: CN755, SURROUND-BACK Lch: CN765, SURROUND-BACK Rch: CN775.
(3) Connect power cord to AC Line, and turn power switch "ON".
(4) Presetting.
MASTER VOLUME : "---" counterclockwise (
c
min.)
SPEAKER (Speaker terminal) : No load
(Do not connect speaker, dummy resistor, etc.)
MODE : MCH STEREO
FUNCTION : DVD
(5) Within 2 minutes after the power on, turn VR714 clockwise (x) to adjust the TEST POINT voltage to
6.5mV ± 0.5mV DC.
(6) After 10 minutes from the preset above, turn VR714 to set the voltage to 8mV ± 0.5mV DC.
(7) Adjust the Variable Resistors of other channels in the same way.

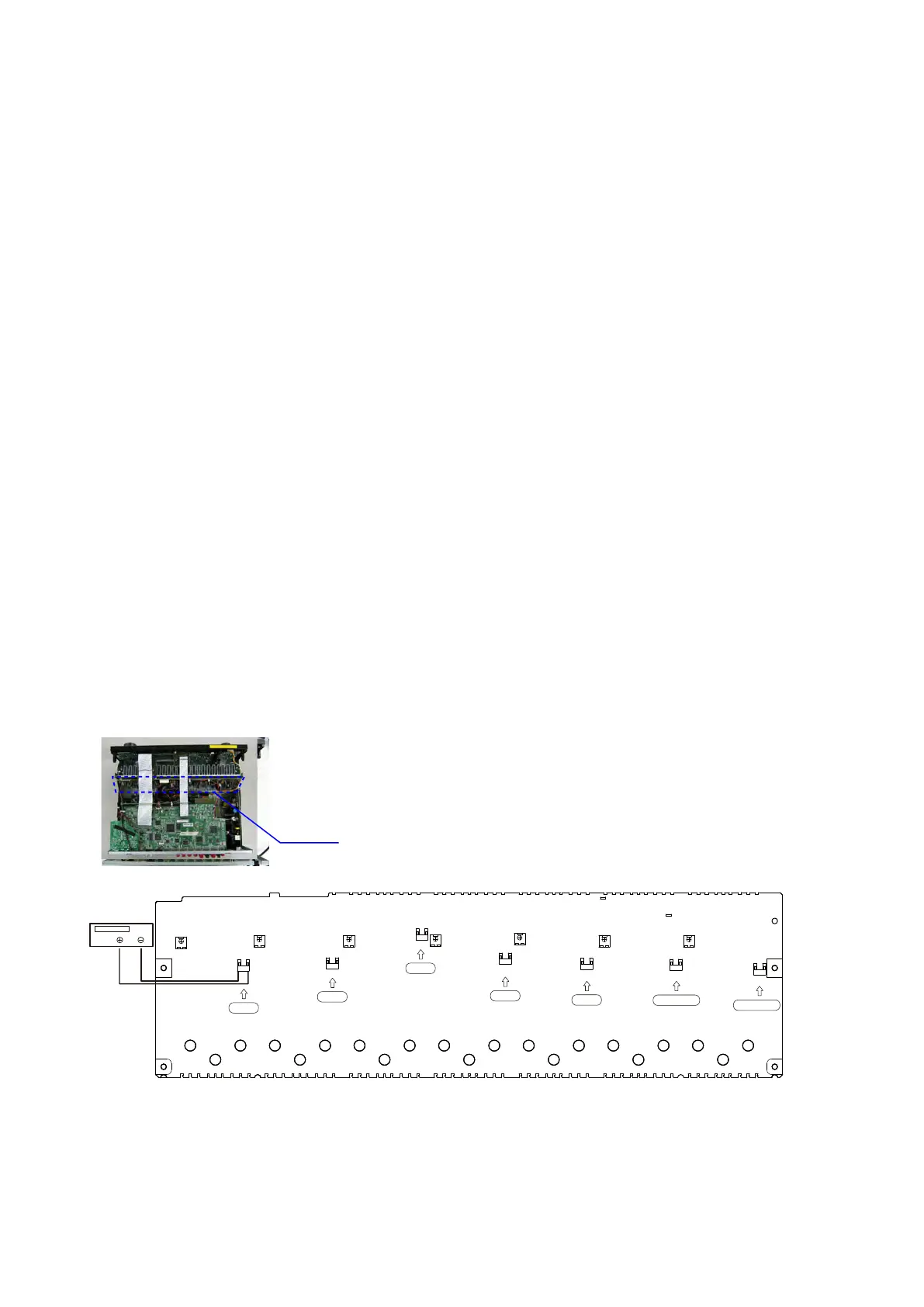

DC Voltmeter
F Lch
S Lch
F Rch
C ch
S Rch
S Back Lch
S Back Rch
CN715
VR744
CN745
VR734
VR754
CN755
VR724
CN725
VR774
CN765
VR714
VR764
CN735
CN775
AMP UNIT

Denon AVR-3312 Specifications

General

Impedance	8 Ω
Receiver type	Surround
Frequency range	10 - 100000 Hz
Speaker selector	A+B
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.8 %
Power output per channel (1KHz@8 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	125 W
HDMI in	7
Audio (L/R) in	8
Composite video in	5
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
Composite video out	3
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Internet radio services supported	Last.fm, Napster
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Display	VFL
HDMI version	1.4a
Product color	Black
Audio decoders	Dolby Pro Logic IIz, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	iPad, iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W
Card reader integrated	-
Cables included	AC

Weight and Dimensions

Depth	382 mm
Width	434 mm
Height	167 mm
Weight	11800 g
