Denon AVR-3312 Service Manual

177
AD8195ACPZ(HDMI:IC101)
AD8195ACPZTerminlFunction
NOTES
1. THE AD8195 LFCSP HAS AN EXPOSED PAD ON THE UNDERSIDE OF
THE PACKAGE THAT AIDS IN HEAT DISSIPATION. THE PAD MUST BE
ELECTRICALLY CONNECTED TO THE AVEE SUPPLY PLANE IN ORDER
TO MEET THERMAL SPECIFICATIONS.
AD8195
TOP VIEW
(Not to Scale)
1IN0
2IP0
3IN1
4IP1
5VTTI
6IN2
7IP2
10AVCC
30 AVCC
29 PE_EN
28 TX_EN
27 AVEE
26 AVCC
25 AVCC
24 AVEE
21 COMP
40 SCL_IN
39 SDA_IN
38 CEC_IN 37 AVEE
36 VREF_IN
35 SCL_OUT
34 SDA_OUT 31 CEC_OUT
11ON0
12OP0
13VTTO
14ON1
15OP1
16AVCC 17ON2
20OP3
9IP3
8IN3
22 AVCC
23 AVCC
19ON3
18OP2
32 AMUXVCC
33 VREF_OUT
PIN 1
INDICATOR
07049-003
AD8195
Rev. 0 | Page 6 of 20

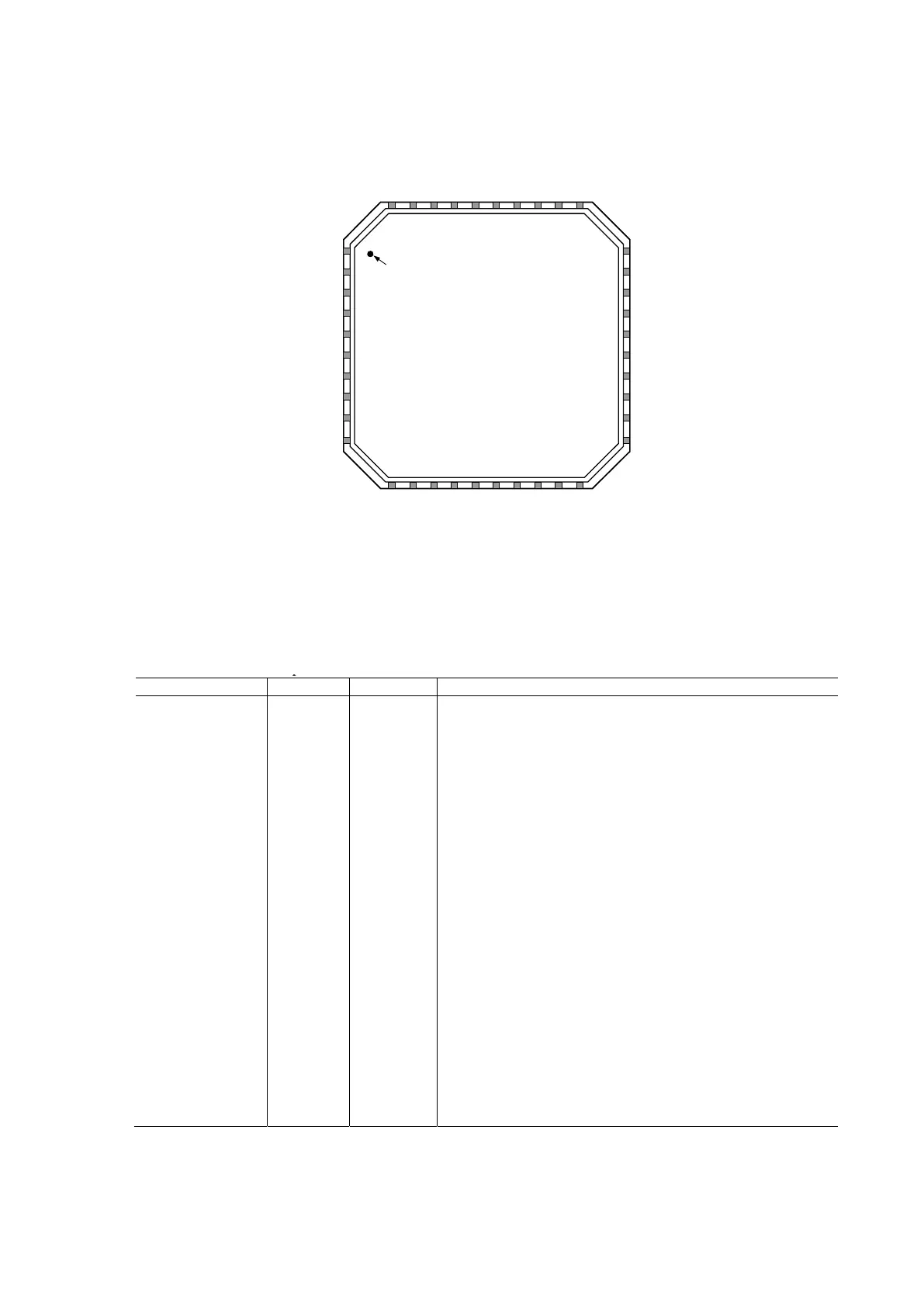

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
NOTES
1. THE AD8195 LFCSP HAS AN EXPOSED PAD ON THE UNDERSIDE OF
THE PACKAGE THAT AIDS IN HEAT DISSIPATION. THE PAD MUST BE
ELECTRICALLY CONNECTED TO THE AVEE SUPPLY PLANE IN ORDER
TO MEET THERMAL SPECIFICATIONS.
AD8195
TOP VIEW
(Not to Scale)
1IN0
2IP0
3IN1
4IP1
5VTTI
6IN2
7IP2
10AVCC
30 AVCC
29 PE_EN
28 TX_EN
27 AVEE
26 AVCC
25 AVCC
24 AVEE
21 COMP
40 SCL_IN 39 SDA_IN 38 CEC_IN 37 AVEE 36 VREF_IN 35 SCL_OUT 34 SDA_OUT 31 CEC_OUT
11ON0 12OP0 13VTTO 14ON1 15OP1 16AVCC 17ON2 20OP3
9IP3
8IN3
22 AVCC
23 AVCC
19ON3 18OP2
32 AMUXVCC 33 VREF_OUT
PIN 1
INDICATOR
07049-003
Figure 3. Pin Configuration
Table 6. Pin Function Descriptions
Pin No. Mnemonic Type
1
Description
1 IN0 HS I High Speed Input Complement.
2 IP0 HS I High Speed Input.
3 IN1 HS I High Speed Input Complement.
4 IP1 HS I High Speed Input.
5 VTTI Power Input Termination Supply. Nominally connected to AVCC.
6 IN2 HS I High Speed Input Complement.
7 IP2 HS I High Speed Input.
8 IN3 HS I High Speed Input Complement.
9 IP3 HS I High Speed Input.
10, 16, 22, 23, 25, 26, 30 AVCC Power Positive Analog Supply. 3.3 V nominal.
11 ON0 HS O High Speed Output Complement.
12 OP0 HS O High Speed Output.
13 VTTO Power Output Termination Supply. Nominally connected to AVCC.
14 ON1 HS O High Speed Output Complement.
15 OP1 HS O High Speed Output.
17 ON2 HS O High Speed Output Complement.
18 OP2 HS O High Speed Output.
19 ON3 HS O High Speed Output Complement.
20 OP3 HS O High Speed Output.
21 COMP Control Power-On Compensation Pin. Bypass to ground through a 10 μF capacitor.
24, 27, 37, Exposed Pad AVEE Power Negative Analog Supply. 0 V nominal.
28 TX_EN Control High Speed Output Enable Parallel Interface.
29 PE_EN Control High Speed Preemphasis Enable Parallel Interface.
31 CEC_OUT LS I/O CEC Output Side.
32 AMUXVCC Power Positive Auxiliary Buffer Supply. 5 V nominal.

Denon AVR-3312 Specifications

General

Impedance	8 Ω
Receiver type	Surround
Frequency range	10 - 100000 Hz
Speaker selector	A+B
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.8 %
Power output per channel (1KHz@8 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	125 W
HDMI in	7
Audio (L/R) in	8
Composite video in	5
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
Composite video out	3
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Internet radio services supported	Last.fm, Napster
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Display	VFL
HDMI version	1.4a
Product color	Black
Audio decoders	Dolby Pro Logic IIz, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	iPad, iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W
Card reader integrated	-
Cables included	AC

Weight and Dimensions

Depth	382 mm
Width	434 mm
Height	167 mm
Weight	11800 g
