23
Connecting Other Sources Connecting Other Sources
ENGLISH
ENGLISH
• When the surround back’s power amplifier is assigned to the ZONE2 or ZONE3 output channel
at “Power Amp Assign” in the “System Setup Menu”, the surround back speaker terminals can
be used as the ZONE2 or ZONE3 speaker out terminals ( page 55).

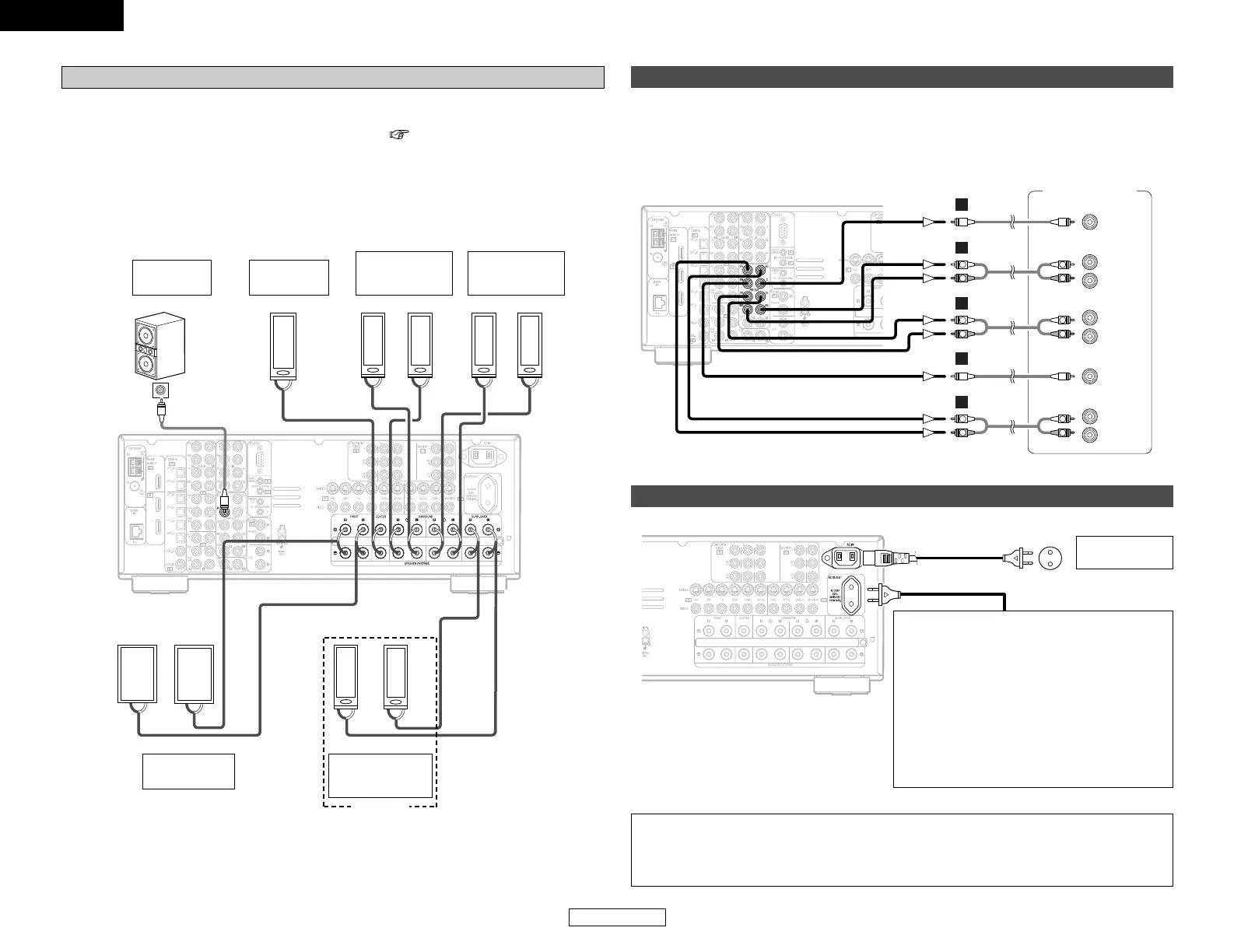

• The connections diagram below is an example for when the surround back speaker is assigned
to the ZONE2 stereo 2 channel.
In this case, surround back speaker out can not be used for MAIN ZONE.
ZONE2 / ZONE3 speaker out connections
><
><
><
><><><><
><
><
IN
(
R
) (
L
) (
L
) (
R
)
(
L
)
(
R
)
(
L
)
(
R
)
Connection
terminal for
subwoofer
with built-in
amplifier
(subwoofer),
etc.
Surround
speaker
systems (A)
Subwoofer
Surround
speaker
systems (B)
ZONE2
Front speaker
systems
Front speaker
systems
Center
speaker
ZONE2
• Use these terminals if you wish to connect external power amplifier(s) to increase the power of
the front, center, surround and surround back sound channels, or for connection to powered
loudspeakers.
• When using only one surround back speaker, connect it to the left channel.
Connecting the pre-out terminals
Power amplifier
R
SURROUND
BACK
L
R
SURROUND
L
R
FRONT
L
CENTER
SUB-
WOOFER
R
L
R
L
B
A
B
A
R
L
R
L
R
L
R
L
A
Connecting the power supply cord
AC 230 V, 50 Hz
AC outlets
(wall)
Power supply cord
(Supplied)
NOTE:
• Only use the AC OUTLET for audio equipment. Never use it for hair driers, TVs or other
electrical appliances.
• Insert the plugs securely. Incomplete connections will result in the generation of noise.
AC OUTLET
• SWITCHED (total capacity – 100 W)
The power to the outlet is turned on and off in
conjunction with the POWER switch on the
main unit, and when the power is switched
between on and standby from the remote
control unit.
No power is supplied from this outlet when
this unit’s power is at standby. Never connect
equipment whose total power consumption
exceeds 100 W.
To Next Page
