Denon AVR-3806 User Manual

55
Advanced Operation Advanced Operation
Multi-zone playback using the SPEAKER terminals
2 When using the Surround back amplifier as the ZONE2/ZONE3 output
• When the surround back’s power amplifier is assigned to the ZONE2 or ZONE3 output channel at “Power Amp Assign” in the
“System Setup Menu”, the surround back speaker terminals can be used as the ZONE2 or ZONE3 speaker out terminals ( page
70).

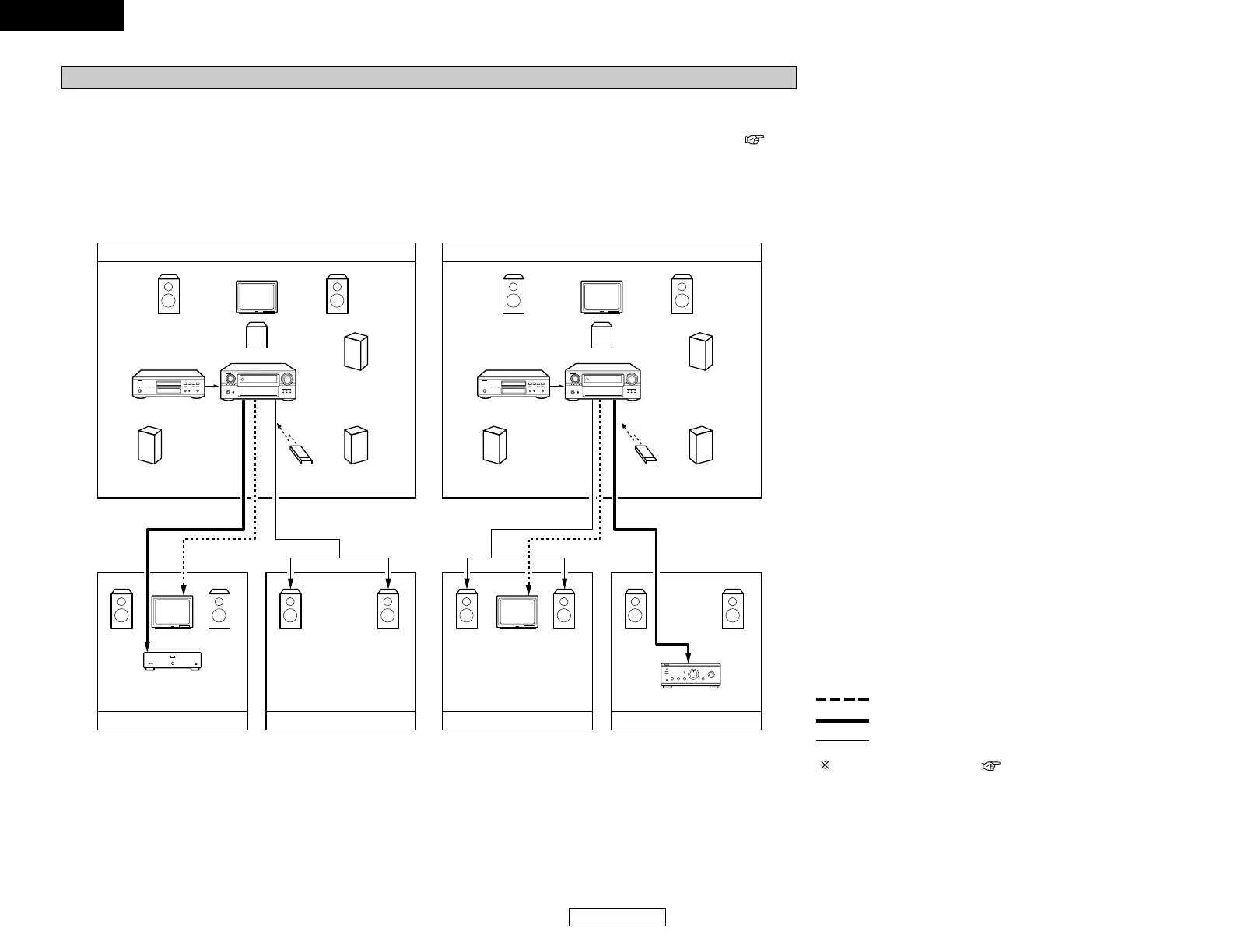

[System configuration and connections example]
Using external amplifier as the ZONE2 and using this AVR-
3806 internal amplifier as the ZONE3.
[System configuration and connections example]
Using external amplifier as the ZONE3 and using this AVR-
3806 internal amplifier as the ZONE2.
AVR-3806 AVR-3806
DVD player
Input
Monitor
Monitor
MAIN ZONE 5.1-channel systems
ZONE 2 ZONE 3
ZONE2
AUDIO OUT (VARIABLE OUT)
MULTI ZONE
SPEAKER OUT
ZONE2
VIDEO OUT
Power Amplifier
SYSTEM REMOTE
CONTROL UNIT RC-1024
DVD player
Input
Monitor
Monitor
MAIN ZONE 5.1-channel systems
ZONE 2 ZONE 3
ZONE3
AUDIO OUT (FIXED OUT)
MULTI ZONE
SPEAKER OUT
ZONE2 VIDEO OUT
Premain Amplifier
SYSTEM REMOTE
CONTROL UNIT RC-1024
C
FL FR
SL
SW
SR
B
B
C
FL FR
SL
SW
SR
B
B
: MULTI SOURCE AUDIO signal cable
: MULTI SOURCE VIDEO signal cable
: SPEAKER cable
Refer to “Connections” ( page 23).
