54
Advanced Operation Advanced Operation
•When the outputs of the “ZONE2 (ZONE3)” OUT terminals are wired and connected to power amplifiers installed in other rooms,
different sources can be played in rooms other than the MAIN ZONE in which this unit and the playback devices are installed. (Refer
to ZONE2 (ZONE3) on the diagram below.)
• Settings can be made at “Power Amp Assign” in the “System Setup Menu” so that the same source as the ZONE2 (ZONE3) pre-
out terminals can be played from the speakers connected to the ZONE2 (ZONE3) speaker terminals ( page 70).
To control playback devices other than the ones above, either use that device’s remote control unit or preset a separately sold
programmable remote control unit.
Multi zone music entertainment system
• For instructions on installation and operation of separately sold devices, refer to the devices’ operating instructions.
Multi-zone playback using the ZONE2 and ZONE3 PREOUT terminals
2 When using the power amplifier as the MAIN ZONE output
• The AVR-3806 is equipped with pre-out terminals for which the volume is adjustable and video output terminals (composite and S-
Video) as the ZONE2 output terminals, and fixed output level as the ZONE3 output terminals.

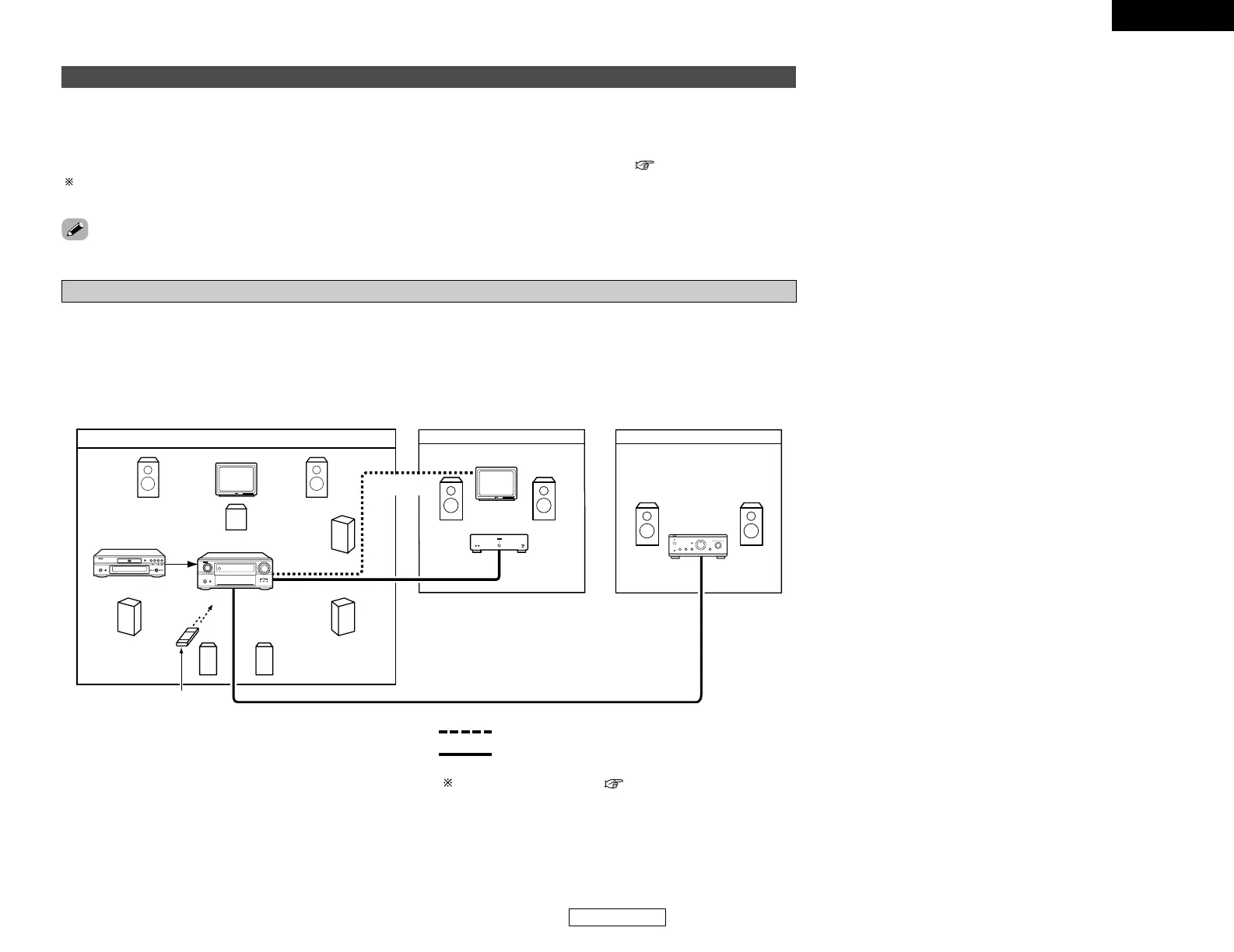

[System configuration and connections example]
Using external amplifier.
: MULTI SOURCE AUDIO signal cable
: MULTI SOURCE VIDEO signal cable
Refer to “Connections” ( page 22).
ENGLISH
ENGLISH
To Next Page
