DITEC LCA70 User Manual

13
IP2368EN
EN
Quick configuration wizard
Selection of
automation operation
mode
Selection of the
number of gate wings
Contact command
operation 30-5
Automatic closure
enabling
Automatic
closing time
Selection of device
connected to terminals
1-6
Selection of device
connected to terminals
1-8
Radio receiver
operation
Setting of radio coded
messages
Remote control
storage
Confirm
configuration

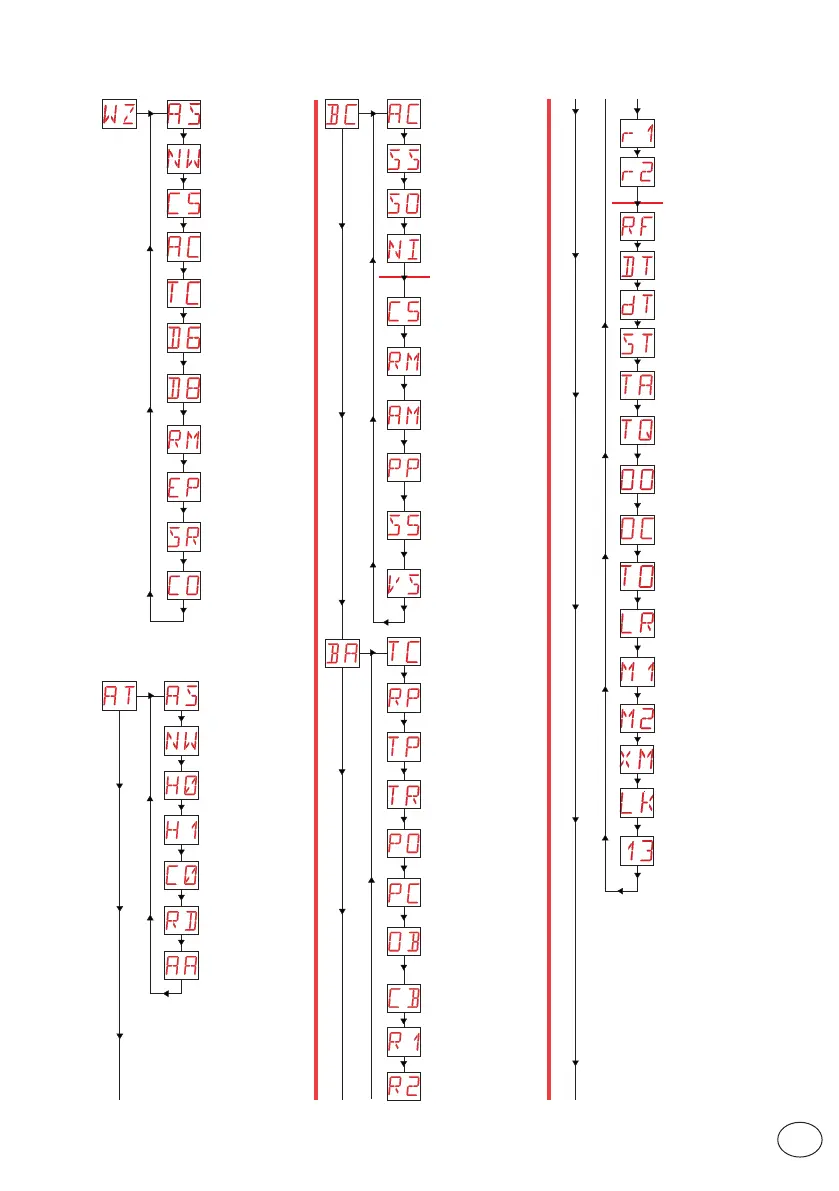

9.3 Menu map
Selection of
automation
operation mode
Selection of the number
of gate wings
Resetting of factory
settings
Activation of advanced
parameters menu
Residential 0
Residential 1
Condominium 0
Automatic configurations
Automatic closure
enabling
Automation status
at switch-on
Reversal safety
operation
Activation of anti-
freeze system NIO
Contact command
operation 30-5
Radio receiver
operation
AUX1 board
operation
Setting of step-by-step
sequence via command
30-5
Duration of STOP in
step-by-step sequence
via command 30-5
Check on mechanical
stops
Standard settings
*
Automatic closing
time after partial
opening
Adjustment of approach
speed during closing
Deceleration distance on
opening
Automatic
closing time
Partial opening
measurement adjustment
Basic adjustments
Adjustment of thrust on
obstacles approaching
during opening
Adjustment of thrust on
obstacles approaching
during closing
Motor 1 delay
time
Motor force adjustment
Adjustment of obstacle
recognition time at normal
speed
Adjustment of obstacle
recognition time during
deceleration
Start-up time adjustment
Adjustment of acceleration
time on closure
Adjustment of approach
speed during opening
Obstacle detection limit
during opening
Obstacle detection limit
during closure
Delay time of motor 2
during opening
Adjustment of acceleration
time on opening
*
Output function
Output 13 operating mode
Electric lock release time
Operation time - motor 1
Operation time - motor 2
Operation time delta
during closing without
mechanical end stops
Adjustment of thrust on
obstacles during opening
Deceleration distance on
closing
Adjustment of thrust on
obstacles during closing
