10. Setting up product for first use
Use the WIZARD (WZ) wizard or the level two AT menu (automatic configuration) to set the product
up rapidly with a quick configuration procedure [see parag. 11.2].
For detailed, customised configuration, use the main menus , , , , , .
10.1 WZ configuration wizard menu
To access the WZ quick configuration wizard menu:
Hold down the ENTER button for 2 seconds.
Once the message OK stops flashing, the first menu parameter:
To set a parameter:
1. Press ENTER to access the configuration items.
2. Scroll UP/DOWN the possible options.
3. To confirm, press the ENTER button for 2 seconds. The selected value flashes and when it has
finished, the next parameter appears.
List of parameters in WIZARD menu:
→
ENTER
is displayed for 2 sec.

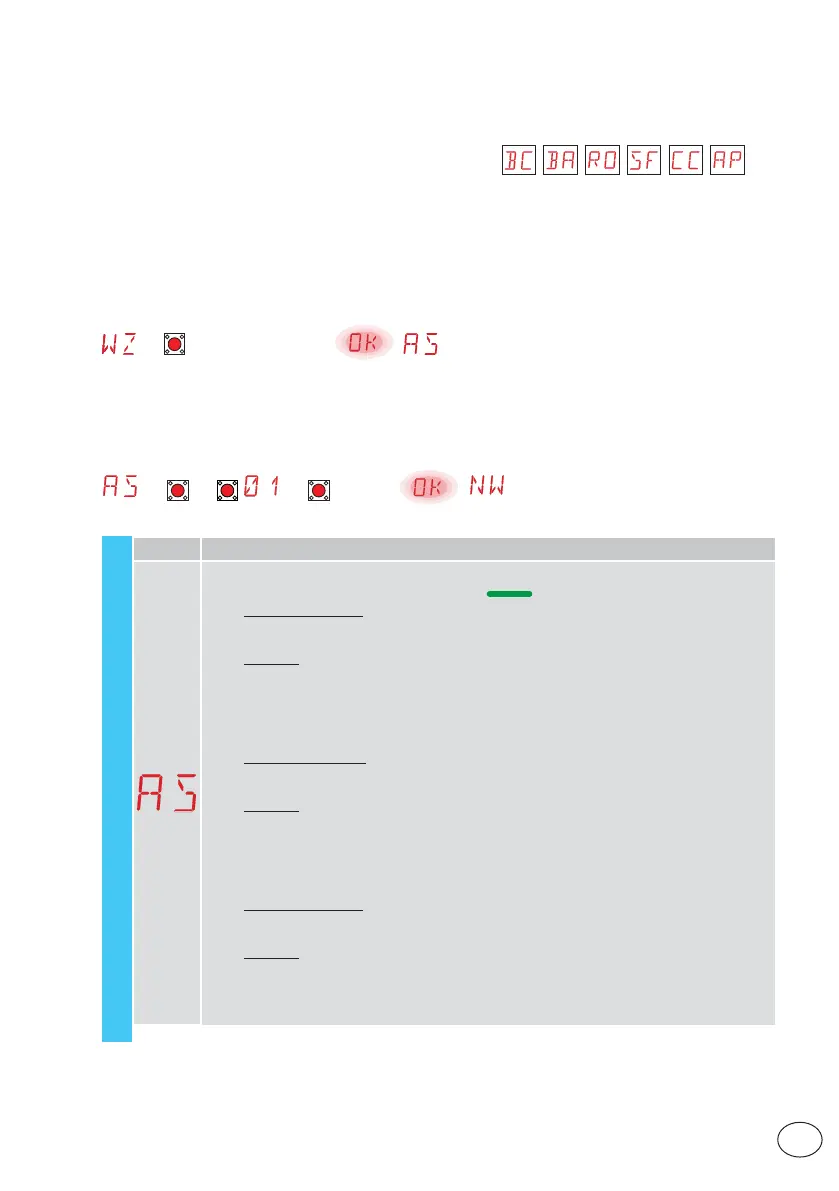

WZ - Quick configuration wizard
Display Description
• AS - Motor operating mode
• 00. Automatic operation with deceleration (default)
Recommended use: for electromechanical motors installed on gates with unimpeded
movement throughout entire stroke, and which use mechanical stops to determine the
opening and closing strokes for every operation.
Features:
• Mechanical stop check function.
• Deceleration control.
• Obstacle detection with reversal.
• Force set at maximum value possible.
• 01. Automatic operation without deceleration
Recommended use: for electromechanical motors installed on gates with impeded
movement in proximity of outermost opening and closing positions, and which use
mechanical stops to determine the opening and closing strokes for every operation.
Features:
• Mechanical stop check function.
• Constant speed throughout entire stroke.
• Obstacle detection with reversal.
• Force set at maximum value possible.
• 02. Timed operation with deceleration
Recommended use: for electromechanical or hydraulic motors installed on gates with
unimpeded movement throughout entire stroke, and which do not provide for mechanical
stops on opening except as an emergency measure in case of overrun.
Features:
• Timed stroke based on M1 and M2 values.
• Deceleration control.
• Obstacle detection with reversal.
• Force set at maximum value possible.
