NOTE: to check if the parameters have actually been modified, quit the relative pa-
rameter and then access it again. The modifications will take effect from the next
operation.
From the main menu you can access the second level menu as follows:
• use the
UP
and
DOWN
keys to select the required function;
• press
ENTER
to confirm.
After confirming the selection, you access the second level menu.
For each function of the main menu, there are also additional configurations that can be viewed
by enabling the
function (see the following paragraph). The factory settings for the various
second level menu parameters are underlined in green.
AT - Automatic configuration

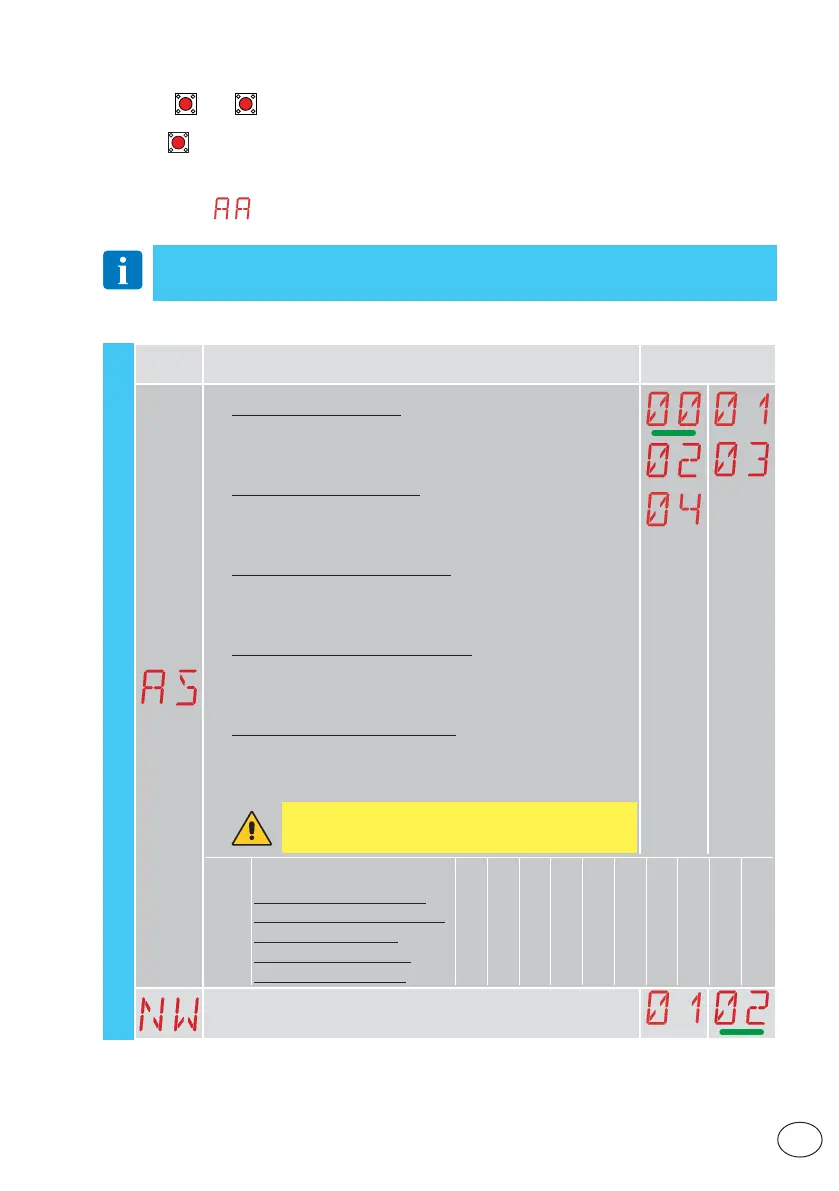

11.2 Level two menu - AT (Automatic Configuration)
Display Description
Selections
available
AS - Motor operating mode
- 0.
Automatic with deceleration
• Checking of mechanical end stops
• Control of deceleration
• Obstacle detection with reversal
• Maximum force value
- 1.
Automatic without deceleration
• Checking of mechanical end stops
• Constant speed throughout entire stroke
• Obstacle detection with reversal
• Maximum force value
- 2. Timed operation with deceleration
• Timed stroke based on M1 and M2 values
• Control of deceleration
• Obstacle detection with reversal
• Maximum force value
- 3. Timed operation without deceleration
• Timed stroke based on M1 and M2 values
• Constant speed throughout entire stroke
• Obstacle detection with reversal
• Maximum force value
- 4. Timed operation with force limiting
• Timed stroke based on M1 and M2 values
• Constant speed throughout entire stroke
• Obstacle detection not activated
• Reduced force value
WARNING: this procedure may only be carried out if the
gate is fitted with self-monitoring safety sensing edges as
the obstacle recognition function is disabled.
Value Standard PO PC OB CB VS R1 R2 r1 r2 RF
0 Automatic with deceleration 13 13 10 10 ON 10 10 15 15 99
1
Automatic without deceleration 25 25 5 5 ON 10 10 10 10 99
2
Timed with deceleration 13 13 10 10 OFF 10 10 15 15 99
3
Timed without deceleration 25 25 5 5 OFF 10 10 10 10 99
4
Timed with force limiting 25 25 5 5 OFF 99 99 99 99 50
NW - Selection of the number of gate wings
In the case of automations with a single gate wing, connect motor 1.
