11.3 Level two BC menu (Basic settings)

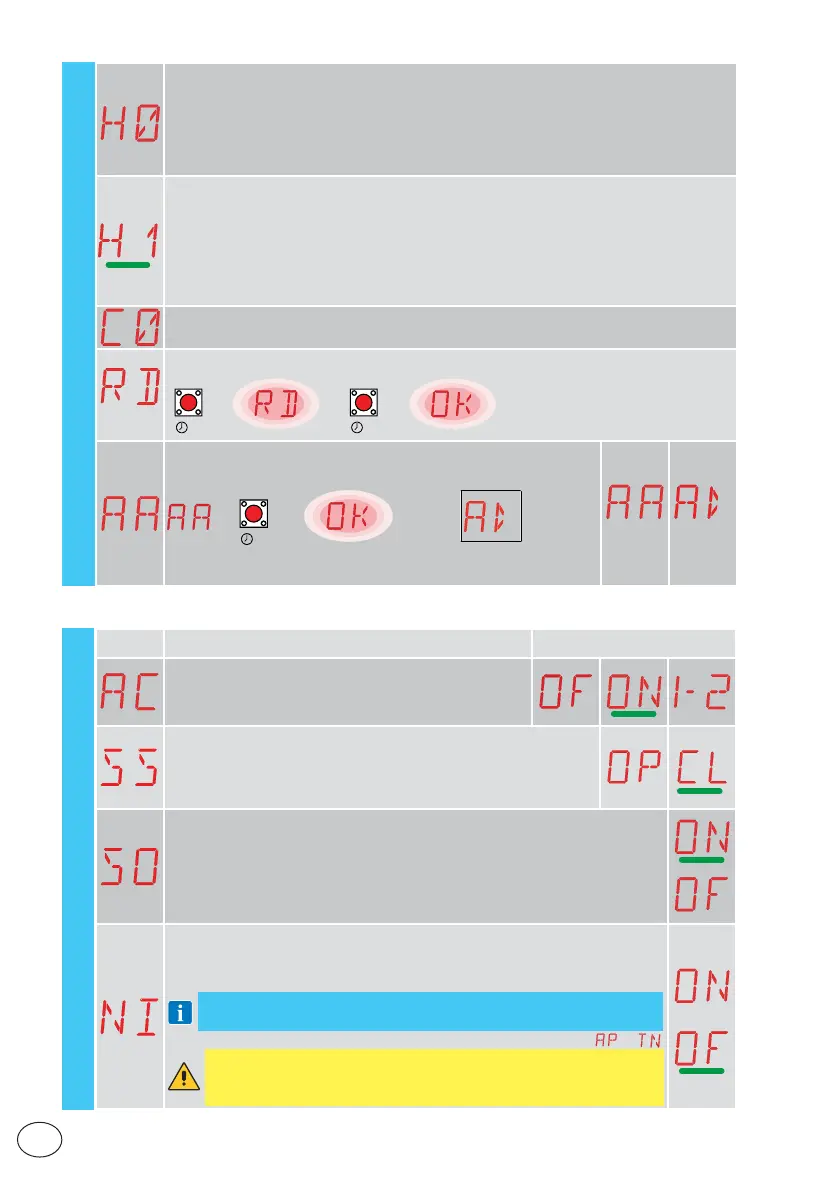

BC - Basic settings
Display Description Selections available
AC - Enabling of automatic closure
OF - Disabled
ON - Enabled
1-2 - Dependent on input 30-2
SS - Selection of automation status at start-up
OP - Open
CL - Closed
Indicates how the control panel considers the automation at the time
of switch-on, or after a POWER RESET command.
SO - Enabling of reversal safety contact functioning during opening
ON - Enabled
OF - Disabled
When enabled (ON) with the automation idle, if the contact 1-8 is open, all oper-
ations are prevented.
When disabled (OF) with the automation idle, if the contact 1-8 is open, opening
operations are permitted.
NI - Enabling of NIO electronic anti-freeze system
ON - Enabled
OF - Disabled
When enabled (ON), it maintains the efficiency of the motor even at low ambient temperatures.
NOTE: for correct operation, the control panel must be exposed to the same
ambient temperature as the motors.
The intervention temperature for the NIO system can be set by selecting
→ .
WARNING: When the NIO system is in operation, the 230VAC (LP) flashing light
output will remain activated. The NIO function cannot be used when motors
with limit switches series connected to the phases (FA/FC= MT) are used.
H0 - Predefined setting, residential use 0, detached house
This selection loads predefined values for certain standard parameters:
AC - Enable automatic closure : disabled
C5 - step-by-step/opening command operation : Step-by-step
RM - remote control operation : Step-by-step
AM - AUX1 and AUX2 plug-in board operation : Step-by-step
SS - Selection of automation status at start-up : open
H1 - Predefined setting, residential use 1, detached house
This selection loads predefined values for certain standard parameters:
AC - enabling of automatic closing : enabled
TC - setting of automatic closing time : 1 minute
C5 - step-by-step/opening command operation : Step-by-step
RM - remote control operation : Step-by-step
AM - AUX1 and AUX2 plug-in board operation : Step-by-step
SS - Selection of automation status at start-up : closed
C0 - Setting for condominium use
Opening and automatic closure at a preset value, with status at start-up closed.
RD - Resetting of factory settings (SETTINGS RESET)
→→
→
2”
ENTER
2”
ENTER
AA - Temporary activation of additional configurable parameters for
each main menu function
→
2”
ENTER
After activation you can scroll through the third level menus.
The third level menus are activated for 30 min.
