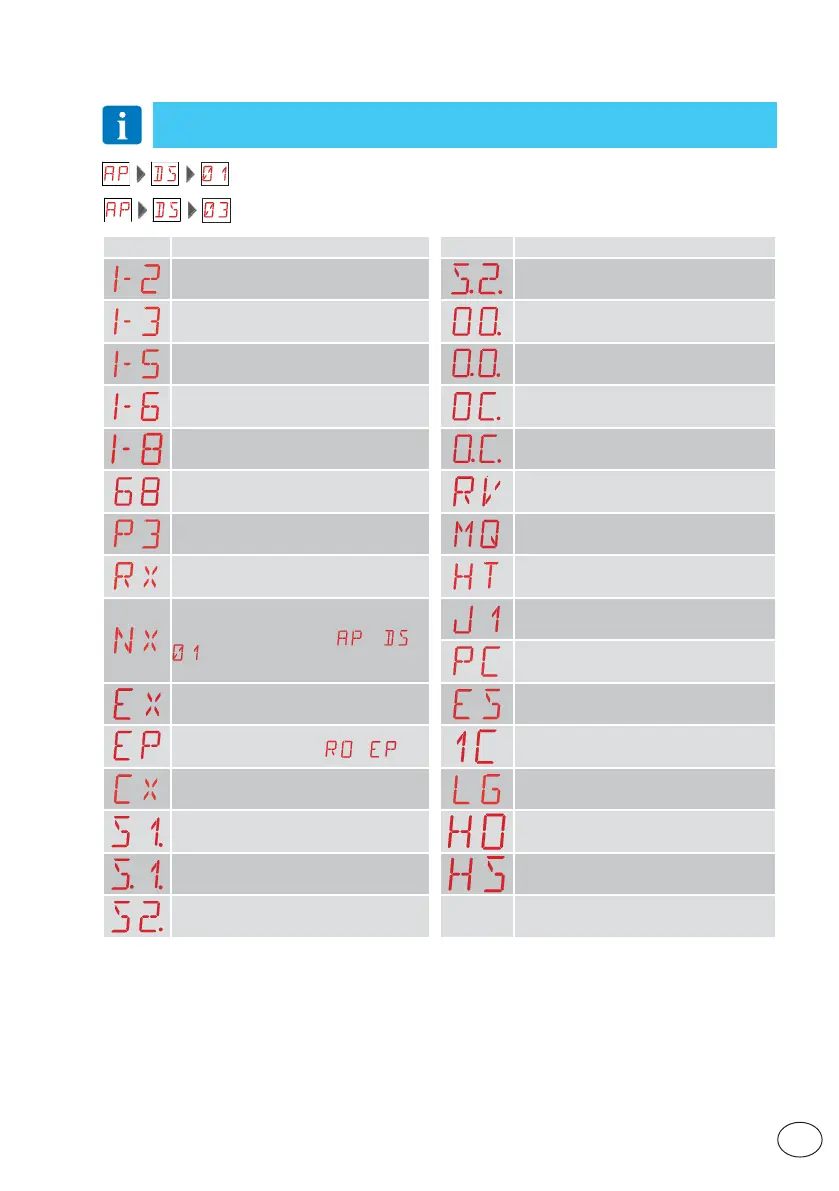

13.2 Display of safety devices and commands
NOTE: the safety device and command display mode is only visible with Display visual-
isation mode set at 01 or 03.
Display Description Display Description
1-2 - Automatic closure enable command. S.2. - Stop detection during aperture oper-
ation - motor 2.
1-3 - Opening command. OO. - Obstacle detection limit reached dur-
ing aperture operation - motor 1.
1-5 - Step-by-step command. OO. - Obstacle detection limit reached dur-
ing aperture operation - motor 2.
1-6 - Safety device with opening and
closing stop.
OO. - Obstacle detection limit reached
during closure operation - motor 1.
1-8 - Safety device with reversal during
closing operation.
OO. - Obstacle detection limit reached
during closure operation - motor 2.
68 - Device connected simultaneously to
terminals 1-6 and 1-8.
RV - Enable/disable built-in radio receiver
via RDX.
P3 - Partial opening command. MQ - Mechanical end stop learning opera-
tion in progress.
RX - Radio reception (from any memorised
key of a transmitter stored in memory)
HT - Motor heating(NIO function) in
progress.
NX - Radio reception (from any non-mem-
orised key)
NOTE: with the selection
→ →
, it is also visualised when a command
is received from a non-stored transmitter.
JR1 - Change in jumper JR1 status.
PC - Connected HOST (Personal Computer)
recognised.
EX - Rolling-code radio reception out of
sequence
ES - Switch to Green Mode (energy-saving)
EP - Radio reception not compliant with
parameter configuration
→
1C - Closing operation (1 gate wing at a
time)
CX - Command received from AUX1 board LG - Courtesy light/garden light command
S1. - Stop detection during closure oper-
ation - motor 1.
HO - Pressure hold function activation for
hydraulic pistons
S.1. - Stop detection during closure oper-
ation - motor 2.
HS - Activation of increased thrust force
function in closure operation
S2. - Stop detection during aperture oper-
ation - motor 1.
