DITEC LCA70 User Manual

21
IP2368EN
EN

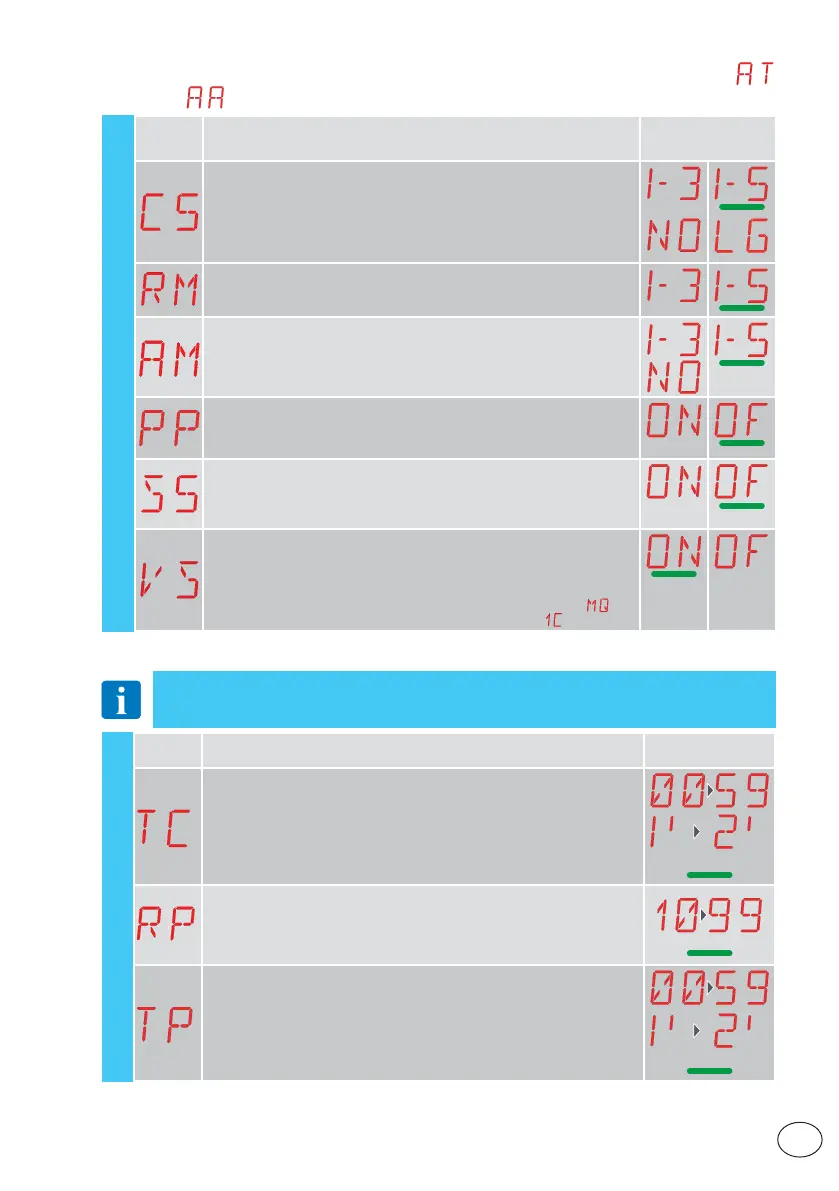

11.3.1 Additional configurable BC level parameters available with
→
enabled
BC - Basic settings
Display Description Selections
available
C5 - Step-by-step/opening operation via 1-5 command (wakeup from
stand-by)
1-3 - Opening
1-5 - Step-by-step
LG - Courtesy light command
NO - Input 5 disabled
RM - Radio receiver operation
1-3 - Opening
1-5 - Step-by-step
AM - Step-by-step/opening operation via command from AUX1 board
1-3 - Opening
1-5 - Step-by-step
NO - Disabled
PP - Setting of step-by-step sequence via command 30-5
ON - Opening-Stop-Closing-Stop-Opening
OF - Opening-Stop-Closing-Opening
S5 - Duration of STOP in step-by-step sequence via command 30-5
ON - Permanent (automatic closure is excluded until a new command
is given)
OF - Temporary (the automatic closure timer intervenes, if enabled)
VS - Checking of mechanical end stops
When enabled (ON), with every power supply connection, the automation
automatically checks the mechanical opening and closing end stops/
stop limit switches.
During the learning operation, the display shows the message
and
the closing operation involves one gate wing at a time (
).
11.4 Level two BA menu (Basic adjustments)
NOTE: make adjustments gradually and only after performing at least three complete
operations to allow the control panel to be set correctly and detect any friction during
operations.
Display Description
Selections
available
TC - Setting of automatic closing time [s]
It is set with different intervals of sensitivity.
from 0” to 59” with intervals of 1 second;
from 1’ to 2’ with intervals of 10 seconds.
1’00”
RP - Adjustment of partial opening measurement [%]
Adjusts the percentage of operation in relation to the total opening of the
automation. Partial opening is performed on gate wing 1.
10 - Minimum
99 - Maximum
50
TP - Setting of automatic closing time after partial opening [s]
It is set with different intervals of sensitivity.
from 0” to 59” with intervals of 1 second;
from 1’ to 2’ with intervals of 10 seconds.
30”
BA
