NOTE: make adjustments gradually and only after performing at least three complete oper-
ations to allow the control panel to be set correctly and detect any friction during operations.

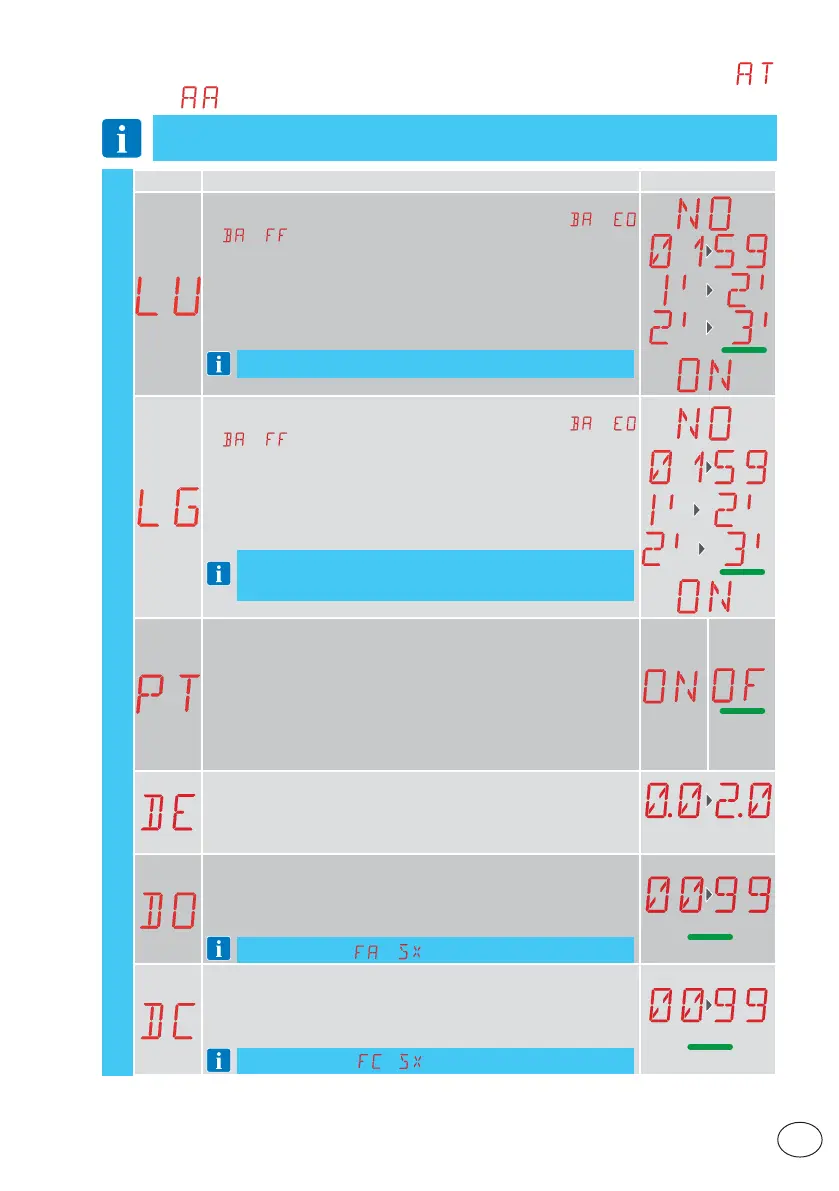

Display Description Selections available
LU - Setting switch-on time for courtesy light (s)
To enable this parameter, set at least one of the selections
→
or
→ as a courtesy light.
It is set with different intervals of sensitivity.
NO - Disabled
- from 01” to 59” with intervals of 1 second
- from 1’ to 2’ with intervals of 10 seconds
- from 2’ to 3’ with intervals of 1 minute
ON - Permanently enabled (switched off via remote control)
NOTE: the courtesy light switches on at the start of each operation.
LG - Switch-on time for independently commanded courtesy light [s]
To enable this parameter, set at least one of the selections
→
or
→ as a courtesy light.
It is set with different intervals of sensitivity.
NO - Disabled
- from 01” to 59” with intervals of 1 second
- from 1’ to 2’ with intervals of 10 seconds
- from 2’ to 3’ with intervals of 1 minute
ON - Switched on and off with remote control
NOTE: the switching on of the light does not depend on the start of
an operation, but can be commanded separately using the special
remote control key.
PT - Fixed partial opening
ON - Enabled
OF - Disabled
If ON, a partial opening command given on the partial opening position
is ignored.
With contact 30-20 closed (for example with the timer or manual se-
lector), the gate will partially open. If it is then fully opened (command
30-3) and reclosed (even with automatic closing), it will stop at the
partial opening position.
DE - Disengagement duration if an edge is triggered [s]
Regulates the duration of the disengagement when an edge (active or
passive) is triggered during opening or closure.
In the case of gates with two wings, it acts on both wings.
00 - Disable.
1.0
DO - Duration of disengagement on stop during opening [s/100]
Regulates the duration of the disengagement on the mechanical
opening stop.
00 - Disabled.
99 - Maximum.
NOTE: not active if →
0.0
DC - Duration of disengagement on stop during closing [s/100]
Regulates the duration of the disengagement on the mechanical
opening stop.
00 - Disabled.
99 - Maximum.
NOTE: not active if → .
0.0
11.8.1 Additional configurable AP level parameters available with
→
enabled
AP - Advanced parameters
