30
IP2368EN
EN

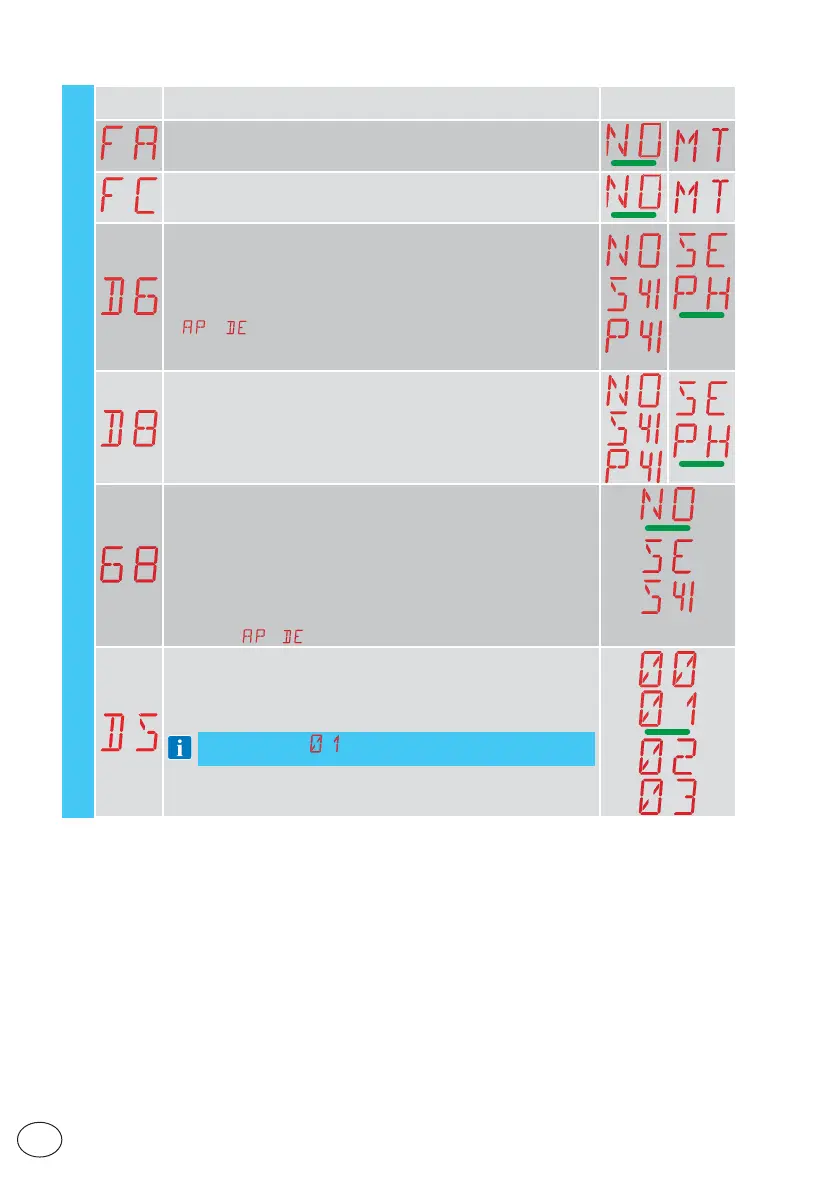

11.8 Level two AP menu (Advanced parameters)
Display Description
Selections
available
FA - Motor 1 and 2 opening limit switch mode
NO: no limit switch (timed operation or with detection of stop)
MT: stop limit switch series connected to the motor phase
FC - Motor 1 and 2 closing limit switch mode
NO: no limit switch (timed operation or with detection of stop)
MT: stop limit switch series connected to the motor phase
D6 - Selection of device connected to terminals 1-6
NO - None
SE - Safety sensing edge (if contact 1-6 opens, 10 cm disengagement
is implemented after stop).
S41 - Safety edge with safety test (if contact 1-6 opens, after the stop
there is a disengagement of a duration depending on the selection
→ )
PH - Photocells
P41 - Photocells with safety test
D8 - Selection of device connected to terminals 1-8
NO - None
SE - Safety edge
S41 - Safety edge with safety test
PH - Photocells
P41 - Photocells with safety test
68 - Selection of the device simultaneously connected to terminals
1-6 and 1-8
NO - None
SE - Safety edge
S41 - Safety edge with safety test
If different from NO, the simultaneous opening of inputs 1-6 and 1-8
causes:
- movement stop and reversal during a closing operation.
- movement stop and disengagement of a duration depending on the
selection
→ during an opening operation.
DS - Setting of display visualisation mode without alarm
00 - No information displayed.
01 - Countdown to automatic closure displayed.
02 - Automation status (see paragraph 13.1).
03 - Commands and safety devices (see paragraph 13.2).
NOTE: the setting allows you to see when a radio transmis-
sion is received, for range checks.
AP - Advanced parameters
