OPERATION
L025317 Issue 5 July 2014 3-9
CONTROLS AND INDICATORS
The User Interface, Indicator Lamps and Software icon functions are
described in the following paragraphs:
Touchpanel and Interface
The software is operated via a PC keyboard, Touchpanel or Web Browser.
An entry is confirmed with the left mouse button if PC or Web browser are
used. The optional Touchpanel if connected, allows entry by touching the
tabs and function keys on the screen. An onboard keyboard is included in
the software.
Note: The Web Browser does not support the message editor.
Controls
ON / OFF BUTTON - Starts and stops the controller and PC unit
KEY SWITCH - Starts and stops the Laser Unit (fans and laser tube start).
The key switch has three positions
•"0" Laser off
•"1" Laser ready
• "*" Laser start.

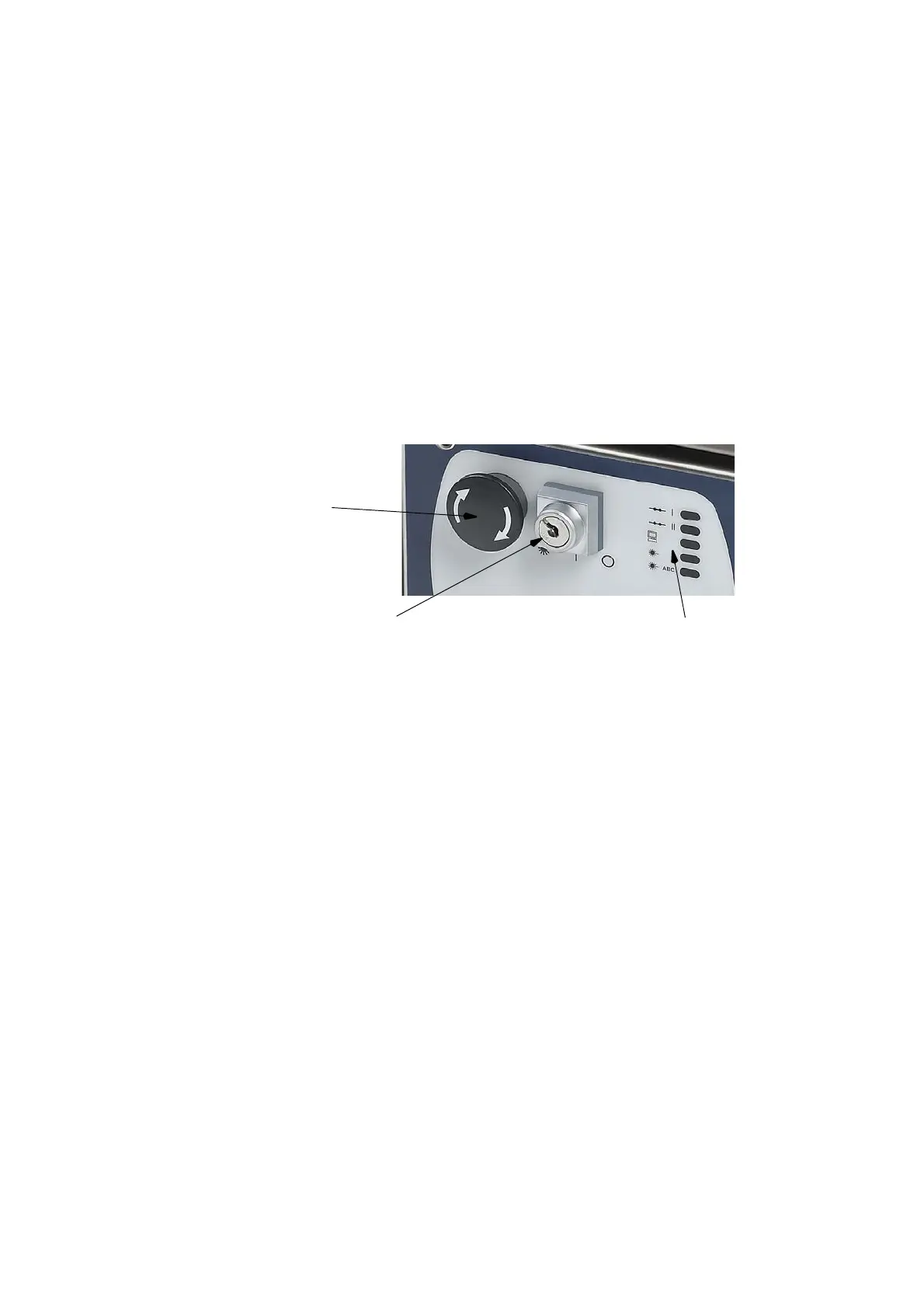

On/Off
Button
Key switch
Indicator Lamps
To Next Page
