Ducati MONSTER S2R 1000 User Manual

10
E
Controls
Warning
This section shows the position and function of the
controls used to drive the motorcycle. Be sure to read this
information carefully before you use the controls.

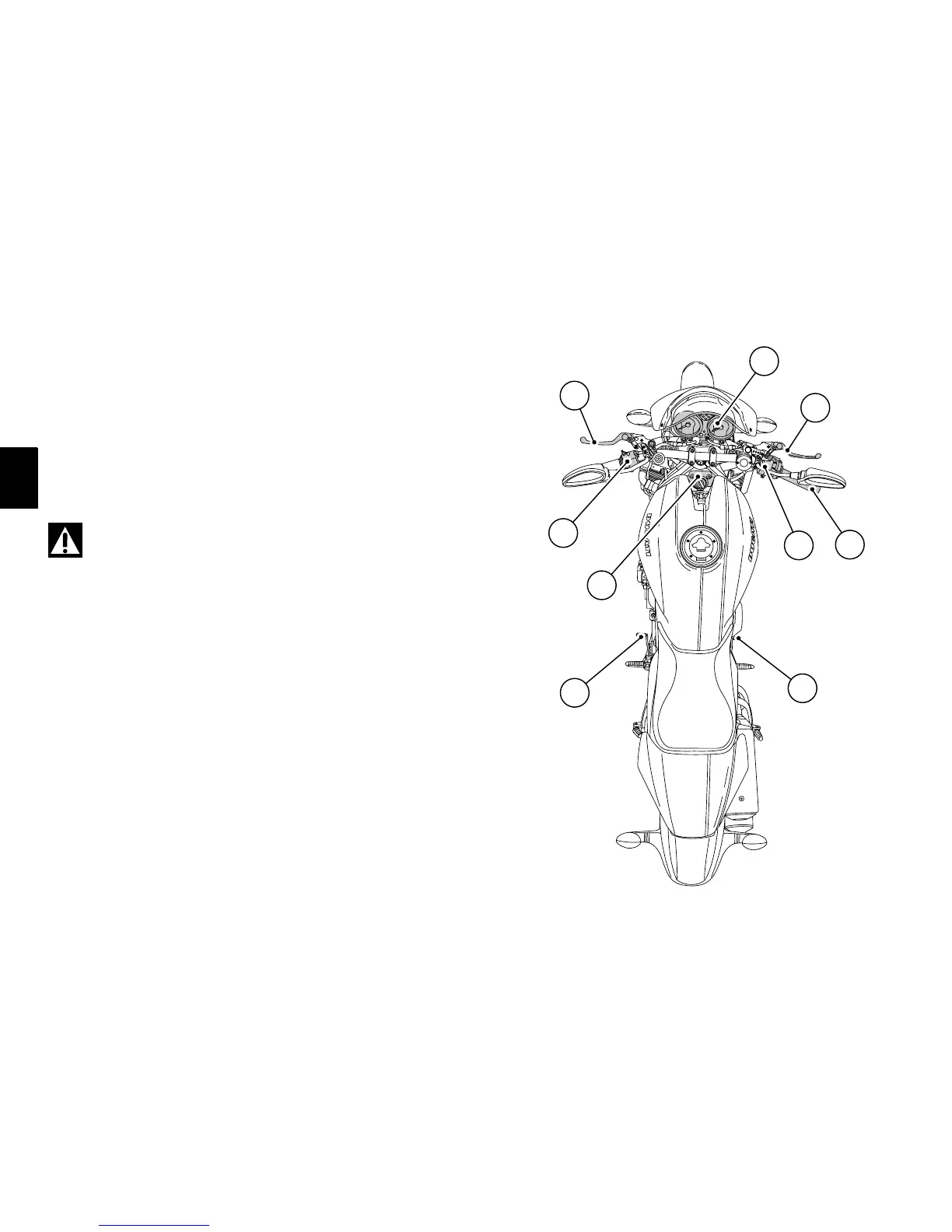

Position of the motorcycle controls (fig. 3)
1) Instrument panel.
2) Ignition switch and steering lock
3) Left-hand handlebar switch.
4) Clutch lever.
5) Right-hand handlebar switch.
6) Throttle twistgrip.
7) Front brake lever.
8) Gearchange pedal.
9) Rear brake pedal.
3
4
7
1
6
5
2
8
9
fig. 3

Ducati MONSTER S2R 1000 Specifications

General

Displacement	992 cc
Bore x Stroke	94 mm x 71.5 mm
Compression Ratio	10:1
Power	95 hp (69.9 kW) @ 8000 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	2-1-2 system with catalytic converter and lambda probe
Cooling	Air cooled
Transmission	6-speed
Frame	Tubular steel trellis frame
Front Brake	2 x 320 mm discs, 4-piston calipers
Rear Brake	245 mm disc, 2-piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Seat Height	800mm (31.5 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Final Drive	Chain
Front Suspension	Showa 43mm upside-down fork
Rear Suspension	Progressive with preload and rebound Sachs adjustable monoshock
Fuel Capacity	14 liters (3.7 gallons)
