Ducati MONSTER S2R 1000 User Manual

11
E

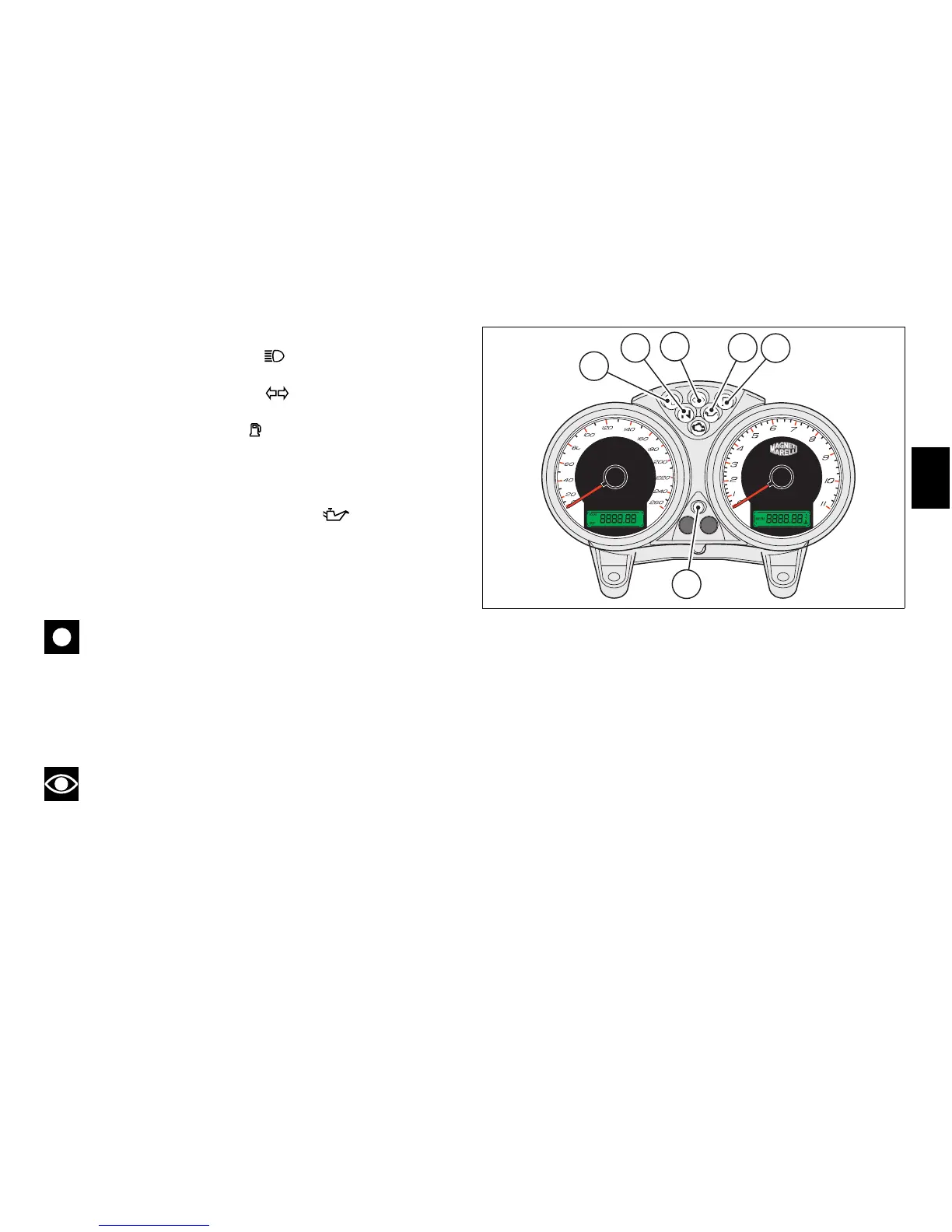

Instrument panel (fig. 4.1)
1) High beam warning light (blue).
Illuminates when the high beam headlight is on.
2) Turn signal warning light (green).
Flashes when a turn signal is on.
3) Low fuel warning light (yellow).
Illuminates when there are approximately 3 litres of fuel left
in the tank.
4) Neutral light N (green).
Illuminates when the gearbox is in neutral.
5) Engine oil pressure warning light (red).
Illuminates when engine oil pressure is too low. This light
comes on when the ignition is switched to ON and should
go out a few seconds after the engine starts.
It may come on briefly if the engine is very hot, but should
go out again as engine speed increases.
Important
Do not use the motorcycle if this light stays on,
otherwise the engine could be damaged.
6) Amber warning light
Comes on and flashes when the motorcycle is parked
(immobilizer on); also used for immobilizer diagnostics.
Notes
When the immobilizer is activated, the light flashes
for 24 hours after which it goes off, but the immobilizer
remains active.
1
4
2
5
3
6
fig. 4.1

Ducati MONSTER S2R 1000 Specifications

General

Displacement	992 cc
Bore x Stroke	94 mm x 71.5 mm
Compression Ratio	10:1
Power	95 hp (69.9 kW) @ 8000 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	2-1-2 system with catalytic converter and lambda probe
Cooling	Air cooled
Transmission	6-speed
Frame	Tubular steel trellis frame
Front Brake	2 x 320 mm discs, 4-piston calipers
Rear Brake	245 mm disc, 2-piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Seat Height	800mm (31.5 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Final Drive	Chain
Front Suspension	Showa 43mm upside-down fork
Rear Suspension	Progressive with preload and rebound Sachs adjustable monoshock
Fuel Capacity	14 liters (3.7 gallons)
